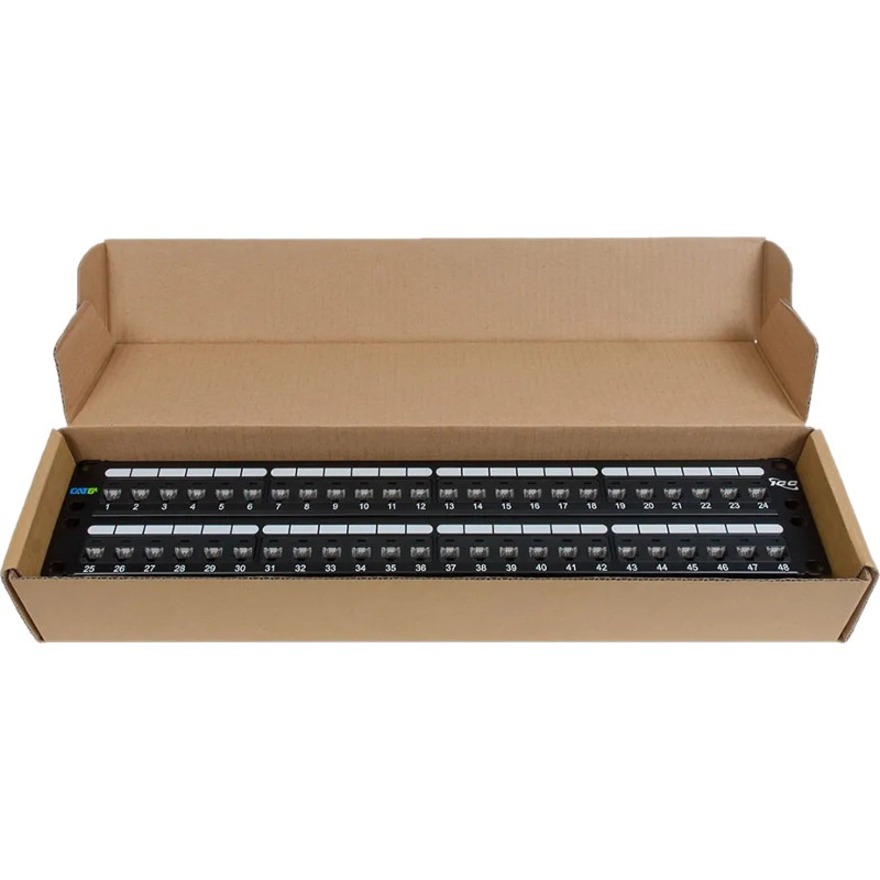

ICC ICMPP0486B Patch Panel, CAT 6A, 48-Port, 2 RMS
Mfg Part Number: ICMPP0486B , Item #: 2463737
Image may not reflect the actual item.
Price: $310.00
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Oct 28, 2026
No Sales Tax except these states
, PO and Wire.

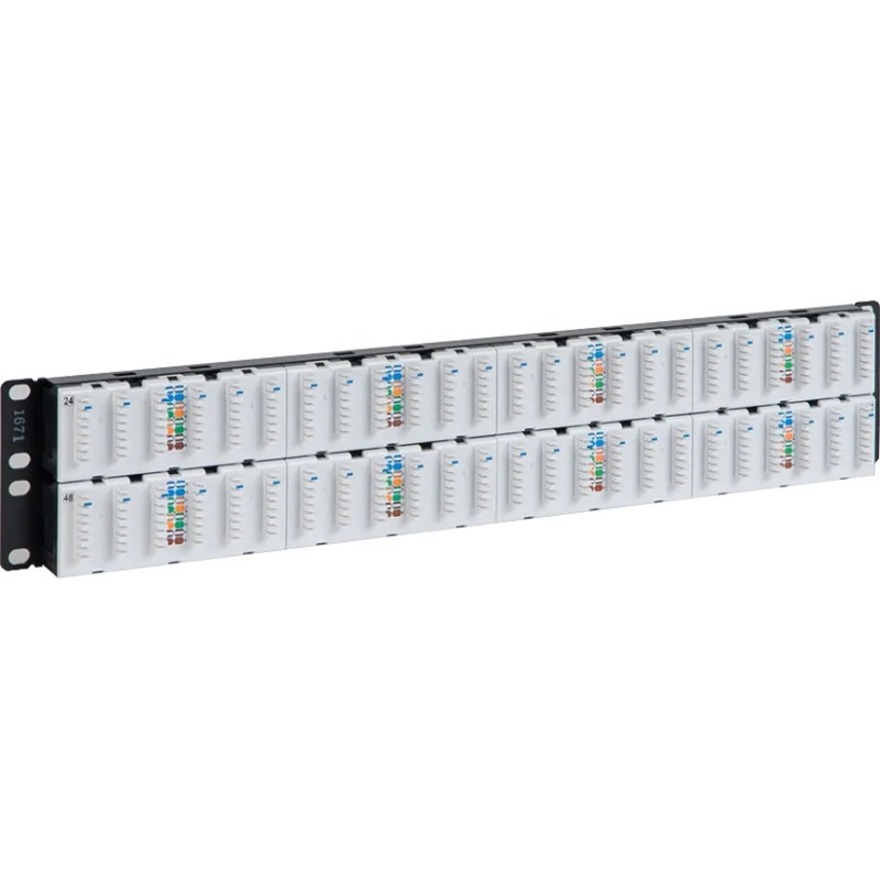

ICC's Category 6A 2U 48-port, 110-type UTP, 10G Patch Panel is component compliant to ANSI/TIA Category 6A connecting hardware requirements. The vertical 110-type insulation displacement connectors (IDCs) are designed to provide optimum permanent and channel link performance and reduce potential Alien Crosstalk (AXT). Jacks are grouped in six-port modules for quick administration and easy labeling. The high-density design occupies 2 rack mount space (RMS) and measures 19" x 3.50".
Features
- Vertical 110-Type IDC connections reduces potential Alien Crosstalk (AXT).
- Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts on each port.
- Enhanced crosstalk cancellation and reduced return loss.
- Exceeds ANSI/TIA-568 CAT 6A (10G) connecting hardware Component Rating.

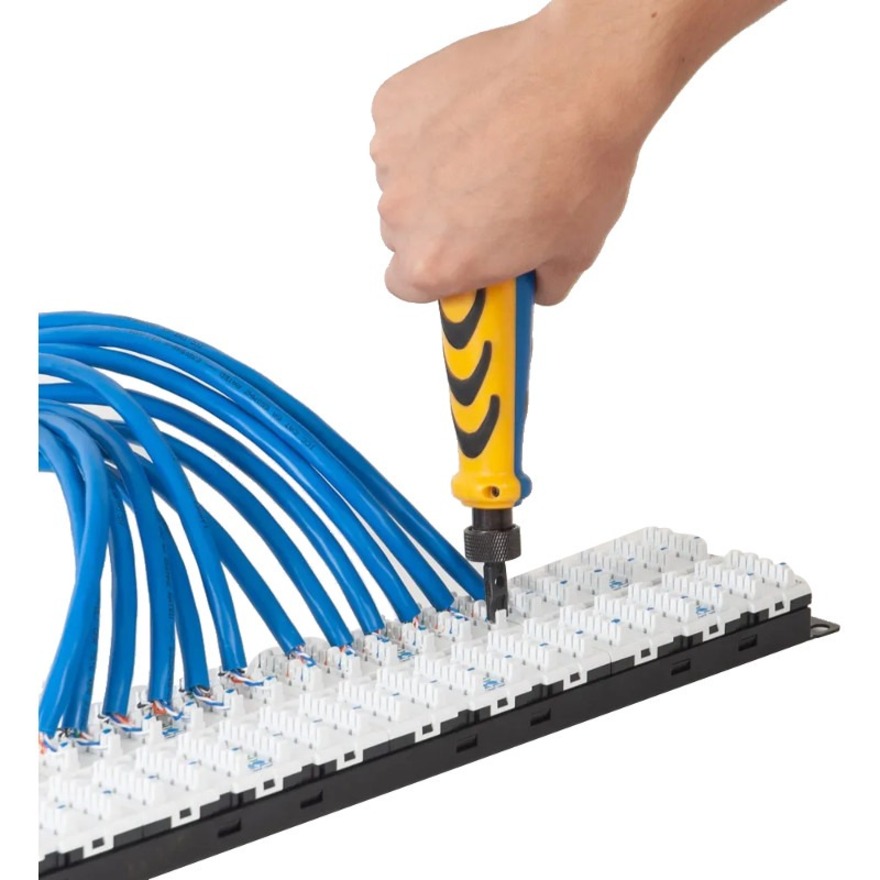

- 110-Type IDC termination help reduces installation time and improves wire retention.
- 50 micro-inch gold plating on all modular contacts to protect from corrosion.
- 2 rack mount spaces (RMS); Mounts on industry-standard 19" wide racks.
- T568A or T568B wiring schemes; not compatible with 110-type patch plugs.
- UL Listed.
Main Specification
| General Information | |
| Manufacturer | ICC |
| Manufacturer Part Number | ICMPP0486B |
| Manufacturer Website Address | http://www.icc.com |
| Brand Name | ICC |
| Product Name | CAT6A UTP Patch Panel in 110 Type with 48 Ports and 2 RMS |
| Product Type | Network Patch Panel |
| Interfaces/Ports | |
| Total Number of Ports | 48 |
| Number of Network (RJ-45) Ports | 48 |
| Physical Characteristics | |
| Product Material | Gold |
| Product Material | Zinc Alloy |
| Product Material | Phosphor Bronze |
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 2U |
| Compatible Rack Width | 19" |
| Height | 3.5" |
| Width | 19" |
| Depth | 1.3" |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 3 Year |
