ICC
ICCABR6FBL C6A, 650, FTP SLD CABLE 23G 4P CMR , BL, 1000 FT REEL
Mfg Part Number: ICCABR6FBL , Item #: 1170807
Image may not reflect the actual item.
Price: $301.90
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Oct 30, 2026
No Sales Tax except these states
, PO and Wire.

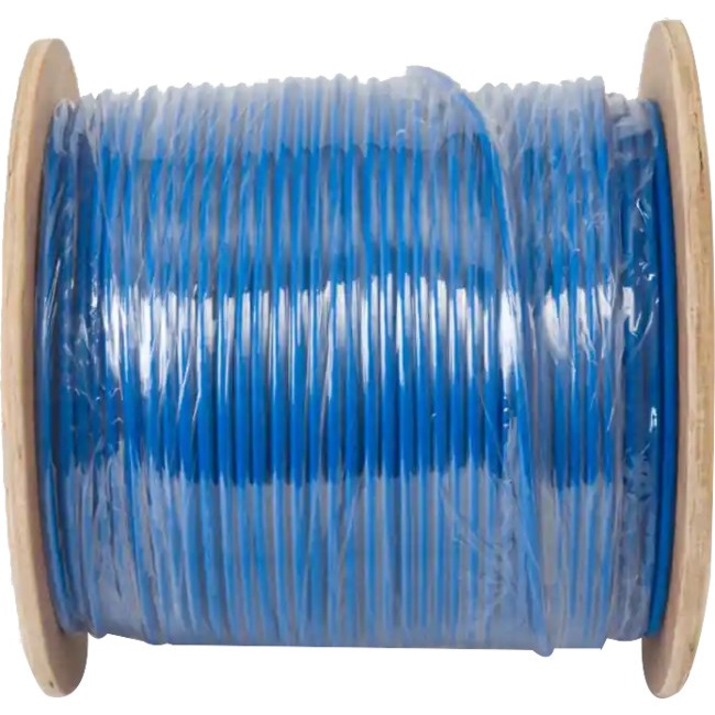

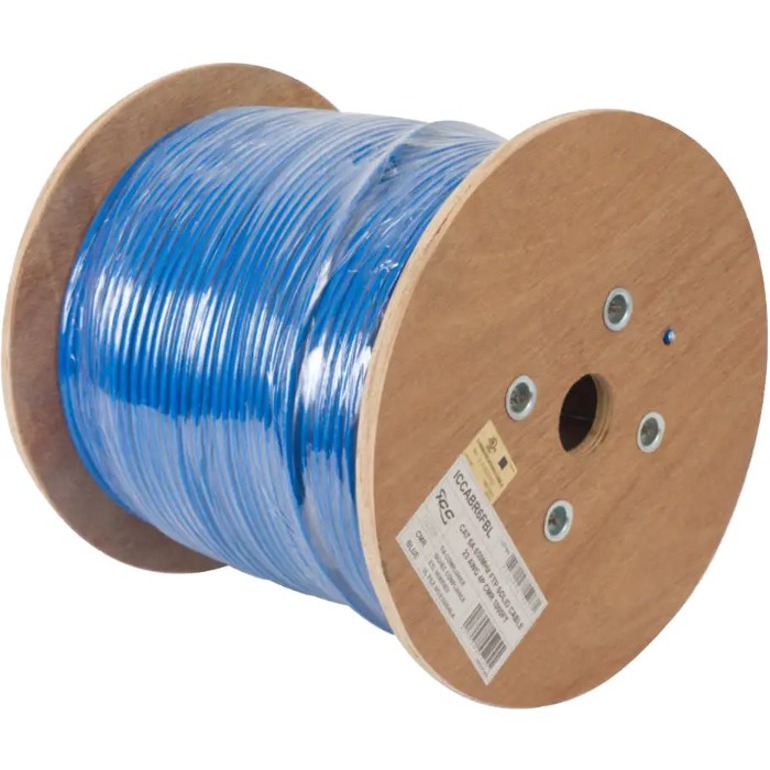

ICC's CAT6A 10Gig FTP shielded cable provides transmission performance beyond 650MHz and Alien Crosstalk requirements exceeding the industry standards and ETL Verified to TIA-568-C.2 for supporting the operation of 10Gig Ethernet applications (10GBASE-T). It is designed with unique spline design and non-concentric to minimize AXT from neighboring cables. This cabling provides support for high bandwidth applications such as data centers and other data-intensive or backbone requirements. This cable qualifies installations for the ICC Lifetime Certified Site Cabling System Limited Warranty when installed by ICC Certified installers (conditions apply). The cable comes packaged on a reel.
Main Specification
| General Information | |
| Manufacturer | ICC |
| Manufacturer Part Number | ICCABR6FBL |
| Manufacturer Website Address | http://www.icc.com |
| Brand Name | ICC |
| Product Name | Cat.6a FTP Network Cable |
| Package Type | Bulk |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6a |
| Cable Length | 1000 ft |
| Connector Type on First End | Bare Wire |
| Connector on First End Details | Bare Wire |
| Connector Type on Second End | Bare Wire |
| Connector on Second End Details | Bare Wire |
| Conductor | Bare Copper |
| Shielding | Yes |
| Jacket Type | CMR |
| Jacket Type | Riser |
| Device Supported | Network Device |
| American Wire Gauge | 23 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Number of Conductors | 8 |
| Number of Pairs | 4 |
| Features | Power-sum Attenuation To Alien Crosstalk Ratio Far End (PSAACRF) |
| Features | Power-sum Near End Crosstalk (PSNEXT) |
| Features | Minimized Near-End Crosstalk (NEXT) |
| Features | Alien Near End Crosstalk (ANEXT) |
| Features | Bendable |
| Features | EMI Protection |
| Features | Alien Cross Talk (AXT) |
| Features | Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF) |
| Features | Power-sum Alien Near End Crosstalk (PSANEXT) |
| Physical Characteristics | |
| Product Color | White/Brown |
| Product Color | Brown |
| Product Color | Blue |
| Product Color | White/Orange |
| Product Color | Green |
| Product Color | White/Green |
| Product Color | White/Blue |
| Product Color | Orange |
| Color Details | Pair:
|
| Product Material | Tinned Copper |
| Product Material | Copper |
| Product Material | Polyester |
| Product Material | Bare Copper |
| Product Material | Annealed Copper |
| Insulation Material | Polyethylene |
| Insulation Material | Foam Polyethlene (FPE) |
| Shielding Material | Aluminum Mylar |
| Shielding Material | Foil |
| Shielding Material | Polyester |
| Shielding Material | Aluminum |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Material Details | Copper - Cable Bare Copper - Conductpr Tinned Copper - Drain Wire Polyester - Rip Cord Polyethylene - X Seperator |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
