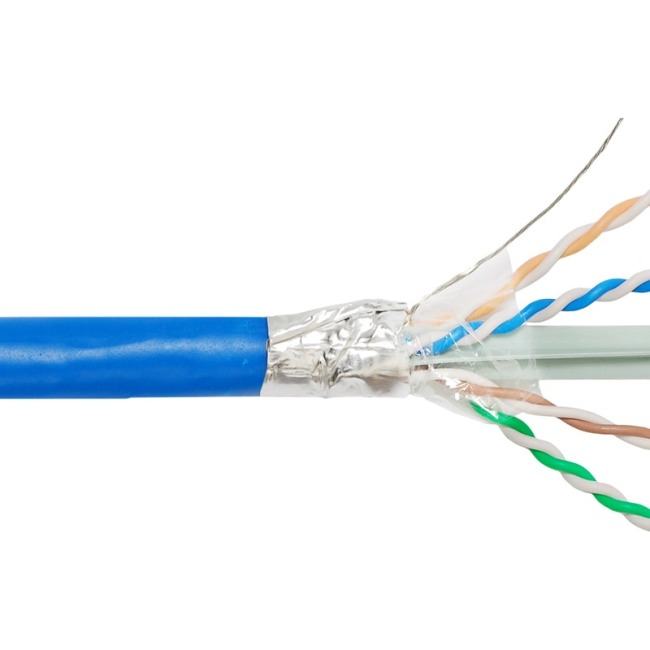

ICC CAT 6A 10Gig FTP shielded cable provides transmission performance beyond 650MHz and Alien Crosstalk (AXT) requirements exceeding the industry standards and ETL Verified to TIA-568-C.2 for supporting the operation of 10Gig Ethernet applications (10GBASE-T). It is designed with unique spline design and non-concentric to minimize AXT from neighboring cables. This cabling provides support for high bandwidth applications such as data centers and other data intensive or backbone requirements. This cable qualifies installations for the ICC Lifetime Performance Limited Warranty when installed by ICC Certified Elite installers (conditions apply).
Feature
INDUSTRY STANDARDS
? ETL Verified to TIA-568-C.2
? UL Type CMR for non-plenum
? UL Type CMP for plenum
? FT4
? UL 444
APPLICATIONS
? 10 Base-T
? 100Base-T (IEEE 802.3u)
? 1000 Base-T
? High Definition Video
? Digital Broadcast Video/IP Video/VoIP
? ISDN/ADSL
? 622Mbps ATM
? Conductor: Solid Bare Copper
? Insulation: FEP
? Jacket: Flame Retardant PVC
? Mylar shielding for EMI (electro magnetic interference) protection
? Drain Wire for grounding to CAT 6A FTP Shielded connector (IC1078S6A0)<
? Cable spine separator X
? Component: 4 twisted pair
? Outer Dia.(in): 0.34"
? Sequential footage marking for easy usage tracking.
? Packaged on a reel (Size: 17.3W X 13.0H
? Weight: 50.2 LBS
? Temperature Rating (°F)
? Installation temperature: 32 to 140 Fahrenheit (°F)
? Operating temperature: -4 to 167 Fahrenheit (°F)
| General Information | |
| Manufacturer | ICC |
| Manufacturer Part Number | ICCABP6FBL |
| Manufacturer Website Address | http://www.icc.com |
| Brand Name | ICC |
| Product Model | ICCABP6FBL |
| Product Name | Cat.6a FTP Cable |
| Packing | Reel Box |
| Package Type | Bulk |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6a |
| Cable Length | 1000 ft |
| Connector Type on First End | Bare Wire |
| Connector on First End Details | Bare Wire |
| Connector Type on Second End | Bare Wire |
| Connector on Second End Details | Bare Wire |
| Conductor | Copper |
| Shielding | Yes |
| Jacket Type | CMP |
| Device Supported | Network Device |
| Features | Flame Retardant |
| Physical Characteristics | |
| Product Color | Blue |
| Product Material | Copper |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 50.20 lb |
| Miscellaneous | |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 3 Year |
