Description
ICC's CAT6A foiled twisted pair (U/FTP) patch cords exceed all performance requirements up to 500 MHz, and is ETL verified to ANSI/TIA-568-C.2 and UL listed. All ICC's CAT6A patch cords are backward compatible with Category 5e and 6 cabling systems.
Features
- Component-rated CAT6A patch cords assuring high signal quality, minimal crosstalk and return loss, and minimizing alien crosstalk.
- Creates a high-speed CAT6A Connection for cross and direct connects by patching cables runs to subsystems and equipment.
- Designed with a low-profile, snagless boots for high-density applications.
- Exceeds ANSI/TIA-568-C Category 6A connecting requirements.
- Supports 10GbE bandwidth.
- Shielded construction reduces EMI/RFI interference.
- Available in 3, 5, 7, 10, 15, and 25 feet
- Available in blue, white, black and yellow.
- Compatible with lower Category 6 and 5e for U/FTP or Shielded cabling systems.
- Same U/FTP patch cord for U/FTP or shielded applications.
Main Specification
| General Information | |
| Manufacturer | ICC |
| Manufacturer Part Number | ICPCSG03WH |
| Manufacturer Website Address | http://www.icc.com |
| Brand Name | ICC |

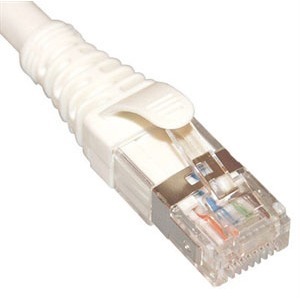

| Product Name | CAT6A U/FTP Patch Cord |
| Packaged Quantity | 1 Piece |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6a |
| Cable Characteristic | Patch Cable |
| Cable Length | 3 ft |
| Connector Type on First End | RJ-45 Network - Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Contact Plating | Gold |
| Conductor | Copper |
| Shielding | Yes |
| Jacket Type | CMR |
| Jacket Type | CMH |
| Jacket Type | CMX |
| Jacket Type | CMG |
| Jacket Type | FT4 |
| Jacket Type | CM |
| Device Supported | Network Device |
| American Wire Gauge | 26 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Snagless |
| Boot Type | Molded |
| Features | Stranded |
| Features | Minimized Near-End Crosstalk (NEXT) |
| Features | Equal Level Far End Crosstalk (ELFEXT) |
| Features | Power-sum Near End Crosstalk (PSNEXT) |
| Features | Booted |
| Features | EMI/RF Protection |
| Features | Power-sum Equal Level Far-End Crosstalk (PSELFEXT) |
| Physical Characteristics | |
| Product Color | White |
| Product Material | Bare Copper |
| Product Material | Aluminum Foil |
| Product Material | Polycarbonate |
| Product Material | PVC |
| Contact Material | Phosphor Bronze |
| Insulation Material | High-density Polyethylene (HDPE) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Material Details | PVC - Boot Bare Copper - Conductor Polycarbonate - Insulator |
| Miscellaneous | |
| Certifications & Standards |
|
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 3 Year |
