P004-002-13RA Tripp Lite Standard Computer Power Extension Cord
Mfg Part Number: P004-002-13RA , Item #: 1134203
, PO and Wire.

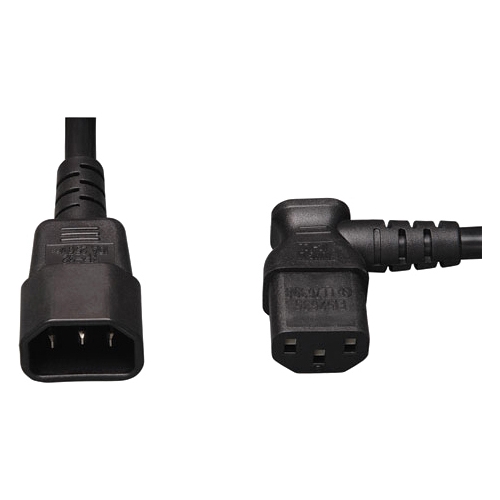

C14-to-C13 Power Cable Connects Computers, Printers, Servers and Other Equipment
This IEC-320-C14 to IEC-320-C13 cable is designed for small data center, office workstation and other lower-amp applications. This C14 male to C13 female cord can be used to power a computer, server or monitor; attach a server or drive to a UPS system or PDU; or extend an existing connection up to 2-ft. (0.61 m). The 2-ft. (0.61 m) length helps reduce cable clutter and minimize the risk of tripping.
Right-Angle C13 Plug Makes Connecting in Tight Spaces Easier
The C13 to C14 right-angle cable is easier to install in confined spaces, such as the back of a rack enclosure cabinet. When plugged in, the right-angled C13 plug guides the computer power supply cable parallel to your peripheral, allowing you to push the device up against a wall or hide it behind a desk to maximize space.
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | P004-002-13RA |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Tripp Lite series |
| Product Model | P004-002-13RA |
| Product Name | P004-002-13RA Power Extension Cable |
| Product Type | Power Extension Cord |
| Technical Information | |
| First End Connector Type | IEC 60320 C13 |
| First End Connector Detail | 1 x IEC 60320 C13 Female |
| Second End Connector Type | IEC 60320 C14 |
| Second End Connector Detail | 1 x IEC 60320 C14 Male |
| Device Supported | Server |
| Device Supported | Monitor |
| Device Supported | Printer |
| Device Supported | Computer |
| Power Description | |
| Voltage Rating | 230 V AC |
| Voltage Rating | 120 V AC |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Current Rating | 10 A |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Cord Length | 2 ft |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Conductor Color Coding | - |
| Current Rating | 10 A |
| Jacket Color | Black |
| Length | - |
| Plug | C14 |
| Power Rating | 2500 W |
| Receptacle | C13 Angled |
| Shielding | - |
| Voltage Rating | 250 V |
| Wire Gauge - AWG | 18 |
