TRIPP LITE

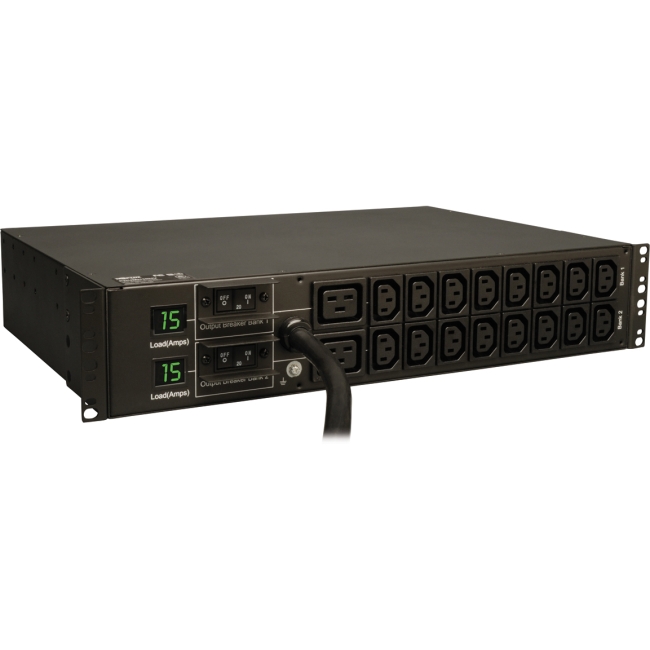

Tripp Lite Metered PDUMH30HV 18-Outlets PDU TAA
Mfg Part Number: PDUMH30HV , Item #: 954624
Image may not reflect the actual item.
Price: $381.62
Quantity:
In Stock: 163
Last Updated: Jun 23, 2025
No Sales Tax except these states
, PO and Wire.
PDUMH30HV horizontal 2U metered rack PDU supports 30A maximum capacity at 208/240V (agency derated to 24A continuous). Includes 12 ft / 3.6m attached line cord with L6-30P input plug and 18 output receptacles (16 C13, 2 C19). Outlets are arranged in two separately breakered 9 outlet load banks. Set of two visual current meters tracks the output current of each load bank separately. Supports 2U rackmount installation in 19 inch racks. Included cord retention brackets keeps vital network equipment plugged in and continuously powered.
Main Specification
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMH30HV |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Tripp Lite by Eaton |
| Product Series | Metered |
| Product Model | PDUMH30HV |
| Product Name | Metered PDUMH30HV 18-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Detail | 2 x IEC 60320 C19 |
| Receptacle Detail | 16 x IEC 60320 C13 |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 208 V AC - 240 V AC |
| Output Voltage | 240 V AC |
| Output Voltage | 208 V AC |
| Physical Characteristics | |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 2U |
| Height | 3.5" |
| Width | 17.5" |
| Depth | 12.5" |
| Weight (Approximate) | 13.70 lb |
| Miscellaneous | |
| Package Contents |
|
| Additional Information | TAA Compliant |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
