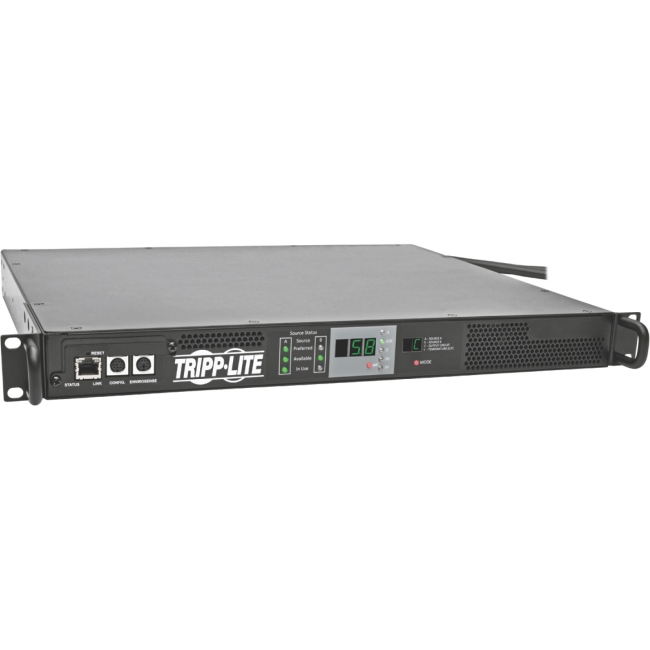

PDUMNH30HVAT Tripp Lite PDU Monitored Horizontal 5.8kw 208/240V L6-30R 2 L6-30P ATS 1URM

The PDUMNH30HVAT 5.8kW Single-Phase 208/240V ATS/Monitored PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and features one L6-30R outlet-perfect for connecting a single device or a 0U 208/240V PDU with an L6-30P plug.
Dual 10-foot input cords with L6-30P plugs connect to separate primary and secondary single-phase power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Automated alerts help prevent accidental overloads, power loss and downtime. Digital display indicates power availability, voltage, source A/B input status, output load and power factor, as well as temperature and humidity conditions with the optional ENVIROSENSE module (sold separately).

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	PDUMNH30HVAT
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Series	Monitored
Product Model	PDUMNH30HVAT
Product Name	PDUMNH30HVAT 5.8kW Single-Phase 208/240V ATS/Monitored PDU
Product Type	PDU
Technical Information
PDU Type	Monitored
Phase	Single Phase
Plug/Connector Type	NEMA L6-30P
Plug/Connector Detail	2 x NEMA L6-30P
Receptacle Type	NEMA L6-30R
Receptacle Detail	1 x NEMA L6-30R
Power Description
Input Voltage	230 V AC
Output Voltage	230 V AC
Power Rating (Watt)	5800 W
Input Current	30 A
Management
Management	Protocols: HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 Telnet SSH FTP DHCP BOOTP NTP
Physical Characteristics
Mount Type	Rack-mountable
Rack Height	1U
Height	1.7"
Width	16.9"
Depth	14"
Weight (Approximate)	15.37 lb
Miscellaneous
Package Contents	PDUMNH30HVAT 5.8kW Single-Phase 208/240V ATS/Monitored PDU Rack-Mounting Brackets Owner's Manual
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	2 Year
