Tripp Lite PDUMV30HV PDU Metered 208V - 240V 30A 30 Outlet
Mfg Part Number: PDUMV30HV , Item #: 786146
, PO and Wire.

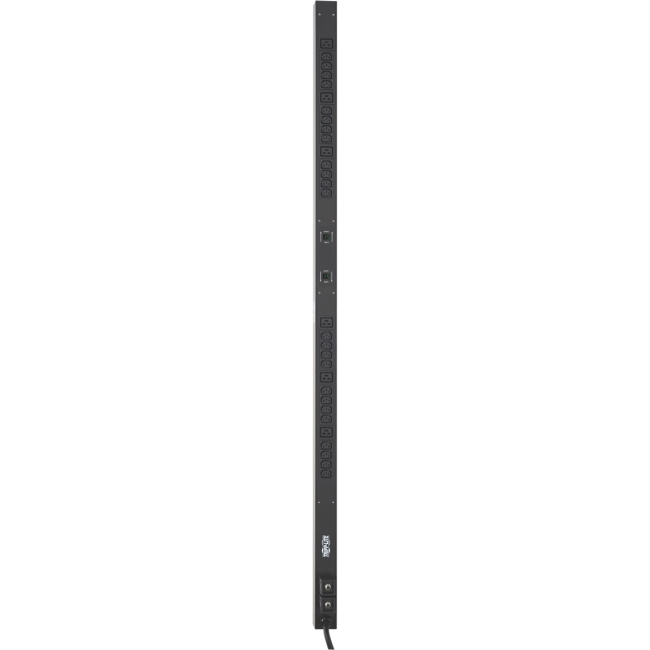

PDUMV30HV 63.75 in. vertical 0U metered rack PDU supports 30A maximum capacity at 208/240V. Includes 10 ft attached line cord with L6-30P input plug. 24 C13 and 6 C19 outlets support up to 30 directly connected pieces of networking equipment. Outlets are arranged in two separately metered and breakered 15A load banks (each with 3 C19 and 12 C13 outlets). Set of 2 built-in 2 character displays offer continuous information on PDU power consumption for each of the two built-in loading banks. Each built-in, easy to read, two-character LED display offers continuous PDU current monitoring data in one-amp increments. Tooless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered.
| General Information | |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDUMV30HV |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Model | PDUMV30HV |
| Product Name | PDUMV30HV PDU Metered 208V - 240V 30A 30 Outlet |
| Product Type | PDU |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 24 x IEC 60320 C13 |
| Receptacle Detail | 6 x IEC 60320 C19 |
| Protection Type | Short Circuit Protection |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 208 V AC - 240 V AC |
| Output Voltage | 240 V AC |
| Output Voltage | 208 V AC |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Wall-mountable |
| Mount Type | Rack-mountable |
| Height | 63.8" |
| Width | 2.3" |
| Depth | 3.8" |
| Weight (Approximate) | 8 lb |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Product | - |
| Number of Outlets | - |
| Surge Energy Rating | - |
| Data Line Protection | - |
| Cord Length | - |
| Mounting Style | - |
| Output Voltage | - |
| Current Rating | - |
