Single-Phase PDU Distributes and Monitors Network-Grade Power in Real Time

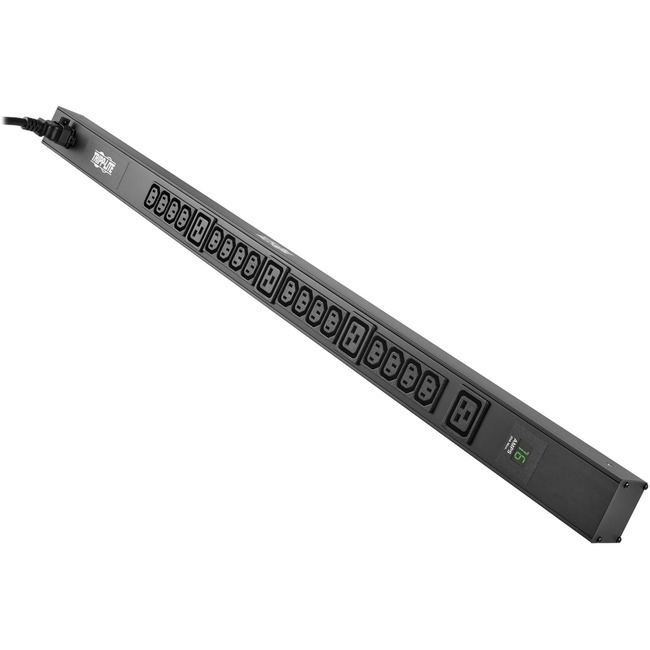

This metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMV20HV-36 features 16 C13 and four C19 200-240V outlets for connecting equipment. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged. The switchless design helps prevent an accidental shutdown, which could lead to costly downtime.
Digital Load Meter Helps Prevent Potentially Expensive Overloads

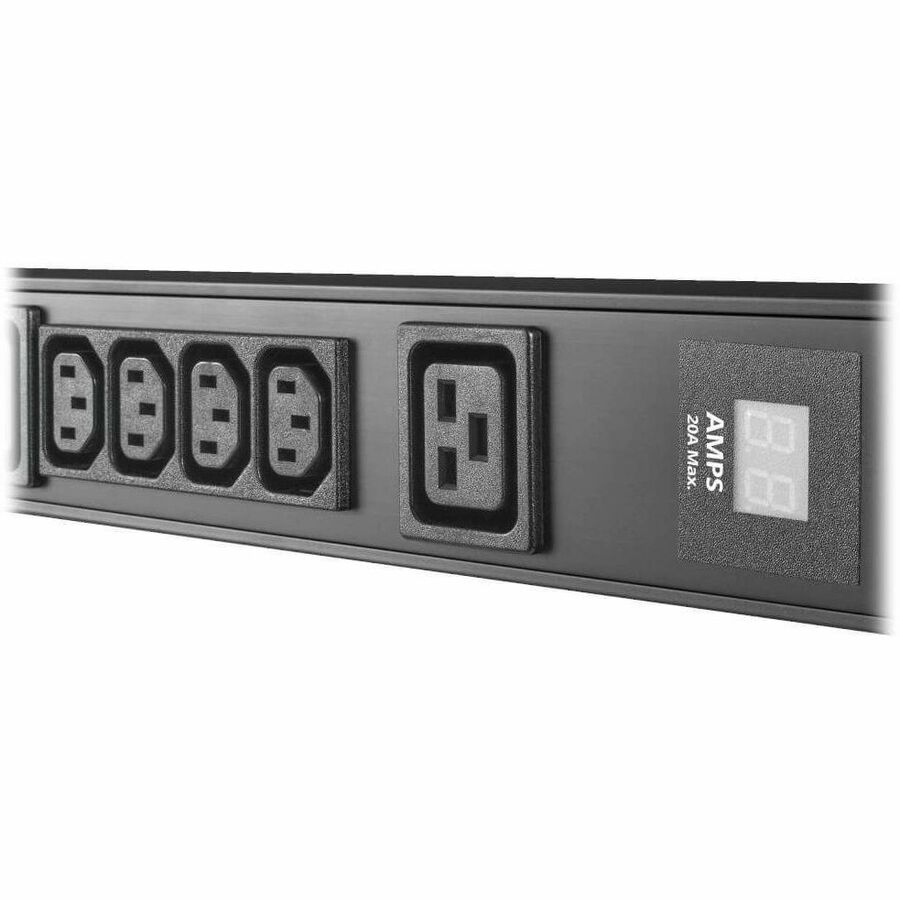

A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low.
Versatile Installation Options Give You Plenty of Choices

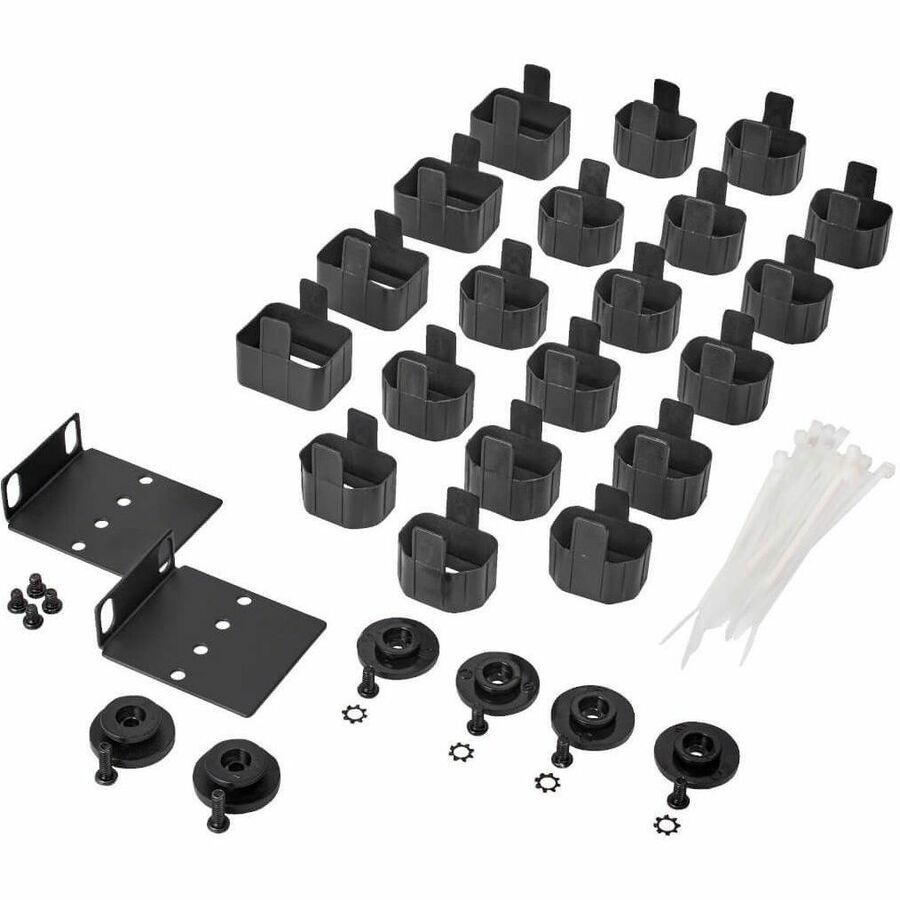

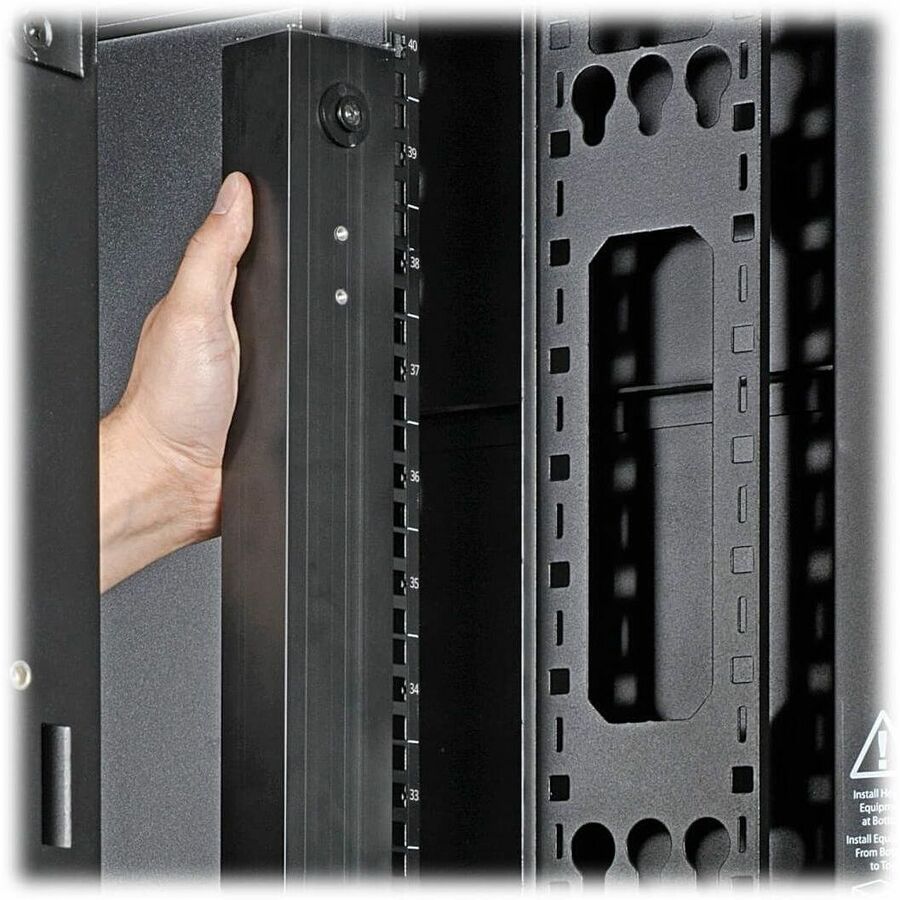

The 40-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting brackets with user-supplied hardware. You may also use the brackets to secure the PDU to the underside of a counter with the addition of two user-supplied screws. Bolt-down retention brackets keep power cords organized and your rack free of clutter.
Compatible with a Variety of Input Cords to Fit Your Facility's Power Source
The PDU's C20 inlet accepts a variety of 16A international cordsets. An included 10-ft. (3.05 m) cord with NEMA L6-20P input plug connects to an AC power source, generator or protected UPS system to distribute power to connected loads.
General Information | |
Manufacturer | Tripp Lite by Eaton |
Manufacturer Part Number | PDUMV20HV-36 |
Manufacturer Website Address | https://tripplite.eaton.com/ |
Brand Name | Tripp Lite by Eaton |
Product Model | PDUMV20HV-36 |
Product Name | PDUMV20HV-36 20-Outlets PDU |
Product Type | PDU |
Technical Information | |
PDU Type | Metered |
Phase | Single Phase |
Plug/Connector Type | IEC 60320 C20 |
Plug/Connector Type | NEMA L6-20P |
Receptacle Type | IEC 60320 C19 |
Receptacle Type | IEC 60320 C13 |
Receptacle Detail | 4 x IEC 60320 C19 |
Receptacle Detail | 16 x IEC 60320 C13 |
Protection Type | Circuit Protection |
Protection Type | Accidental Power Shutdown |
Protection Type | Overload Protection |
Power Description | |
Input Voltage | 230 V AC |
Output Voltage | 208 V AC |
Output Voltage | 230 V AC |
Output Voltage | 200 V AC |
Output Voltage | 240 V AC |
Output Voltage | 220 V AC |
Power Rating (Watt) | 3840 W |
Input Current | 20 A |
Physical Characteristics | |
Mounting Orientation | Vertical/Toolless |
Mount Type | Rack-mountable |
Mount Type | Wall-mountable |
Placement | Under-counter |
Rack Height | 0U |
Cord Length | 10 ft |
Height | 39.8" |
Width | 2.3" |
Depth | 3.8" |
Weight (Approximate) | 5.20 lb |
Miscellaneous | |
Package Contents |
|
Environmentally Friendly | Yes |
Country of Origin | China |
Warranty | |
Limited Warranty | 2 Year |
