PDU1230 Tripp Lite PDU Basic 208V / 240V 30A 20 Outlet 15 ft Cord

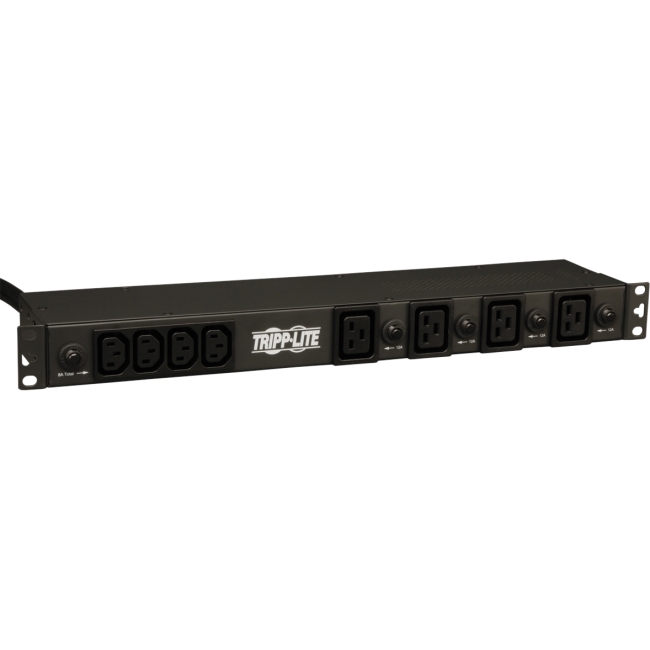

Tripp Lite's PDU1230 offers 208/240V power distribution with L6-30P input plug, 15-foot cord and 20 total output receptacles. Features 4 front-panel C19 outlets, each protected by separate 15A circuit breakers, 4 front-panel C13 outlets and 12 rear-panel C13 outlets protected in banks of 4 by 4 separate 10A circuit breakers. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19-inch rack, with the potential for 0U vertical mounting in the cable area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 8 front-facing and 12 rear-facing outlets measures only 5.2 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDU1230 ideal for distributing alternate waveform UPS or generator power in rack enclosures.

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	PDU1230
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite by Eaton
Product Model	PDU1230
Product Name	PDU1230 PDU Basic 208V / 240V 30A 20 Outlet
Product Type	PDU
Technical Information
PDU Type	Basic
Plug/Connector Type	NEMA L6-30P
Receptacle Detail	20
Power Description
Input Voltage	230 V AC
Input Voltage Range	208 V AC - 240 V AC
Output Voltage	208 V AC
Output Voltage	240 V AC
Power Rating (VA)	4990 VA
Physical Characteristics
Mounting Orientation	Vertical
Mount Type	Rack-mountable
Rack Height	1U
Height	1.8"
Width	17.5"
Depth	5.2"
Weight (Approximate)	7.50 lb
Miscellaneous
Package Contents	PDU1230 PDU Basic 208V / 240V 30A 20 Outlet Instruction Manual with Warranty Information
Additional Information	Output Receptacles: 4 x C19 16 x C13
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	5 Year

General Information
Product	-
Number of Outlets	-
Surge Energy Rating	-
Data Line Protection	-
Cord Length	-
Mounting Style	-
Output Voltage	-
Current Rating	-

Tripp Lite's PDU1230 offers 208/240V power distribution with L6-30P input plug, 15-foot cord and 18 total output receptacles. Features 2 front-panel C19 outlets, each protected by separate 15A circuit breakers, 4 front-panel C13 outlets and 12 rear-panel C13 outlets protected in banks of 4 by 4 separate 10A circuit breakers. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19-inch rack, with the potential for 0U vertical mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 6 front-facing and 12 rear-facing outlets measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDU1230 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes grounding lug and rugged all-metal case design.

PLUG / OUTLETS: Input: NEMA L6-30P / Output: 2 C19, 4 C13 (front) and 12 C13 (rear)

ELECTRICAL: 208/240V AC, 50/60Hz (Requires NEMA L6-30R wall receptacle)

FORMAT: Supports 19-in. rackmount (1U/0U), wallmount, under-counter and more

• Corded AC power distribution unit with L6-30P input plug, 2 C19 outlets, 4 C13 outlets (front) and 12 C13 outlets (rear)


• Versatile all-metal cabinet with detachable mounting flanges allows wallmount, under-counter and 19-inch rackmount mounting in both 1U or 0U formats


• Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes, including zero-U rackmount capability in the cable management area or other available space within a rack enclosure


• Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment


• Attractive all-metal housing measures only 4.5 inches in depth


• Switch-free design prevents the potential for accidental shutoff of connected loads


• 6 built-in circuit breakers: 2 15A breakers cover 2 C19 outlets; 4 10A breakers cover remaining C13 outlets in banks of 4


• 208V AC, 50/60Hz electrical compatibility
