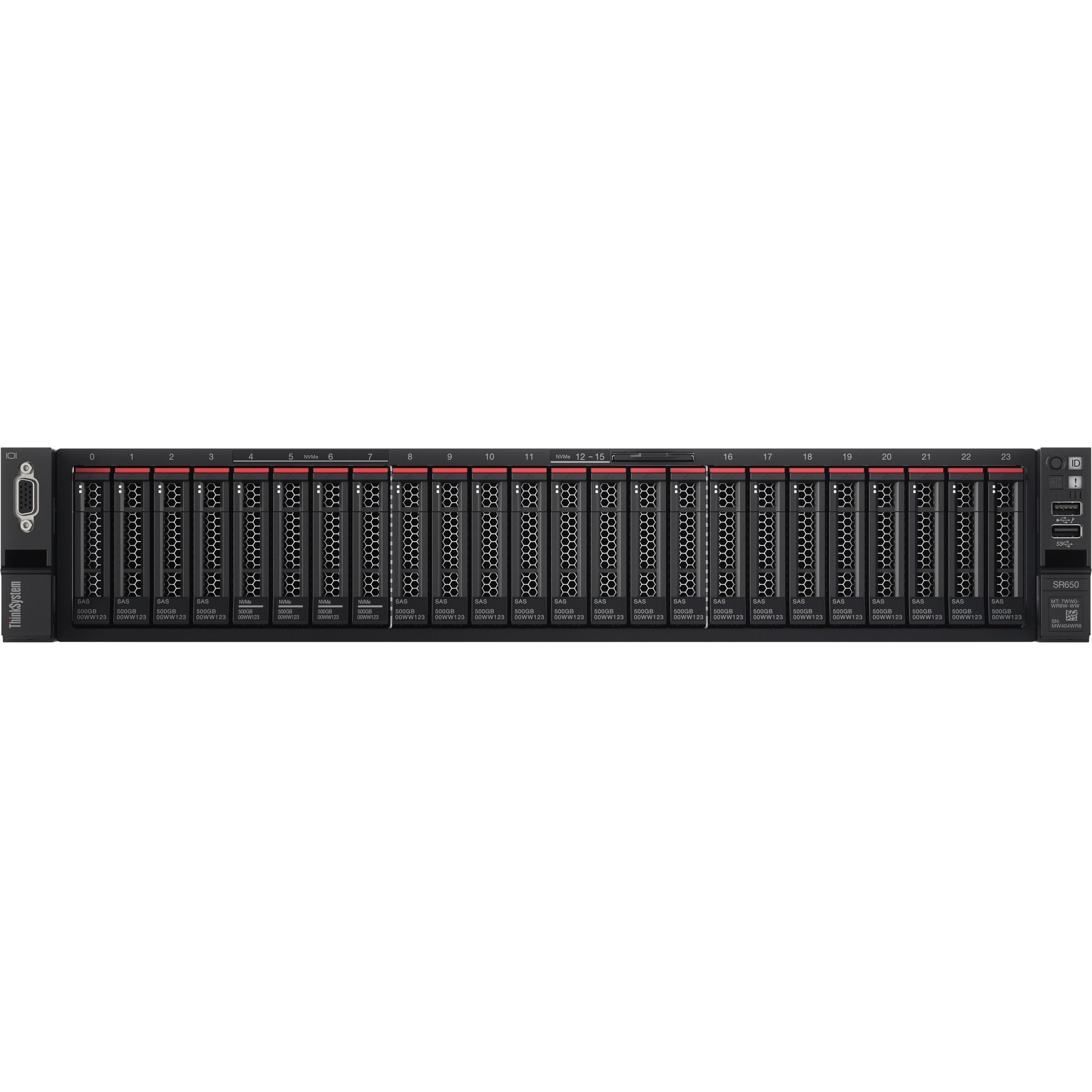

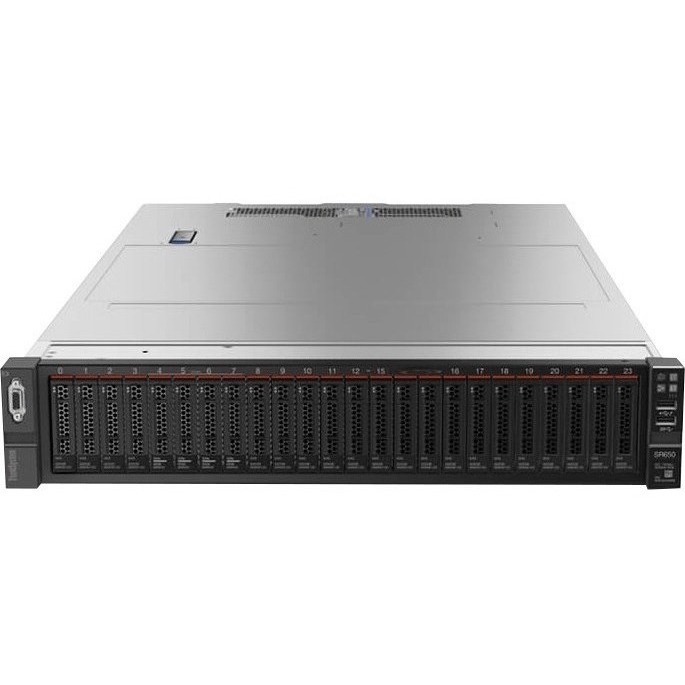

Lenovo ThinkSystem SR650 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), enterprise applications, collaboration/email, and business analytics and big data.
| General Information | |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7X06A0N9NA |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Brand Name | Lenovo |
| Product Line | ThinkSystem |
| Product Series | SR650 |
| Product Model | 7X06A0N9NA |
| Product Name | ThinkSystem SR650 7X06A0N9NA Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Processor Type | Xeon Silver |
| Processor Generation | 2nd Gen |
| Processor Model | 4214 |
| Processor Core | Dodeca-core (12 Core) |
| Processor Speed | 2.20 GHz |
| Cache | 16.50 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C624 |
| Memory | |
| Standard Memory | 192 GB |
| Maximum Memory Supported | 3 TB |
| Memory Technology | TruDDR4 |
| Memory Clock Speed | 2.93 GHz |
| Error Checking | ECC |
| Total Number of Memory Slots | 24 |
| Number of Occupied Memory Slots | 6 |
| Intel Optane Memory Ready | Yes |
| Storage | |
| Total Hard Drive Capacity | No |
| Number of Solid State Drives | 4 |
| Total Solid State Drive Capacity | 6.50 TB |
| Solid State Drive Interface | 12Gb/s SAS |
| Solid State Drive Configuration | 2 x 128GB |
| Solid State Drive Configuration | 2 x 3.2TB |
| Optical Drive Type | No |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| Controller Model | 930-16i 8GB |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 |
| I/O Expansions | |
| Number of Total Expansion Bays | 12 |
| Number of 3.5" Bays | 12 |
| Number of LFF Bays | 12 |
| Total Number of Expansion Slots | 5 |
| PCI Express Details | 3x PCIe x8, 2x PCIe x16 |
| Display & Graphics | |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 3 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| VGA | Yes |
| Remote Management | Yes |
| Remote Management Controller | XClarity Controller (XCC) |
| Operating System | |
| Operating System Supported | Red Hat Enterprise Linux 8 |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP2 |
| Operating System Supported | Red Hat Enterprise Linux 7.9 |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP3 |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP1 |
| Operating System Supported | SUSE Linux Enterprise Server 12 SP4 |
| Operating System Supported | Red Hat Enterprise Linux 8.2 |
| Operating System Supported | Red Hat Enterprise Linux 8.1 |
| Operating System Supported | Windows Server 2022 |
| Operating System Supported | Red Hat Enterprise Linux 8.3 |
| Operating System Supported | Red Hat Enterprise Linux 7.8 |
| Operating System Supported | Windows Server 2016 |
| Operating System Supported | Red Hat Enterprise Linux 7.6 |
| Operating System Supported | SuSE Linux Enterprise Server 15 |
| Operating System Supported | SUSE Linux Enterprise Server 12 SP5 |
| Operating System Supported | Red Hat Enterprise Linux 7.7 |
| Operating System Supported | Red Hat Enterprise Linux 8.5 |
| Operating System Supported | Red Hat Enterprise Linux 8.4 |
| Operating System | No |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Plug/Connector Type | C13 |
| Maximum Power Supply Wattage | 750 W |
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 3.4" |
| Width | 17.5" |
| Depth | 30.1" |
| Weight (Approximate) | 70.55 lb |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 3.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
