PEPPERL+FUCHS

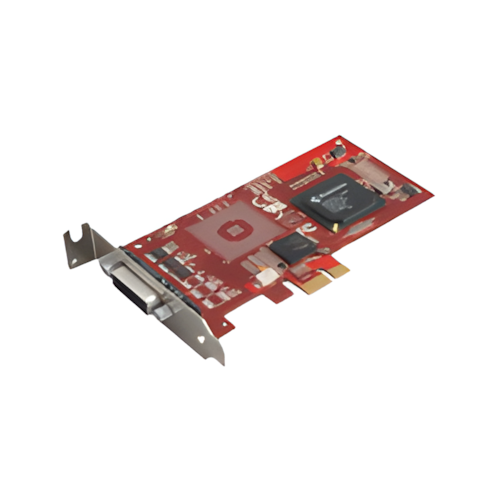

PEPPERL+FUCHS 30137-0 Comtrol RocketPort EXPRESS 16-Port Multiport Serial Adapter

Mfg Part Number:  30137-0
Image may not reflect the actual item.
Price: $699.99
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 02, 2025
No Sales Tax except these states
, PO and Wire.

This RocketPort EXPRESS card product delivers 16 ports of additional in-server serial connectivity via an external interface that is purchased separately. A data communication speed up to 460 Kbps is connected through software-selectable RS-232/422/485 ports. The card is compatible with systems that have x1, x4, x8, or x16 PCI Express expansion slots. It is designed for standard and low-profile PCs and servers. RocketPort EXPRESS products are European RoHS directive compliant.

Main Specification
General Information
Manufacturer Comtrol Corporation
Manufacturer Part Number 30137-0
Manufacturer Website Address http://www.comtrol.com
Brand Name Comtrol
Product Name RocketPort EXPRESS 16-Port Multiport Serial Adapter
Product Type Multiport Serial Adapter
Technical Information
Host Interface PCI Express x1
Maximum Data Transfer Rate 3.59 Mbit/s
Platform Supported PC
Interfaces/Ports
Ports Expandability 16 x DB-9 RS-232/422/485 - Serial, Via Cable (Optional)
Physical Characteristics
Form Factor Plug-in Card
Height 2.6"
Width 4.7"
Weight (Approximate) 9.50 oz
Miscellaneous
Environmentally Friendly Yes
Warranty
Limited Warranty 5 Year
product information
This RocketPort EXPRESS card product delivers 16 ports of additional in-server serial connectivity via an external interface that is purchased separately. A data communication speed up to 460 Kbps is connected through software-selectable RS-232/422/485 ports. The card is compatible with systems that have x1, x2, x4, x8, x12 or x16 PCI Express expansion slots. It is designed for standard and low-profile PCs and servers. RocketPort EXPRESS products are European RoHS directive compliant.
  • PCI Express Serial x1, x2, x4, x8, x12 and x16 Lane Connectivity
  • Low-profile or Standard Height Compatible
  • RS-232, RS-422, RS-485 Software-selectable Serial Ports
  • High Performance Serial Port Expansion Cards with communication Speeds up to 460 Kbps
  • RoHS Compliant
  • Microsoft Certified WHQL Drivers for Windows Vista, Windows XP, and Windows Server 2003
