STARTECH
STARTECH PEX8S1050LP 8PT PCI EXPRESS SER CARD LP PCIE SER
Mfg Part Number: PEX8S1050LP , Item #: 3725781
, PO and Wire.

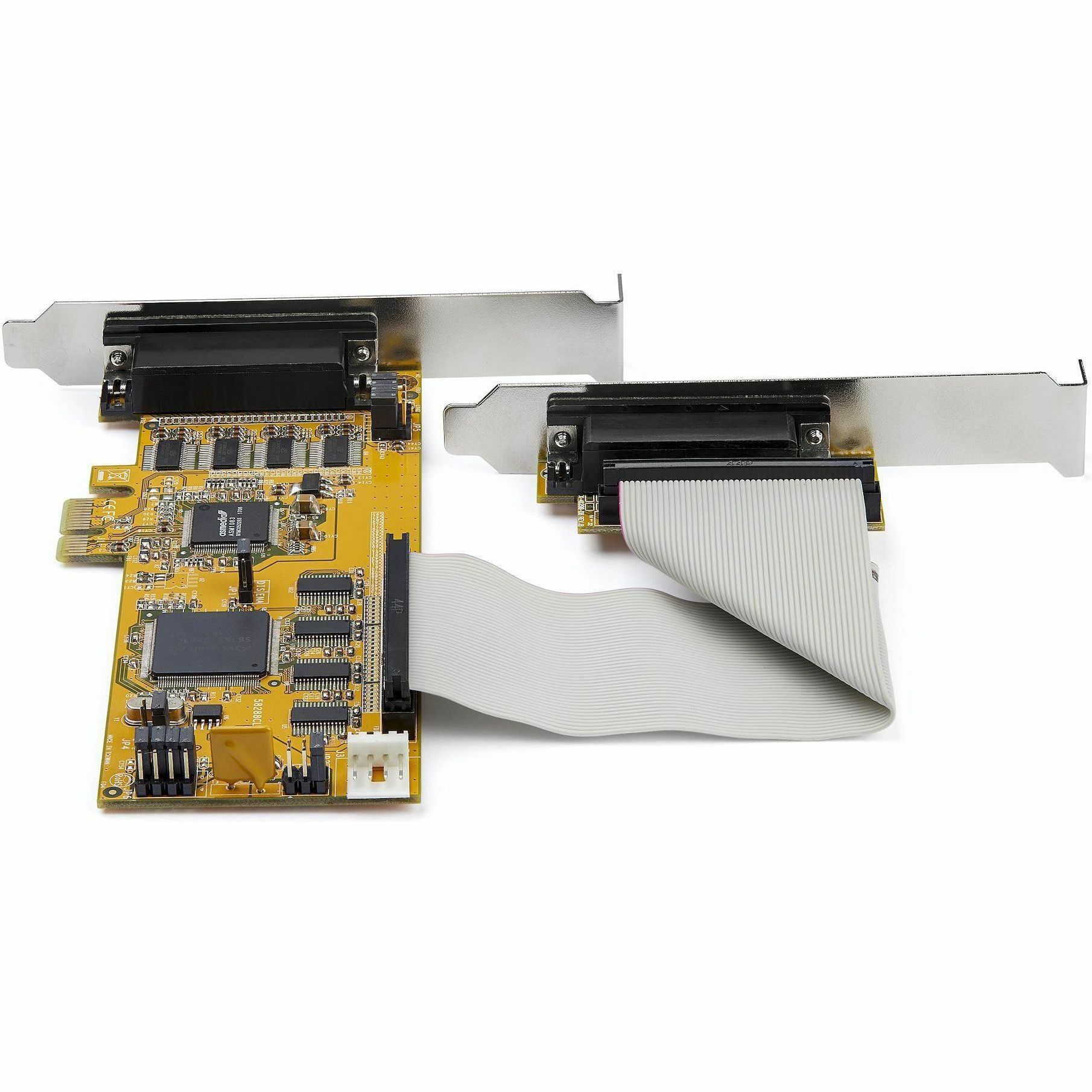

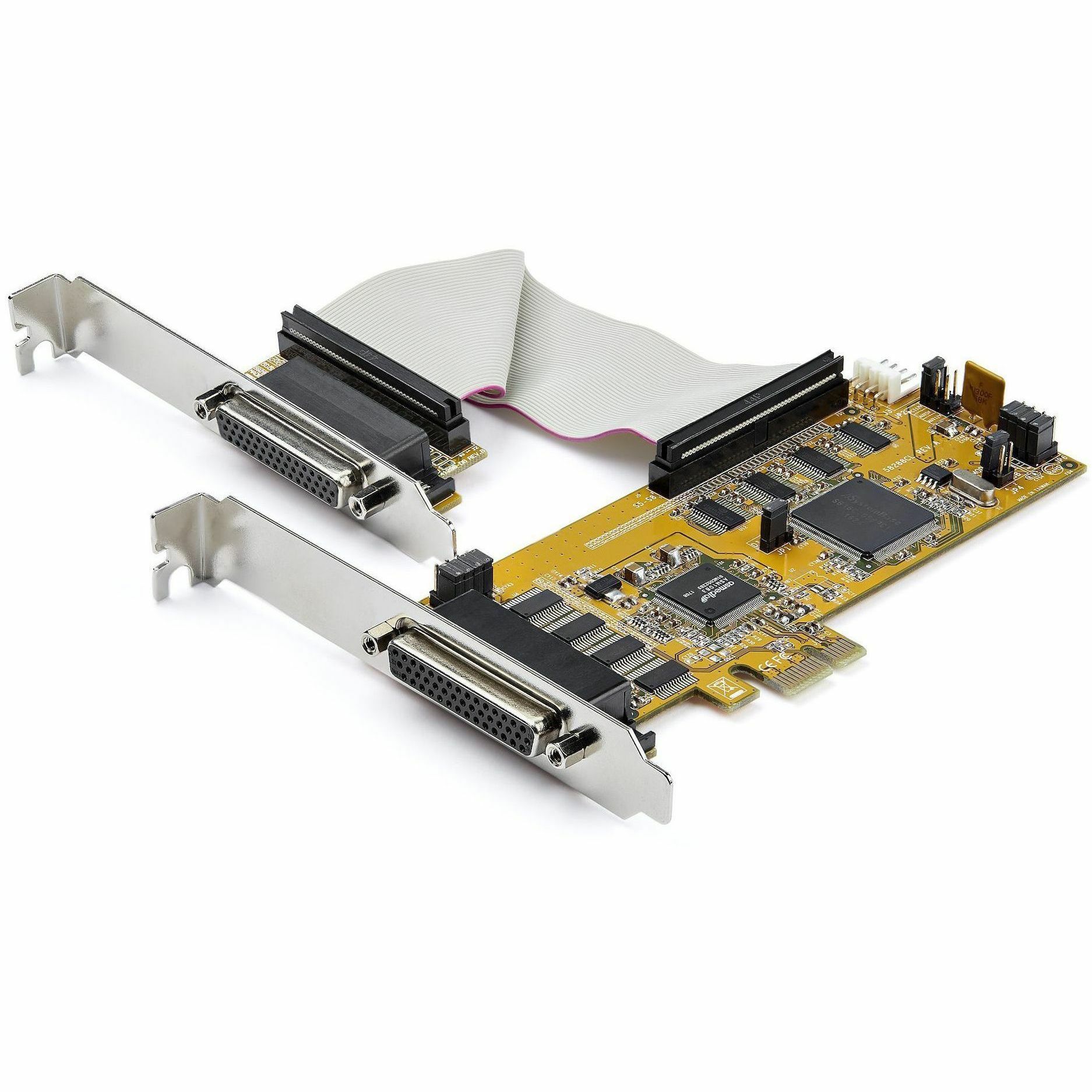

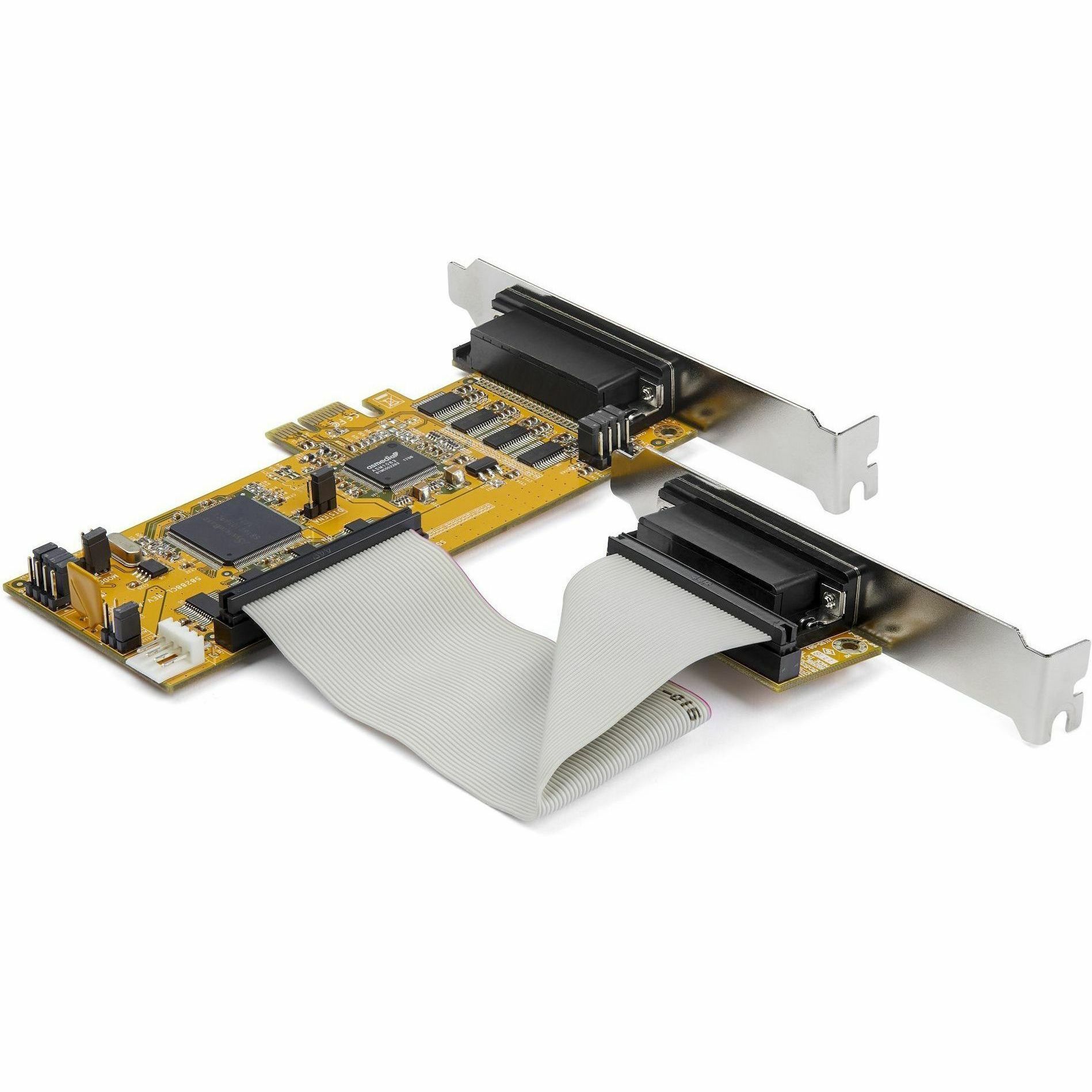

Add eight RS-232 DB9 serial ports to your desktop computer, through two PCIe expansion card slots. This PCI express serial card, with two breakout cables, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.
Connect your Peripherals with 8 Serial Ports
The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables - each with 4 DB9 connectors.
Versatile Use
The low profile PCIe serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a low-profile bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor.
Windows Only
This PCI Express card is only compatible with Windows and Windows server.
| General Information | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEX8S1050LP |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 8-Port PCI Express Serial Card with 16C1050 UART |
| Packaged Quantity | 1 Each |
| Product Type | Multiport Serial Adapter |
| Technical Information | |
| Host Interface | PCI Express x1 |
| Maximum Data Transfer Rate | 921.40 kbit/s |
| Platform Supported | Linux |
| Platform Supported | PC |
| Interfaces/Ports | |
| Number of Serial Ports | 8 |
| Ports Expandability | 8 x DB-9 - Serial, Via Cable |
| Physical Characteristics | |
| Color Family | Yellow |
| Product Color | Yellow |
| Form Factor | Plug-in Card |
| Height | 2.4" |
| Width | 0.9" |
| Weight (Approximate) | 4.09 oz |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | Lifetime |
