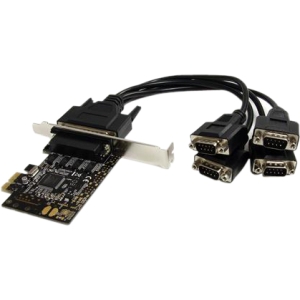

PEX4S553B StarTech.com 4 Port RS232 PCI Express Serial Card w/ Breakout Cable

Mfg Part Number:  PEX4S553B
Image may not reflect the actual item.
Price: $107.99
Quantity:
More to Come
Last Updated: May 02, 2025
No Sales Tax except these states
, PO and Wire.

The PEX4S553B 4-Port PCI Express Serial Card (with breakout cable) lets you add 4 RS232 serial ports using a single PCIe expansion slot, with an included 1-to-4 cable enabling you to add 4 serial ports to a single low profile slot.

The serial card features a native single-chip design that provides optimum reliability and speed, reducing the CPU load by up to 48% over conventional bridge-chip serial cards - a cost-effective solution for connecting legacy serial devices to PCIe-enabled computers.

The multi-port serial adapter includes both full profile and low profile/half-height brackets for compatibility with standard and small form factor computers, and is compatible with a broad range of operating systems, including Windows®, Linux, and MAC OS.

This product is a replacement for our PEX4S552B card.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

More from the Manufacturer

Main Specification
General Information
Manufacturer StarTech.com
Manufacturer Part Number PEX4S553B
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name 4 Port RS232 PCI Express Serial Card w/ Breakout Cable
Packaged Quantity 1 Each
Product Type Multiport Serial Adapter
Technical Information
Host Interface PCI Express x1
Maximum Data Transfer Rate 1.95 Mbit/s
Platform Supported PC
Platform Supported Mac
Platform Supported Linux
Interfaces/Ports
Ports Expandability 4 x DB-9 RS-232 - Serial, Via Cable
Physical Characteristics
Form Factor Plug-in Card
Height 2.7"
Width 0.5"
Weight (Approximate) 8.40 oz
Miscellaneous
Package Contents
  • 4 Port RS232 PCI Express Serial Card w/ Breakout Cable
  • 1 x DB9 Breakout Cable
  • 1 x Full Profile Bracket
  • 1 x Driver CD
  • 1 x Instruction Manual
System Requirements

OS Compatibility:

  • Windows® DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10
  • Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
  • Mac OS® 10.4 to 10.10
  • Linux 3.5.x to 4.11.x LTS Versions Only
Country of Origin China
TAA Compliant Yes
Environmentally Friendly Yes
Warranty
Limited Warranty Lifetime
