TP LINK

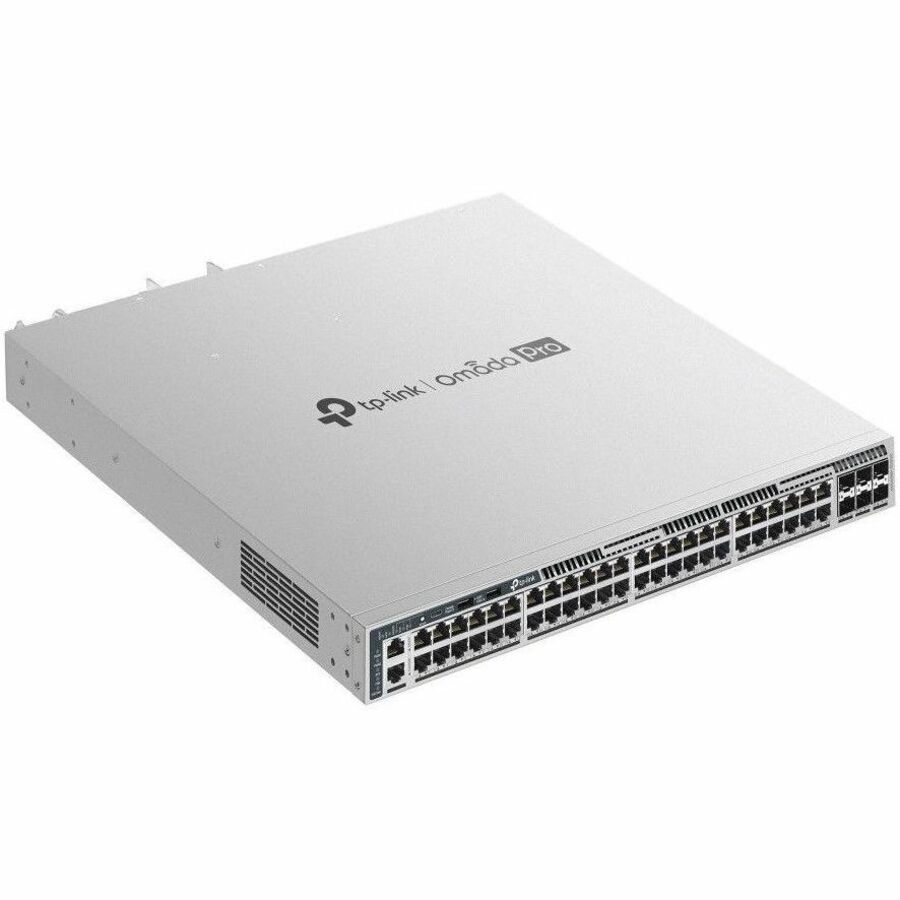

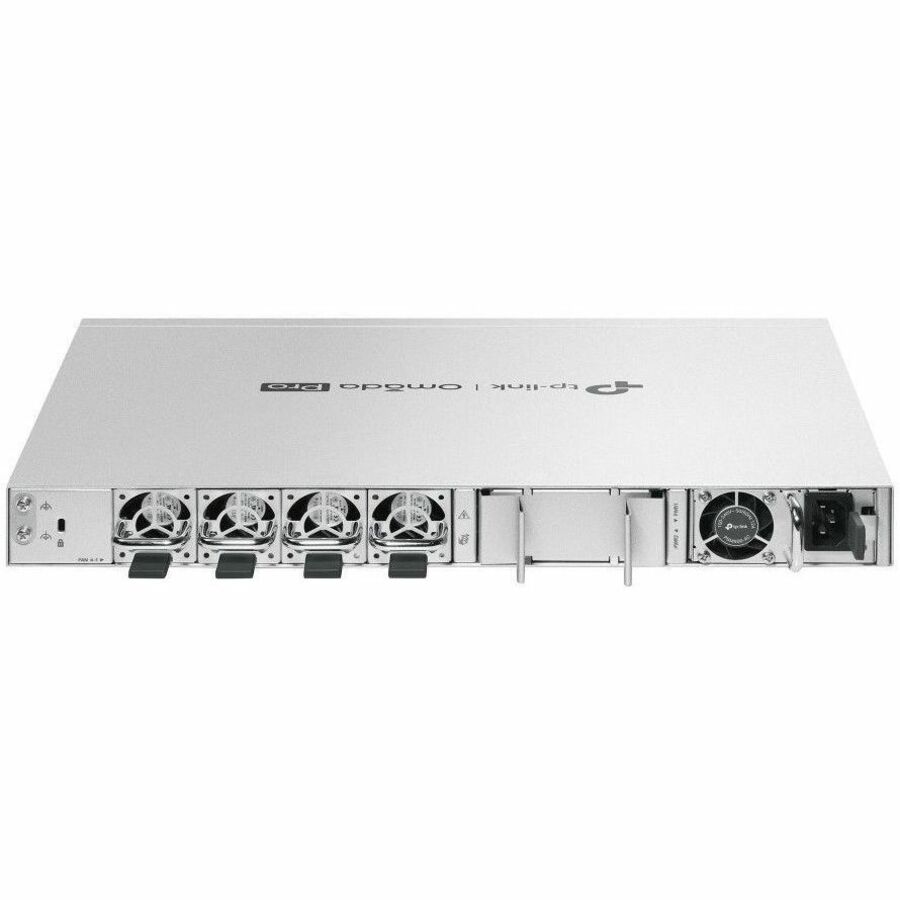

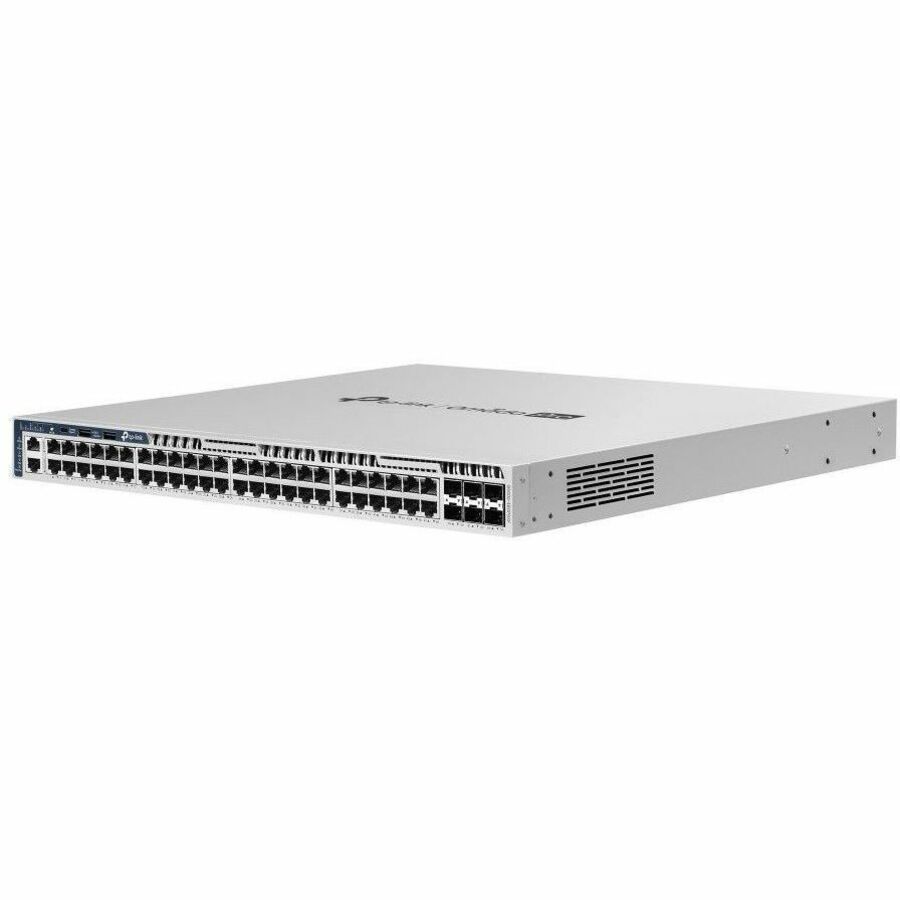

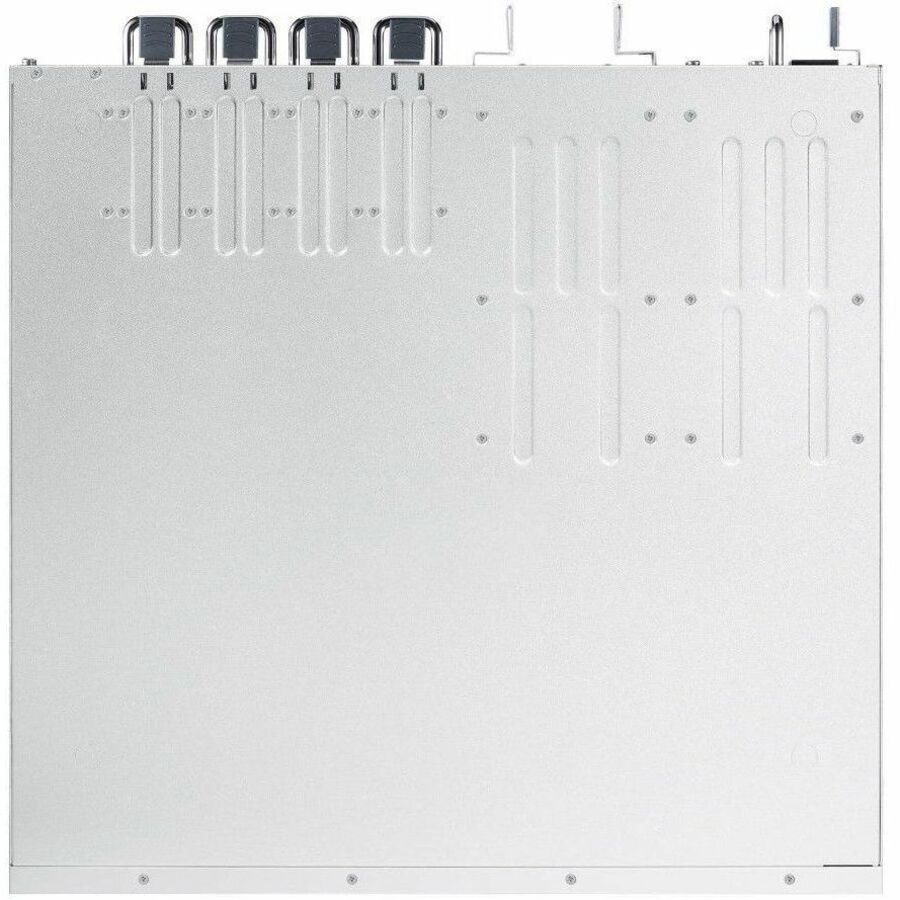

TP LINK S6500-48GP6XF Omada Pro 48-Port Gigabit Stackable L3 Managed PoE+ Switch with 6 10G Slots

Mfg Part Number:  S6500-48GP6XF
Image may not reflect the actual item.
Price: $10,578.68
Quantity:
More to Come
Last Updated: Jan 01, 2026
No Sales Tax except these states
, PO and Wire.

Omada Pro is an intelligent cloud solution for enterprise networking, offering enterprise-grade product line designed to meet the high-capacity, security, and management needs of various industries, such as MDUs, hospitality, K-12 education, public works, and more.

Main Specification
General Information
Manufacturer TP-LINK Technologies Co., Ltd
Manufacturer Part Number S6500-48GP6XF
Manufacturer Website Address http://www.tp-link.com/us
Brand Name TP-Link
Product Line Omada Pro
Product Model S6500-48GP6XF
Product Name Omada Pro 48-Port Gigabit Stackable L3 Managed PoE+ Switch with 6 10G Slots
Product Type Ethernet Switch
Technical Information
Features Loop Protection
Features Surge Protection
Features DHCP Snooping
Features Secure Boot
Features Energy Efficient
Features Hot-swappable
Interfaces/Ports
Total Number of Network Ports 48
Uplink Port Yes
Stack Port Yes
Network (RJ-45) Yes
Port/Expansion Slot Details 1 × RJ-45 Console Port
Port/Expansion Slot Details 1 × RJ-45 Management Port
Port/Expansion Slot Details 6 x 1/10 Gigabit Ethernet SFP+ Expansion Slot
Port/Expansion Slot Details 48 × 10/100/1000Base-T Gigabit Ethernet PoE+ RJ-45 Network Port
Port/Expansion Slot Details 2 × USB 2.0 USB Port
Port/Expansion Slot Details 1 x USB Type C Console Port
Media & Performance
Media Type Supported Twisted Pair
Media Type Supported Optical Fiber
Ethernet Technology Gigabit Ethernet
Ethernet Technology 10 Gigabit Ethernet
Network Technology 10/100/1000Base-T
Network Technology 10GBase-X
Network Technology 1000Base-X
Maximum Data Transfer Rate 1.25 GB/s
I/O Expansions
Total Number of Expansion Slots 6
Expansion Slot Type SFP+
Number of SFP+ Slots 6
Network & Communication
Layer Supported 3
Networking Standards IEEE 802.3ad
Networking Standards IEEE 802.1p
Networking Standards IEEE 802.1Q
Networking Standards IEEE 802.3at
Networking Standards IEEE 802.1x
Networking Standards IEEE 802.3az
Networking Standards IEEE 802.3x
Networking Standards IEEE 802.1D
Networking Standards IEEE 802.1ab
Networking Standards IEEE 802.3af
Networking Standards IEEE 802.1w
Networking Standards IEEE 802.1s
Management & Protocols
Manageable Yes
Reliability
MTBF 648538 Hour
Power Description
PoE (RJ-45) Port Yes
PoE Budget 1440 W
Input Voltage 230 V AC
Input Voltage 120 V AC
Frequency 60 Hz
Frequency 50 Hz
Power Source PoE
Power Source PoE+
Power Source AC
Power Source Power Supply
Redundant Power Supply Supported Yes
Number of Power Supplies Supported 2
Number of Power Supplies Installed 1
Power Consumption 1767.70 W
Physical Characteristics
Color Family Gray
Product Color Gray
Compatible Rack Unit 1U
Form Factor Rack-mountable
Height 1.7"
Width 17.3"
Depth 16.5"
Miscellaneous
Application/Usage Router
Application/Usage Retail
Application/Usage Enterprise
Application/Usage Network
Application/Usage Education
Application/Usage Security
