TP LINK

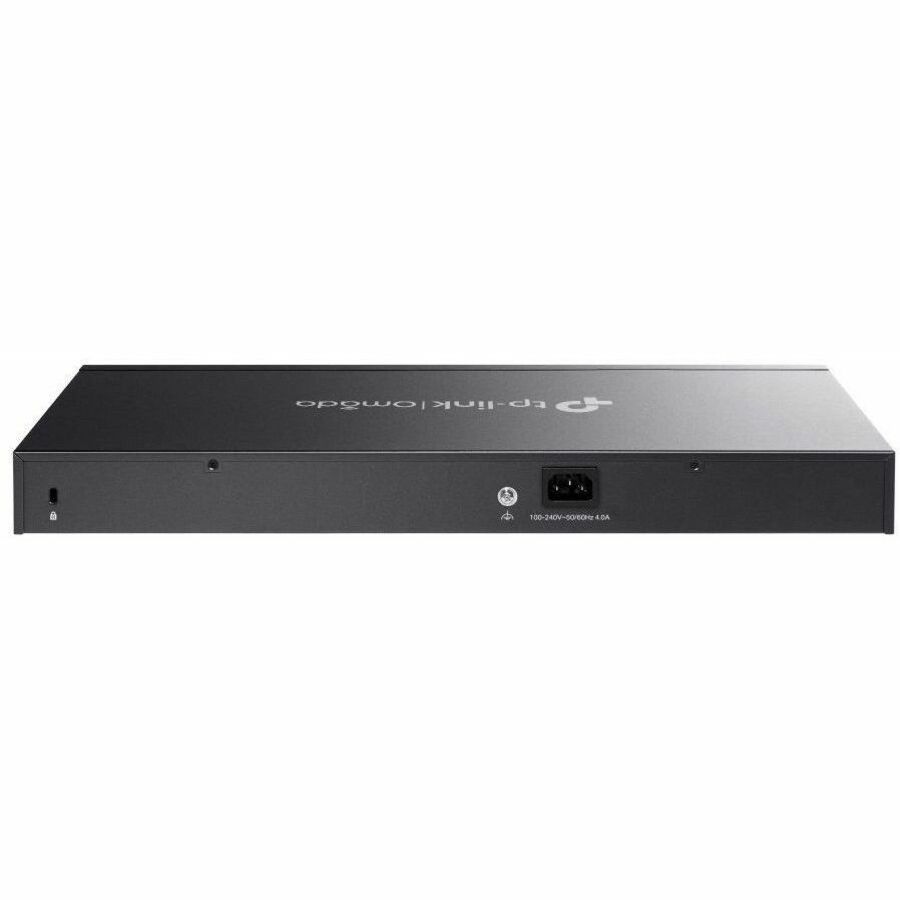

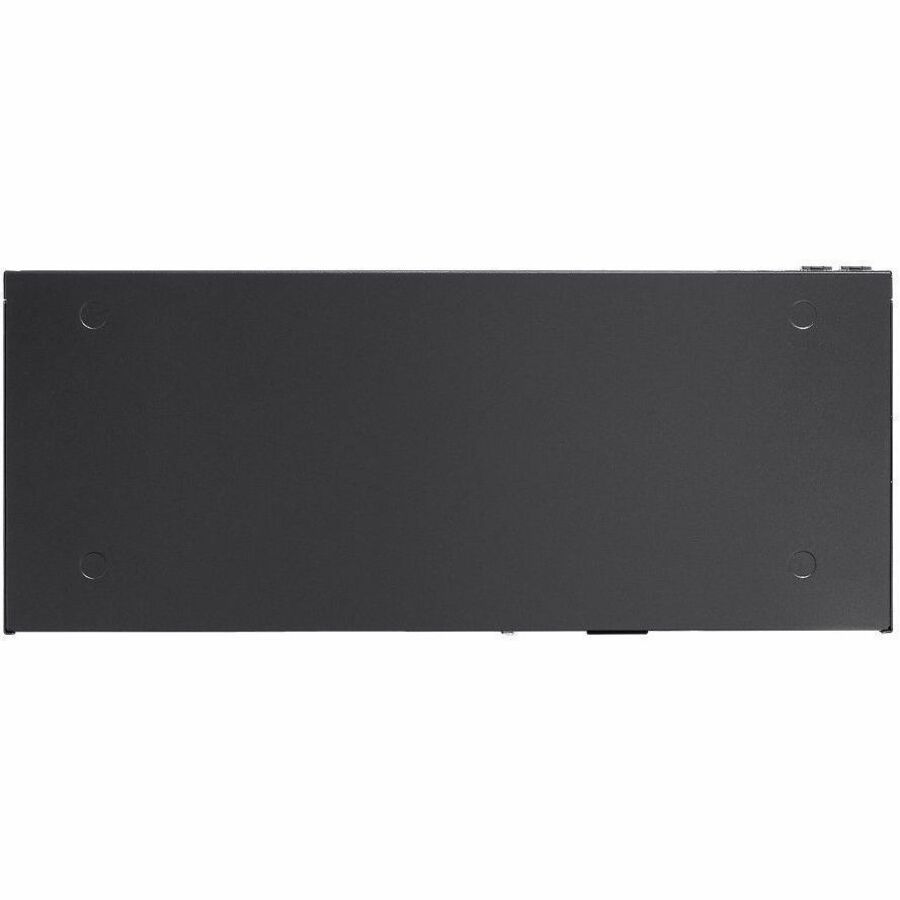

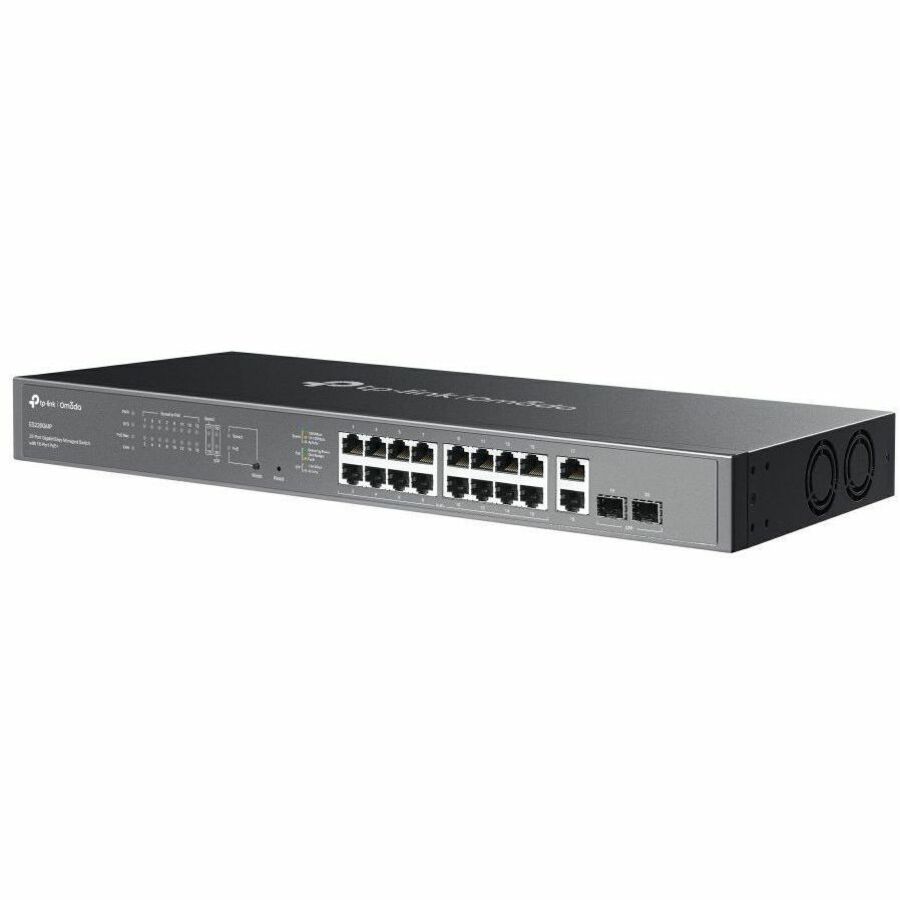

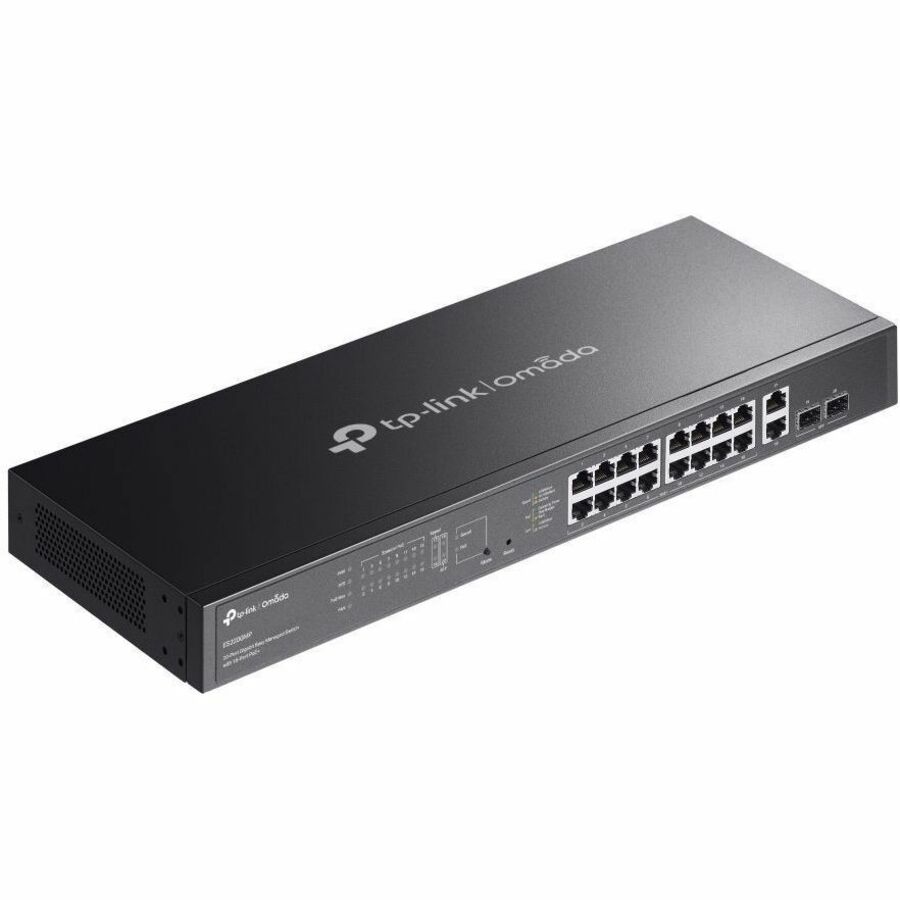

TP LINK TP-Link Switch ES220GMP Omada 20Port Gigabit Easy Managed Switch w 16Port PoE+
Mfg Part Number: ES220GMP , Item #: 5431457
Image may not reflect the actual item.
Price: $207.59
Quantity:
In Stock: 1
Last Updated: Mar 23, 2026
No Sales Tax except these states
, PO and Wire.
Omada Solution
Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface.
Main Specification
| General Information | |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | ES220GMP |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Brand Name | Omada |
| Product Model | ES220GMP |
| Product Name | Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+ |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Remote/Cloud Management |
| Features | Fanless |
| Features | Intelligent monitoring |
| Features | Plug and Play |
| Features | Zero-Touch Provisioning (ZTP) |
| Interfaces/Ports | |
| Total Number of Network Ports | 18 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-X |
| Network Technology | 10/100/1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3i |
| Networking Standards | IEEE 802.3at |
| Networking Standards | IEEE 802.3ab |
| Networking Standards | IEEE 802.3x |
| Networking Standards | IEEE 802.1Q |
| Networking Standards | IEEE 802.1p |
| Networking Standards | IEEE 802.1ab |
| Networking Standards | IEEE 802.3af |
| Networking Standards | IEEE 802.3u |
| Management & Protocols | |
| Manageable | Yes |
| Reliability | |
| MTBF | 310550.70 Hour |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 250 W |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Power Source | Power Supply |
| Power Source | AC |
| Power Consumption | 289.70 W |
| Physical Characteristics | |
| Product Material | Metal |
| Product Material | Steel |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 7.1" |
| Miscellaneous | |
| Application/Usage | Wireless Access Point |
| Application/Usage | Network |
| Application/Usage | Outdoor |
| Application/Usage | Surveillance |
