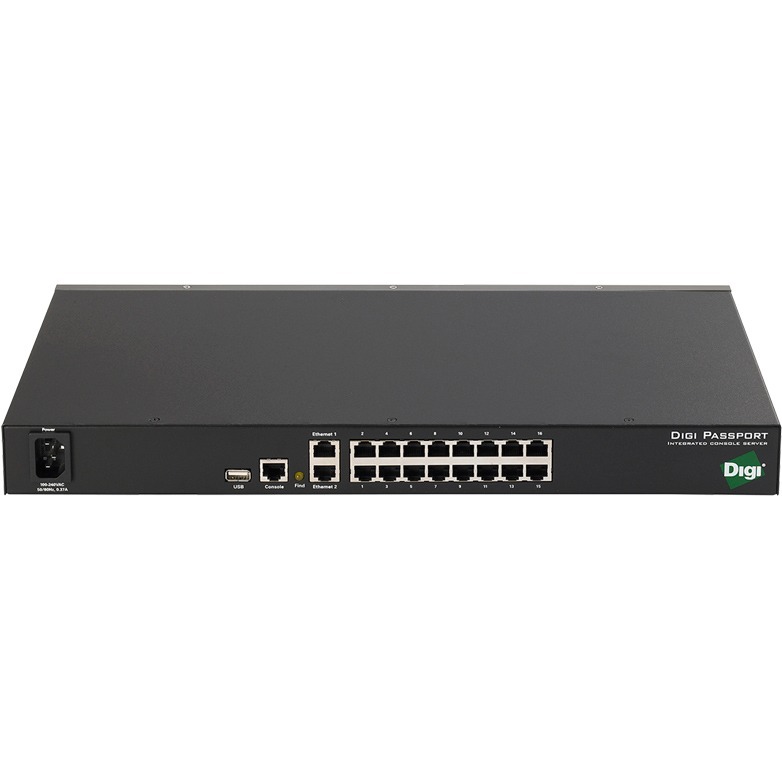

70002270 Digi Passport 16 Integrated Console Server w/ freeKVM & internal modem (16 RJ-45 serial ports)

Mfg Part Number:  70002270
Image may not reflect the actual item.
Price: $4,188.53
Quantity:
In Stock: 40
Last Updated: May 16, 2025
No Sales Tax except these states
, PO and Wire.

The latest entry in Digi's advanced console management line, the Digi Passport 16 provides secure remote access to the console ports of computer systems and network equipment. In addition to conventional serial console connections, the Digi Passport connects to the service processors of the leading server vendors, including Dell (DRAC), HP (iLO), IBM (IPMI), Rackable Systems (Phantom and Roamer) and Sun (ALOM and ILOM). It also provides SMASH extensions to each of these network-based access protocols.

Main Specification
General Information
Manufacturer Digi International
Manufacturer Part Number 70002270
Manufacturer Website Address http://www.digi.com
Brand Name Digi
Product Line Passport
Product Name Passport 16-Port Console Server with Modem
Product Type Device Server
I/O Expansions
Total Number of Expansion Slots 1
Network & Communication
Ethernet Technology Fast Ethernet
Interfaces/Ports
Network (RJ-45) Yes
Phone Line (RJ-11) Yes
Management Port Yes
Number of Network (RJ-45) Ports 18
Number of RJ-11 Ports 1
Physical Characteristics
Form Factor Rack-mountable
Height 1.8"
Width 17.5"
Depth 10"
Weight (Approximate) 6.09 lb
Miscellaneous
Package Contents
  • Passport 16-Port Console Server with Modem
  • Rack mount kit
Additional Information
  • IPv4/IPv6 dual stack
  • freeKVM for remote access to the graphical desktops of managed systems
Country of Origin South Korea
Warranty
Limited Warranty 5 Year
product information
The Digi Passport provides secure remote access to the console ports of computer systems and network equipment over Ethernet or dial-up connections. Offering native support for the Intelligent Platform Management Interface (IPMI), the Digi Passport can communicate with virtually any server or device. The Digi Passport also provides network-based graphical access to servers, providing a single interface through which to remotely administer systems and run desktop applications without the cost and complexity of traditional KVM over IP solutions.

Device Type Console server
Width 17.4 in
Depth 10 in
Height 1.7 in
Networking
Form Factor External
Ports Qty 16
Connectivity Technology Wired
Data Link Protocol RS-232
Routing Protocol RIP
Remote Management Protocol Telnet, SNMP 3, HTTP, HTTPS, IPMI 2.0
Features Auto-sensing per device, Syslog support, manageable, IPv6 support, IP address filtering, firmware upgradable, RealPort technology
Encryption Algorithm SSL
Authentication Method Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP
Compliant Standards USB 2.0
Communications
Type Modem (analog) - integrated
Expansion / Connectivity
Expansion Slots Total (Free) 1 ( 1 ) x PC Card
Interfaces 16 x serial - RS-232 - RJ-45 Ý 1 x management - console - RJ-45 Ý 2 x network - Ethernet 10Base-T/100Base-TX - RJ-45 Ý 1 x Hi-Speed USB - 4 pin USB Type A Ý 1 x modem
Miscellaneous
Rack Mounting Kit Included
Compliant Standards FCC Class A certified, EN55022, UL 1950, EN55024, FCC Part 15, RoHS
Power
Power Device Power supply - internal
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Consumption Operational 40 Watt
Power Provided 15 Watt
Software / System Requirements
OS Provided Linux
Manufacturer Warranty
Service & Support 5 years warranty
Service & Support Details Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 122 °F
