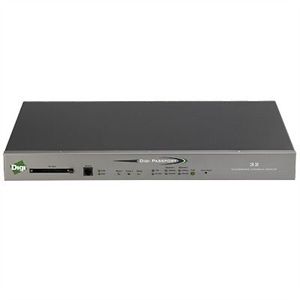

70002264 Digi Passport 48 Integrated Console Server w/ freeKVM (48 RJ-45 serial ports)

Mfg Part Number:  70002264
Image may not reflect the actual item.
Price: $6,017.25
Quantity:
In Stock: 33
Last Updated: Nov 06, 2025
No Sales Tax except these states
, PO and Wire.

The Digi Passport 48 Port Integrated Console Server provides secure remote access to the console ports of computer systems and network equipment over the network or dial-up connection. Offering native support for the Intelligent Platform Management Interface (IPMI), the Digi Passport can communicate with virtually any server or device. With freeKVM, it also enables network-based graphical access to servers, providing a single interface to remotely administer systems and run desktop applications without the cost and complexity of traditional KVM over IP solutions.

Main Specification
General Information
Manufacturer Digi International
Manufacturer Part Number 70002264
Manufacturer Website Address http://www.digi.com
Brand Name Digi
Product Line Passport
Product Name Passport 48 Port Integrated Console Server
Product Type Device Server
I/O Expansions
Total Number of Expansion Slots 1
Network & Communication
Ethernet Technology Fast Ethernet
Interfaces/Ports
Network (RJ-45) Yes
Management Port Yes
Number of Network (RJ-45) Ports 50
Power Description
Input Voltage 220 V AC
Input Voltage 110 V AC
Power Consumption 15 W
Input Current 370 mA
Frequency 60 Hz
Frequency 50 Hz
Physical Characteristics
Form Factor Rack-mountable
Height 1.8"
Width 17.5"
Depth 10"
Weight (Approximate) 6.48 lb
Miscellaneous
Package Contents
  • Passport 48 Port Integrated Console Server
  • Rack mount kit
Additional Information
  • IPv4/IPv6 dual stack
  • Dual Ethernet, optional dual power and optional 48VDC power

PC Cards Supported:

  • PCMCIA/CF memory cards
  • Wireless LAN adapter (802.11b)
  • Ethernet LAN adapter
  • PSTN/CDMA modem card
Compatibility
  • Windows Server 2003
  • Linux
  • UNIX
Certifications & Standards
  • FCC Part 15, A
  • UL 1950, EN60950
  • EN55022, A
  • EN55024
  • CE
  • RoHS
  • IEEE 802.3
  • IEEE 802.3u
Warranty
Limited Warranty 5 Year
product information
The Digi Passport provides secure remote access to the console ports of computer systems and network equipment over Ethernet or dial-up connections. Offering native support for the Intelligent Platform Management Interface (IPMI), the Digi Passport can communicate with virtually any server or device. The Digi Passport also provides network-based graphical access to servers, providing a single interface through which to remotely administer systems and run desktop applications without the cost and complexity of traditional KVM over IP solutions.

Device Type Console server
Height (Rack Units) 1U
Width 17.4 in
Depth 10 in
Height 1.7 in
Networking
Form Factor External
Ports Qty 48
Connectivity Technology Wired
Data Link Protocol RS-232
Remote Management Protocol Telnet, SNMP 3, HTTP, HTTPS, IPMI 2.0
Features LDAP support, IPv6 support
Encryption Algorithm SSL
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+, LDAP
Expansion / Connectivity
Expansion Slots Total (Free) 1 ( 1 ) x PC Card
Interfaces 48 x serial - RS-232 - RJ-45
1 x management - console - RJ-45
2 x network - Ethernet 10Base-T/100Base-TX - RJ-45
1 x Hi-Speed USB - 4 pin USB Type A
Miscellaneous
Rack Mounting Kit Included
MTBF 132,000 hour(s)
Compliant Standards FCC Class A certified, EN55022, UL 1950, EN55024, FCC Part 15, RoHS
Power
Power Device Power supply - internal
Voltage Required AC 120/230 V ( 50/60 Hz )
Software / System Requirements
OS Provided Linux
Manufacturer Warranty
Service & Support 5 years warranty
Service & Support Details Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
