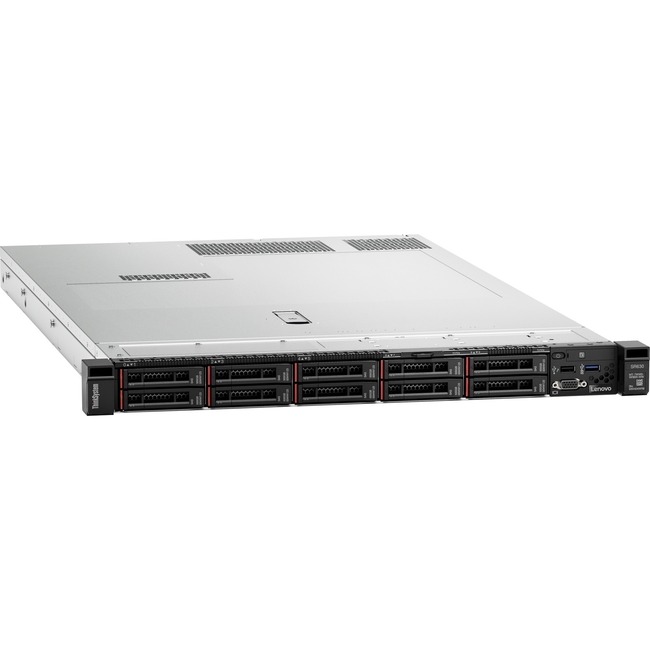

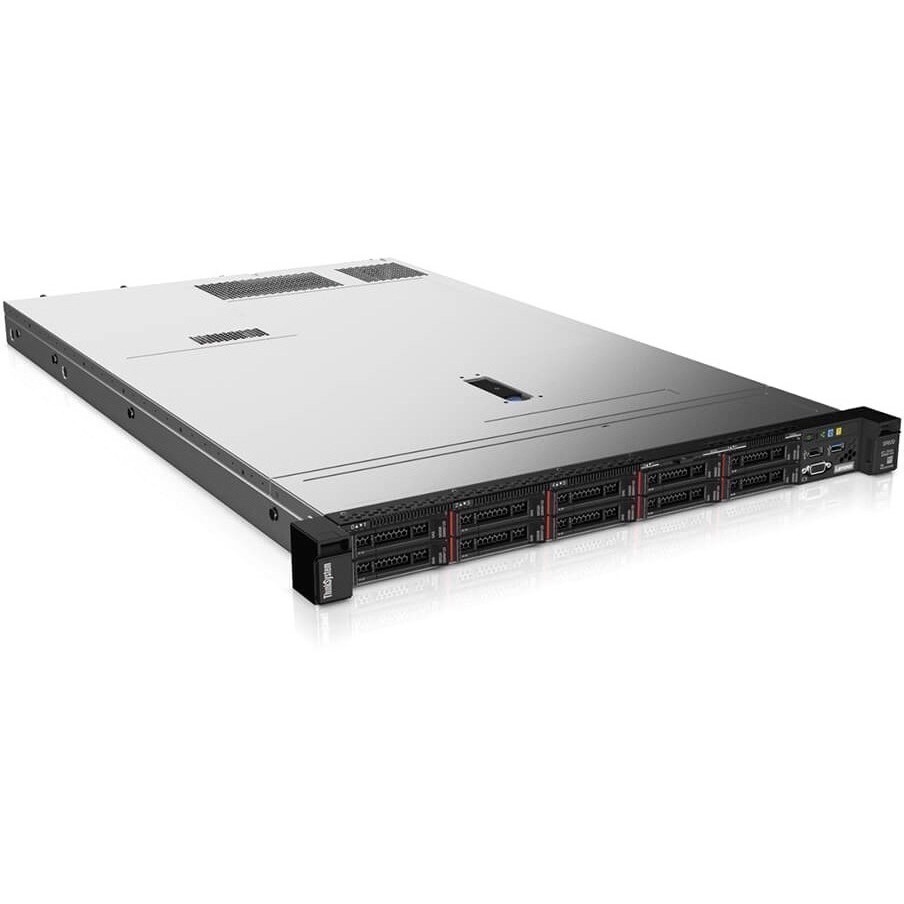

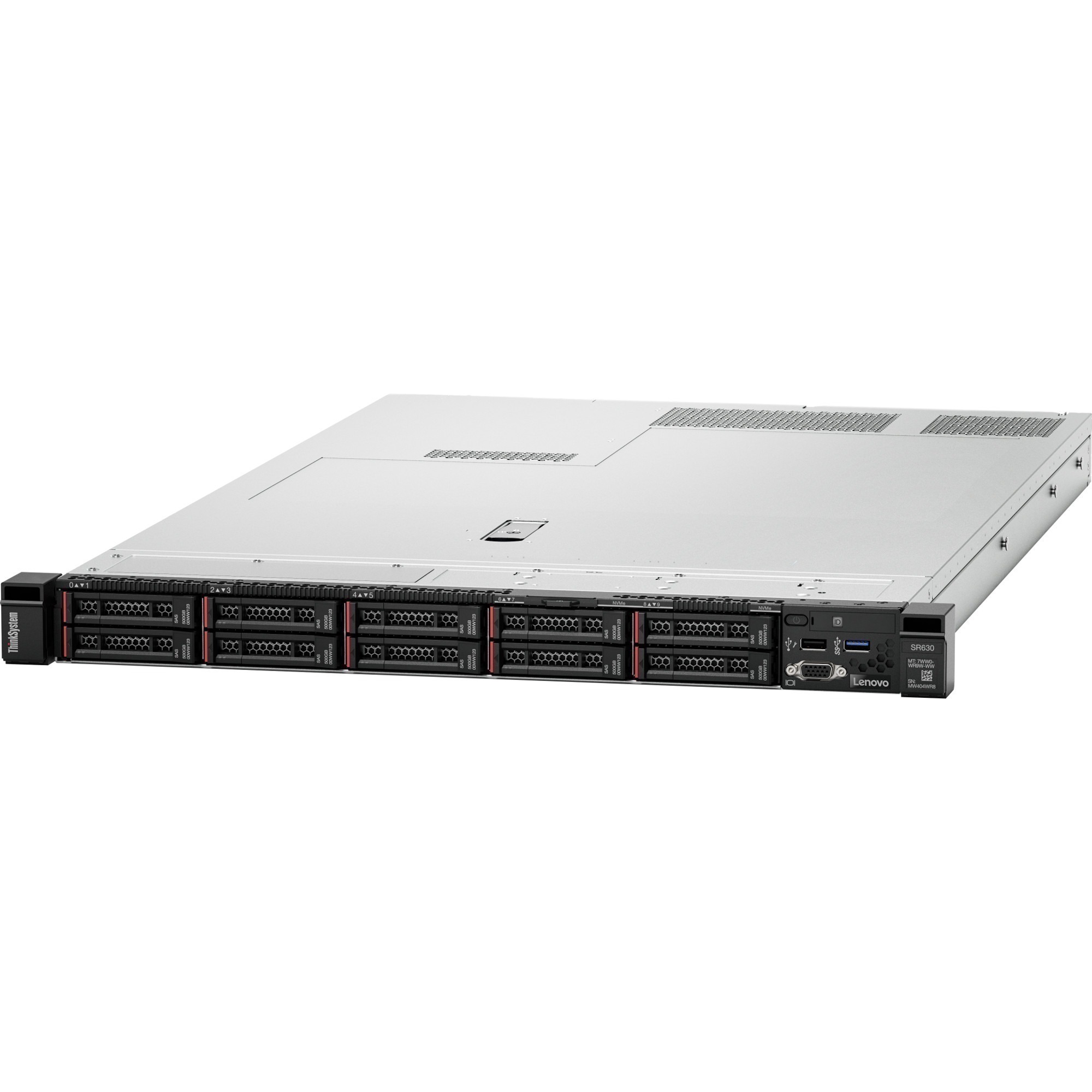

LENOVO 7X02A0GYNA THINKSYSTEM SR630 4216 32GB

Mfg Part Number:  7X02A0GYNA
Image may not reflect the actual item.
Price: $5,837.75 + Free Shipping
Quantity:
More to Come
Last Updated: Jun 15, 2025
No Sales Tax except these states
, PO and Wire.

Lenovo ThinkSystem SR630 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.

Main Specification
General Information
Manufacturer Lenovo Group Limited
Manufacturer Part Number 7X02A0GYNA
Manufacturer Website Address http://www.lenovo.com/us/en/
Brand Name Lenovo
Product Line ThinkSystem
Product Series SR630
Product Model 7X02A0GYNA
Product Name ThinkSystem SR630 7X02A0GYNA Server
Product Type Server
Processor
Number of Processors Supported 2
Number of Processors Installed 1
Processor Type Xeon Silver
Processor Generation 2nd Gen
Processor Model 4216
Processor Core Hexadeca-core (16 Core)
Processor Speed 2.10 GHz
Cache 22 MB
Chipset
Chipset Manufacturer Intel
Chipset Model C624
Memory
Standard Memory 32 GB
Memory Technology TruDDR4
Memory Clock Speed 2.93 GHz
Error Checking ECC
Total Number of Memory Slots 24
Number of Occupied Memory Slots 1
Intel Optane Memory Ready Yes
Signal Processing Registered (Buffered)
Storage
Total Hard Drive Capacity No
Optical Drive Type No
Controllers
Controller Type Serial ATA/600
Display & Graphics
Graphics Controller Model G200e
Graphics Memory Capacity 16 MB
Network & Communication
Ethernet Technology Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports 4
Number of USB 2.0 Ports 1
Number of USB 3.0 Ports 3
Network (RJ-45) Yes
VGA Yes
Remote Management Yes
Remote Management Controller XClarity Controller (XCC)
Operating System
Operating System Supported SUSE Linux Enterprise Server 12 SP4
Operating System Supported SUSE Linux Enterprise Server 15 SP1
Operating System Supported SUSE Linux Enterprise Server 15 SP3
Operating System Supported SuSE Linux Enterprise Server 15
Operating System Supported SUSE Linux Enterprise Server 12 SP5
Operating System Supported Red Hat Enterprise Linux 8.4
Operating System Supported Red Hat Enterprise Linux 8
Operating System Supported SUSE Linux Enterprise Server 15 SP2
Operating System Supported Red Hat Enterprise Linux 7.6
Operating System Supported Red Hat Enterprise Linux 7.9
Operating System Supported Red Hat Enterprise Linux 7.7
Operating System Supported Red Hat Enterprise Linux 8.5
Operating System Supported Red Hat Enterprise Linux 8.2
Operating System Supported Red Hat Enterprise Linux 8.1
Operating System Supported Red Hat Enterprise Linux 7.8
Operating System Supported Windows Server 2019
Operating System Supported Windows Server 2022
Operating System Supported Red Hat Enterprise Linux 8.3
Operating System Supported Windows Server 2016
Operating System No
Power Description
Input Voltage 230 V AC
Input Voltage 120 V AC
Number of Power Supplies Supported 2
Number of Power Supplies Installed 1
Plug/Connector Type C13/C14
Maximum Power Supply Wattage 750 W
Hot Swappable Power Supply Yes
Physical Characteristics
Form Factor Rack
Rack Height 1U
Height 1.7"
Width 17.1"
Depth 29.5"
Weight (Approximate) 41.45 lb
Miscellaneous
Package Contents
  • ThinkSystem SR630 7X02A0GYNA Server
  • Slide Rail Kit
  • 2.8 m C13-C14 Rack Power Cable
Security Features
  • Power-on password
  • Administrator's password
  • Secure firmware updates
  • Onboard Trusted Platform Module (TPM)
  • Self-encrypting drives (SEDs) with support for enterprise key managers
Energy Star Yes
Environmentally Friendly Yes
Energy Efficiency Certification ENERGY STAR 3.0
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
