HONEYWELL

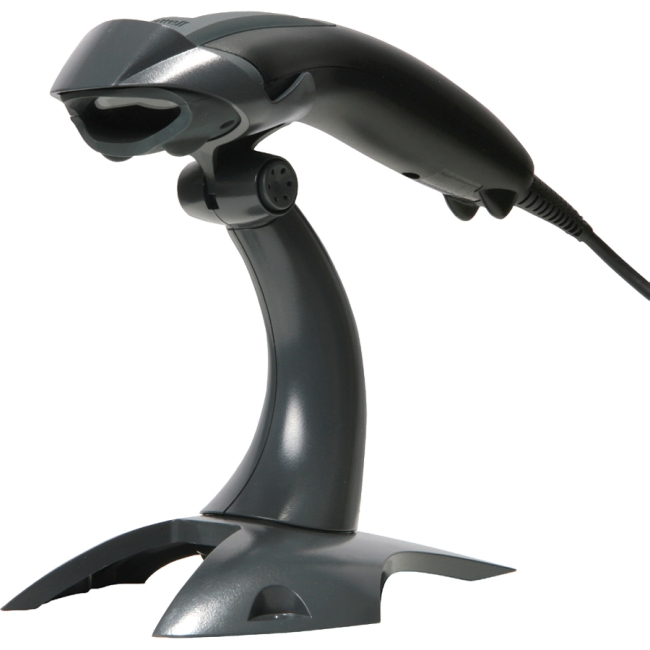

1400G2D-2USB HONEYWELL VOYAGER 1400G OMNIDIRECTIONAL SCANNER WITH USB KIT. INCLUDES USB TYPE
Mfg Part Number: 1400G2D-2USB , Item #: 2938375
, PO and Wire.
Honeywell's Voyager 1400g is the ultimate 2D barcode scanner. This linear imager is capable of reading even poor quality and mobile 2D barcodes. 2D barcode scanners are becoming increasingly popular across a wide range of industries for a number of reasons. Enterprises have a growing need to capture large amounts of data, despite space constraints, while others are being required to read 2D barcodes due to government regulations or supplier mandates. An even larger group of enterprises simply have the desire to leverage emerging trends that require linear imagers with advanced area-imaging technology, without needing to purchase additional scanning hardware. The 1400g's features go above and beyond in meeting 2D scanning needs.
| General Information | |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | 1400G2D-2USB |
| Manufacturer Website Address | http://www.honeywell.com |
| Brand Name | Honeywell |
| Product Line | Voyager |
| Product Model | 1400g |
| Product Name | Voyager 1400g Linear/Area-Imaging Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Scanning Capability | 2D |
| Barcode Symbology Supported | PDF417 |
| Image Sensor Type | Imager |
| Depth of Field |
|
| Scan Pattern | Omni-directional |
| Scanning Distance | 13.70" |
| Cable Type Included | USB |
| Reading Angle (Skew) | 70° |
| Reading Angle (Pitch) | 60° |
| Motion Tolerance | 4 in/s |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Designed to withstand 30 1.5 m (5ยด) drops to concrete |
| Minimum Print Contrast | 35% |
| Minimum Element Resolution (Code 39) | 5 mil |
| Maximum Element Resolution (Code 39) | 20 mil |
| Maximum Element Resolution (DataMatrix) | 10 mil |
| Maximum Element Resolution (PDF417) | 6.7 mil |
| Interfaces/Ports | |
| Host Interface | USB |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Black |
| Height | 2.6" |
| Depth | 7.1" |
| Length | 1.7" |
| Weight (Approximate) | 4.20 oz |
| Miscellaneous | |
| Additional Information | USB Cable separate |
| Ingress Protection (IP) Rating | IP42 |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 5 Year |
