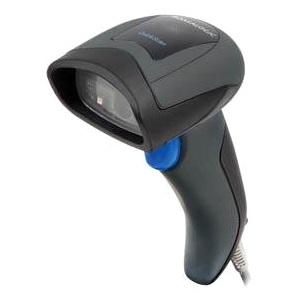

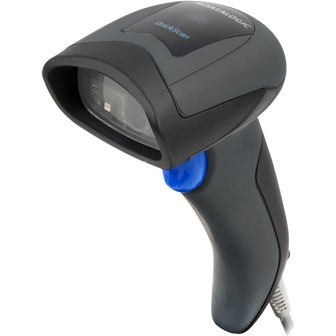

QD2430-BK Datalogic QuickScan QD2430 Handheld Barcode Scanner

Mfg Part Number:  QD2430-BK
Image may not reflect the actual item.
Price: $258.04 + Free Shipping
Quantity:
More to Come
Last Updated: Jul 01, 2025
No Sales Tax except these states
, PO and Wire.

The popularity of 2D bar codes has spread across all market segments of the data capture industry. Now, with more affordable pricing and virtually no drawbacks with area imaging technology, 2D bar code readers are in high demand with features such as reading from mobile phone displays or in planning ahead for future 2D codes and imaging needs.

Main Specification
General Information
Manufacturer Datalogic S.p.A
Manufacturer Part Number QD2430-BK
Manufacturer Website Address http://www.datalogic.com
Brand Name Datalogic
Product Line QuickScan
Product Model QD2430
Product Name QuickScan QD2430 Handheld Barcode Scanner
Packaged Quantity 1
Product Type Barcode Scanner
Technical Information
Connectivity Technology Cable
Scanning Capability 2D
Scanning Capability 1D
Barcode Symbology Supported

1D / Linear Codes:

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.

2D Codes:

  • Aztec Code
  • Aztec Mesas
  • Data Matrix
  • MaxiCode
  • QR Code
  • Micro QR Code
  • China Han Xin Code

Postal Codes:

  • Australian Post
  • British Post
  • Canadian Post
  • China Post
  • Japanese Post
  • KIX Post
  • Korea Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Image Sensor Type Imager
Maximum Scan Resolution 4 mil
Depth of Field
  • 0.2" - 5.9"@5mil - Code 39
  • 0.2" - 13.8"@13mil - EAN/UPCA
  • 0.4" - 5.1"@6.6mil - PDF417
  • 0.4" - 5.1"@10mil - Data Matrix
Scan Pattern Omni-directional
Scanner Range Standard Range
Scanning Distance 13.78"
Cable Type Included USB
Reading Angle (Skew) 360°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 60°
Motion Tolerance 25 in/s
Maximum Ambient Light 86000 lux
Drop Specification Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
Minimum Print Contrast 25%
Minimum Element Resolution (Code 39) 5 mil
Minimum Element Resolution (DataMatrix) 10 mil
Minimum Element Resolution (PDF417) 6.6 mil
Interfaces/Ports
Host Interface USB
Host Interface Keyboard Wedge
Host Interface Serial
Physical Characteristics
Form Factor Handheld
Color Family Black
Product Color Black
Height 6.4"
Width 1.6"
Depth 3.6"
Weight (Approximate) 5.11 oz
Miscellaneous
Additional Information

USB Cable separate
Ingress Protection (IP) Rating IP42
Application/Usage Industrial
Application/Usage Retail
Country of Origin Vietnam
