DATALOGIC

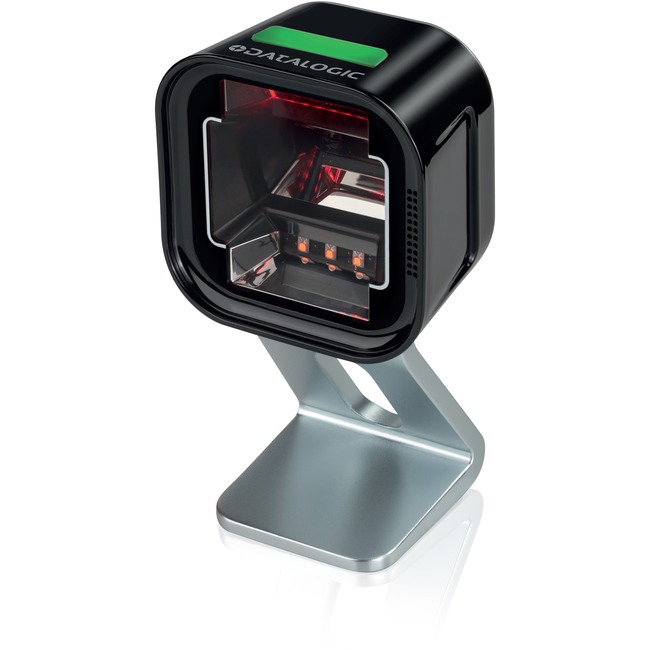

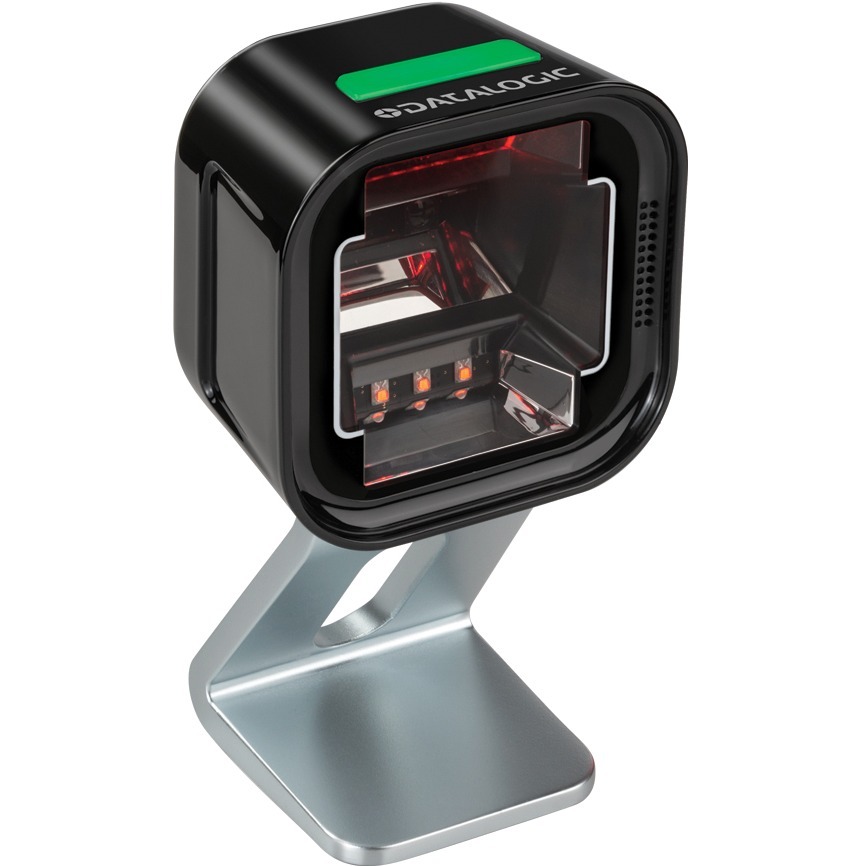

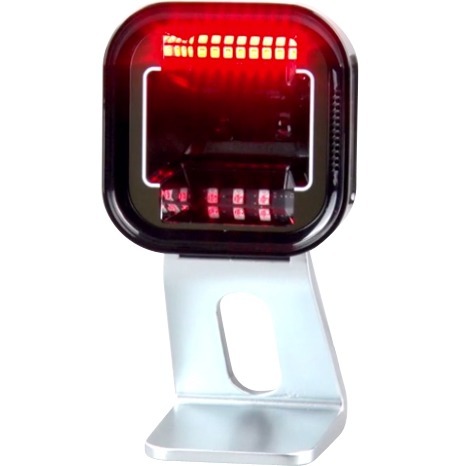

DATALOGIC MG1501-10211-0200 MAGELLAN 1500I BLACK STD CONFIG 2D TILTING STAND WITH MAGNETIC BASE

Mfg Part Number:  MG1501-10211-0200
Image may not reflect the actual item.
Price: $477.97 + Free Shipping
Quantity:
In Stock: 6
Last Updated: Jun 28, 2025
No Sales Tax except these states
, PO and Wire.

HIGH PERFORMANCE SCANNING IN THE PALM OF YOUR HAND
The Magellan 1500i omnidirectional presentation scanner is a versatile and stylish addition to any point of sale. With Datalogic's latest digital imaging technology, it seamlessly decodes both 1D and 2D bar codes on everything from printed product labels to mobile coupons, loyalty cards, tickets and boarding passes. The recessed, adaptive illumination optimizes light levels for both superior operator comfort and high performance sweep and presentation scanning. With the addition of optional Digimarc® Barcode decoding, the Magellan 1500i is the most capable scanner in its class.

A WIDE VARIETY OF USES
The available black and white enclosures complement a variety of point of sale systems and store formats, making the Magellan 1500i equally at home in a convenience store, pharmacy, post office or a high-end boutique. With the most compact footprint in its class, the Magellan 1500i is an ideal choice for space constrained applications. Additionally, intelligent host cable routing ensures that the scanner is both comfortable in the hand and can back right up to a wall or display for maximum space efficiency. A variety of mounting options allow you to optimize the scanner's location with a tall tilting riser, short stand, magnetic base and an L shaped mounting bracket.

ENTERPRISE FEATURES
Remote Management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added features included in every Magellan scanner.

Main Specification
General Information
Manufacturer Datalogic S.p.A
Manufacturer Part Number MG1501-10211-0200
Manufacturer Website Address http://www.datalogic.com
Brand Name Datalogic
Product Line Magellan
Product Model 1500i
Product Name Magellan 1500i Desktop Barcode Scanner
Packaged Quantity 1
Product Type Barcode Scanner
Technical Information
Connectivity Technology Cable
Scanning Capability 1D
Scanning Capability 2D
Barcode Symbology Supported 1D:
  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D:
  • Aztec Code
  • Data Matrix
  • MaxiCode
  • QR Code
Postal Codes:
  • Australian Post
  • British Post
  • Canadian Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Portuguese Post
  • Postnet
  • Royal Mail Code (RM4SCC)
  • Swedish Post
Stacked Codes:
  • GS1 DataBar Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • Micro PDF417
  • PDF417
Digital Watermarks:
  • Optional support for Digimarc® Barcodes/GS1 DW Code
Image Sensor Type Imager
Scanning Distance 11.81"
Cable Type Included USB
Reading Angle (Skew) 75°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Maximum Ambient Light 86100 lux
Drop Specification Withstands repeated drops from 1.2 m / 4.0 ft onto a concrete surface
Minimum Print Contrast 25%
Interfaces/Ports
Host Interface USB
Host Interface Serial
Physical Characteristics
Form Factor Desktop
Color Family Black
Product Color Black
Height 4.1"
Width 5.5"
Length 8.1"
Miscellaneous
Ingress Protection (IP) Rating IP52
Application/Usage Industrial
Application/Usage Healthcare
Application/Usage Retail

Connector Cables

WARNING:: The plastic used in cable products can expose you to lead and lead components, chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
