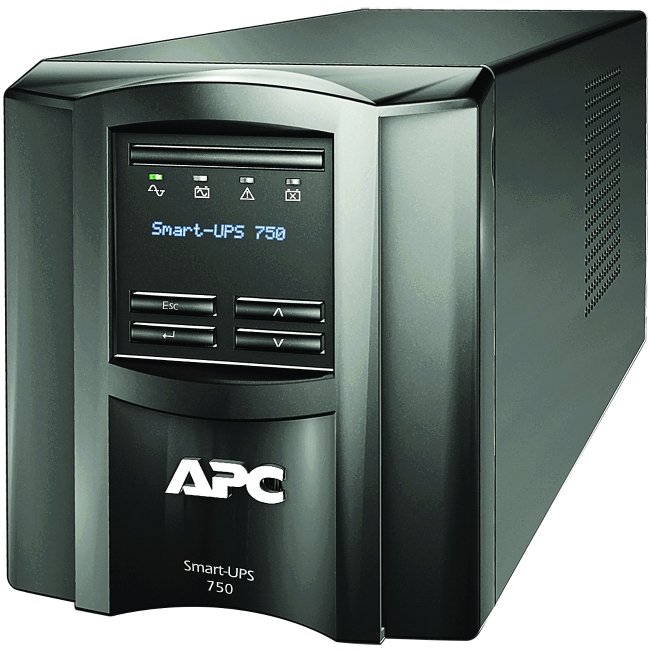

APC SMT750C SMART-UPS 750VA LCD 120V WITH SMARTCONNECT

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

More from the Manufacturer

General Information
Manufacturer	Schneider Electric SA
Manufacturer Part Number	SMT750C
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Smart-UPS
Product Name	Smart-UPS 750VA LCD 120V with SmartConnect
Packaged Quantity	1 Each
Product Type	Line-interactive UPS
Technical Information
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15P
Receptacle Detail	6 x NEMA 5-15R
Number of Battery & Surge Outlets	6
Cord Length	6 ft
Transfer Time	10 ms
Power Description
Load Capacity (VA)	750 VA
Load Capacity (Watt)	500 W
Input Voltage	120 V
Input Voltage Range	75 V AC - 154 V AC
Output Voltage	120 V AC
Waveform Type	Sine Wave
Surge Energy Rating	540 J
Management
Network Management	SmartConnect
Battery Information
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	5 Minute
Typical Battery Recharge Time	3 Hour
Hot Swappable	Yes
Physical Characteristics
Color Family	Black
Product Color	Black
Height	6.3"
Width	5.4"
Depth	14.5"
Form Factor	Tower
Mounting Location	Front
Weight (Approximate)	27.56 lb
Miscellaneous
Package Contents	Smart-UPS 750VA LCD 120V with SmartConnect USB cable
Certifications & Standards	cULus|ENERGY STAR V2.0 (USA)
Energy Star	Yes
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
Mercury Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT750C_ROHS_DECLARATION&p_FileName=SMT750CKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=454159715&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=454159715&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN
California Proposition 65 Warning	"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
Energy Star URL	https://www.energystar.gov/products/uninterruptible_power_supplies
REACH free of SVHC	No
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	3 Year
Additional Warranty Information	3 years repair or replace (excluding battery) and 2 years for battery
Directly Connected Equipment Guarantee	$150000 Lifetime

Specifications

• Mfr Part Number: SMT750C
• Output:
  • Output Power Capacity: 500 Watts / 750 VA
  • Max Configurable Power: 500 Watts / 750 VA
  • Nominal Output Voltage: 120 V
  • Output Voltage Distortion: Less than 5%
  • Output Frequency (sync to mains): 50~60Hz for +/- 3Hz nominal
  • Other Output Voltages: 110, 127
  • Topology: Line Interactive
  • Waveform Type: Sine wave
  • Output Connections: 6x NEMA 5-15R (Battery Backup)
  • Transfer Time: 6ms typical, 10ms maximum
• Input:
  • Nominal Input Voltage: 120 V
  • Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections: NEMA 5-15P
  • Cord Length: 6 ft / 1.83 meters
  • Input Voltage Range for Main Operations: 82 ~ 144 V
  • Input voltage adjustable range for mains operation: 75 ~ 154 V
  • Number of Power Cords: 1
    Other Input Voltages: 110, 127
• Batteries & Runtime:
  • Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte - leakproof
  • Typical Recharge Time: 3 hours
  • Replacement Battery: RBC48
  • Expected Battery Life (years): 3 - 5
  • RBC Quantity: 1
• Communications & Management:
  • Interface Ports: SmartSlot, USB
  • Control Panel: Multi-function LCD status and control console
  • Audible Alarm: Alarm when on battery - distinctive low battery alarm - configurable delays
  • Available SmartSlot Interface Quantity: 1
• Surge Protection and Filtering:
  • Surge Energy Rating: 540 Joules
  • Filtering: Full time multi-pole noise filtering - 0.3% IEEE surge let-through - zero clamping response time - meets UL 1449
• Audible Noise at 1 Meter From Surface of Unit: 41.0 dBA
• Online Thermal Dissipation: 90.0 BTU/hr
• Approvals: CSA, CSA C22.2 No. 107.1, ENERGY STAR V1.0 (USA), FCC Part 15 Class B, ICES-003, UL 1778
• Color: Black
• Dimensions: 5.43 x 14.53 x 6.34 inch / 138.0 x 369.0 x 161.0 mm
• Weight: 27.56 lbs / 12.5 kg
