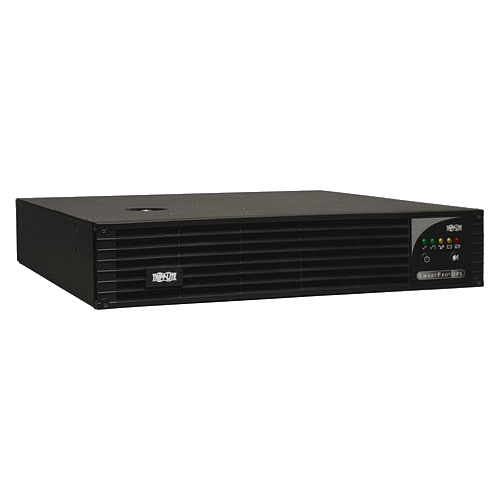

SM2200RMXL2UP Tripp Lite 2200VA 1920W UPS Smart Rackmount Sine Wave LCD AVR 120V USB 2URM

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply(UPS) with built-in Auto-Voltage Regulation(AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional SNMPWEBCARD network interface. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off(EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	SM2200RMXL2UP
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	SmartPro
Product Model	SM2200RMXL2UP
Product Name	SmartPro SM2200RMXL2UP 2200 VA Tower/Rack Mountable UPS
Product Type	Line-interactive UPS
Technical Information
Plug/Connector Type	NEMA 5-20P
Receptacle Type	NEMA 5-15R
Receptacle Type	NEMA 5-15/20R
Receptacle Detail	4 x NEMA 5-15/20R
Receptacle Detail	4 x NEMA 5-15R
Emergency Power OFF	Yes
Transfer Time	5 ms
Power Description
Load Capacity (VA)	2200 VA
Load Capacity (Watt)	1920 W
Input Voltage	120 V AC
Input Current	16 A
Output Voltage	120 V AC
Management
Network Management	SNMP Manageable
Interfaces/Ports
Serial Port	Yes
USB	Yes
Battery Information
Backup/Run Time (Full Load)	4.50 Minute
Backup/Run Time (Half Load)	13 Minute
Typical Battery Recharge Time	4.50 Hour
Hot Swappable	Yes
Physical Characteristics
Height	3.5"
Width	17.5"
Depth	19"
Rack Height	2U
Form Factor	Rack/Tower
Weight (Approximate)	64 lb
Miscellaneous
Package Contents	SmartPro SM2200RMXL2UP 2200 VA Tower/Rack Mountable UPS 4 Post 19 inch Rackmount Mounting Rail Kit PowerAlert Software CD USB Cable Serial Cable EPO Cable
Certifications & Standards	UL1778 FCC Part 15 Category A (EMI)
Software Included	PowerAlert Software
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	3 Year
