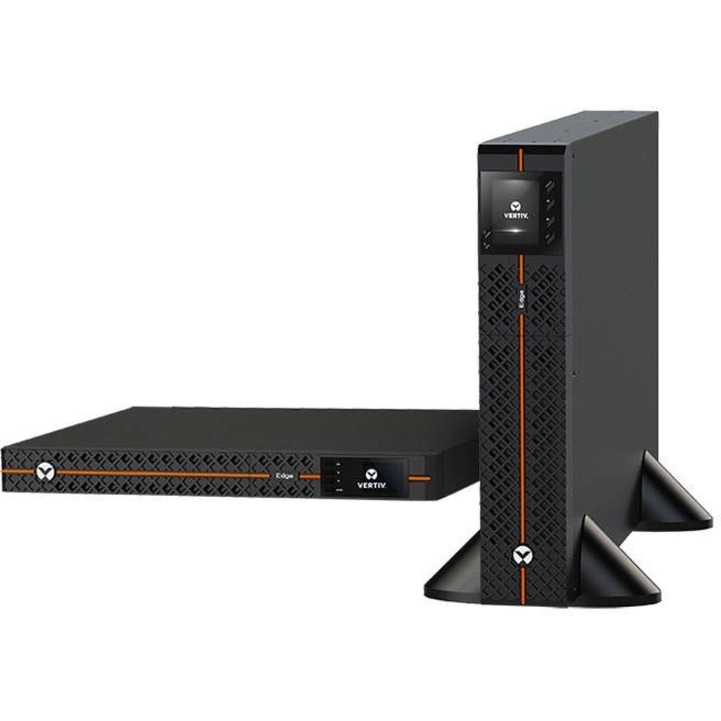

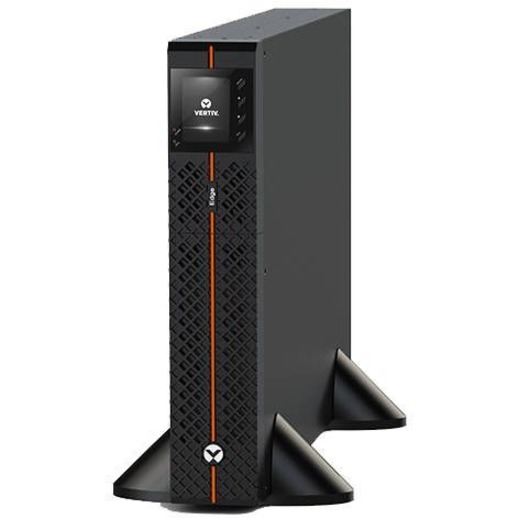

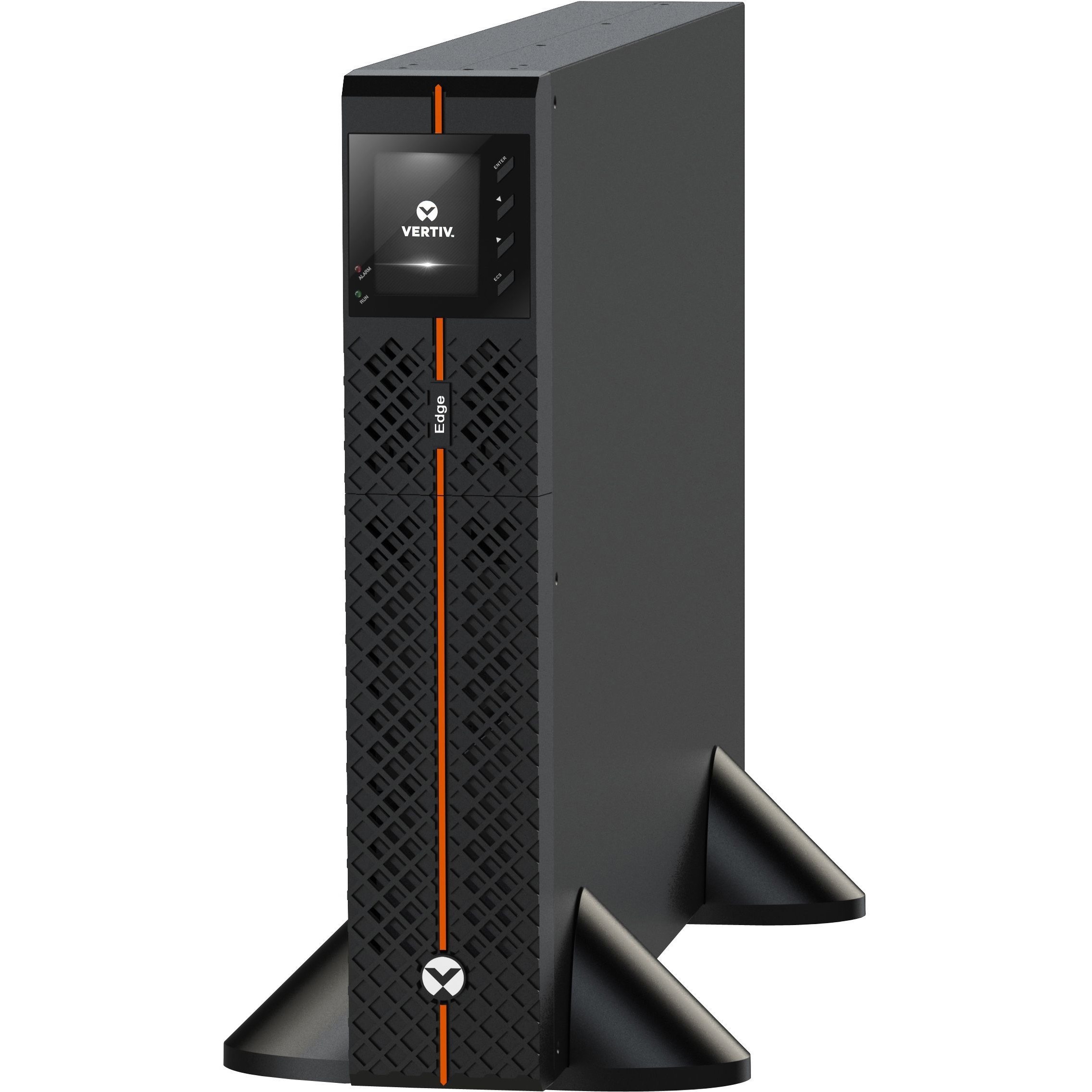

VERTIV EDGE-2200IRT2UXL EDGE 2200VA/1980W 230V UPS

The Vertiv Edge uninterruptible power supply (UPS) is designed to protect server and networking equipment in distributed and Edge IT applications. With 2U convertible rack/tower format, this 2200VA UPS offers reliable protection from downtime and damage caused by power spikes, swells and brownouts. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. With sine wave output, this line interactive UPS ensures availability of network closets and Edge data centers. It operates at up to 98% efficiency in normal operation mode, providing energy savings. Add optional Vertiv Intellislot SNMP/Webcards for remote power management and OS's shutdown with free Vertiv Power Assist software. The Edge family has a wide range of power ratings, from 500VA up to 3000VA and form factors, such as mini-tower, 1U rack and rack/tower. It is easy to install, configure and operate and comes with an intuitive, color LCD screen. It has a standard 3-year Vertiv UPS warranty.

More from the Manufacturer

General Information
Manufacturer	Vertiv
Manufacturer Part Number	EDGE-2200IRT2UXL
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	VERTIV
Product Line	EDGE
Product Model	EDGE-2200IRT2UXL
Product Name	EDGE EDGE-2200IRT2UXL 2200VA Tower UPS
Product Type	Line-interactive UPS
Technical Information
Receptacle Type	IEC 60320 C13
Receptacle Type	IEC 60320 C19
Receptacle Detail	6 x IEC 60320 C13
Receptacle Detail	1 x IEC 60320 C19
Transfer Time	6 ms
Phase	Single Phase
Power Description
Load Capacity (VA)	2200 VA
Load Capacity (Watt)	1980 W
Input Voltage	278 V
Input Voltage Range	144 V AC - 290 V AC
Output Voltage	208 V AC
Output Voltage	230 V AC
Output Voltage	220 V AC
Output Voltage	240 V AC
Output Voltage	200 V AC
Input Frequency	65 Hz
Waveform Type	Pure Sine Wave
Circuit Breaker	Yes
Management
Alarm	Yes
Controls/Indicators
Status Indicators	Color and graphic LCD
Interfaces/Ports
USB	Yes
USB (HID Compliant) Port	Yes
Battery Information
DC System Voltage	72 V DC
Number of Batteries	6
Battery Characteristics	Valve-regulated, Non-spillable
Battery Chemistry	Lead Acid
Battery Size	12V
Battery Capacity	7000 mAh
Backup/Run Time (Full Load)	4.40 Minute
Backup/Run Time (Half Load)	14 Minute
Typical Battery Recharge Time	3 Hour
Hot Swappable	Yes
Environmental Conditions
Maximum Operating Temperature	104°F (40°C)
Storage Temperature	-13°F (-25°C) - 131°F (55°C)
Sound Emission	45 dB
Physical Characteristics
Color Family	Black
Product Color	Black
Height	3.5"
Width	17.2"
Depth	24.8"
Rack Height	2U
Form Factor	Rack/Tower
Weight (Approximate)	59.52 lb
Miscellaneous
Energy Star	No
TAA Compliant	No
