TRIPP LITE

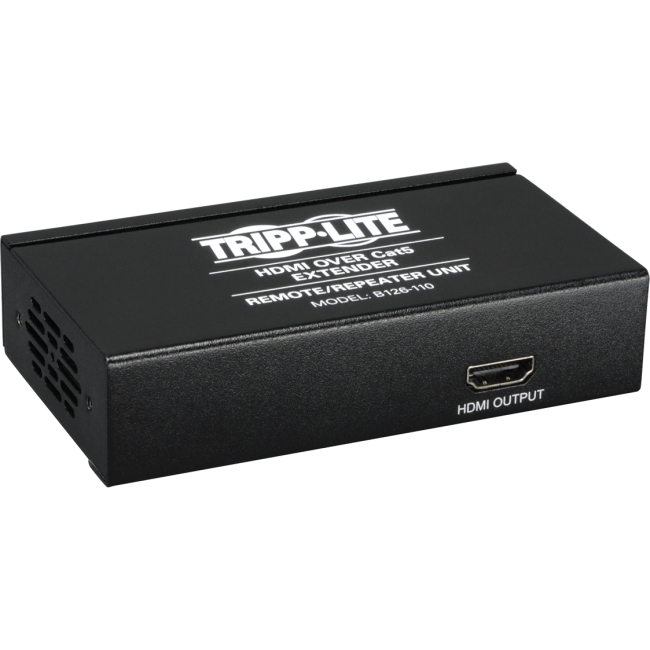

B126-110 Tripp Lite HDMI over Cat5 / Cat6 Remote Extender Repeater for Video and Audio
Mfg Part Number: B126-110 , Item #: 1357688
, PO and Wire.
The B126-110 remote repeater unit can be added to your Tripp Lite B126-Series HDMI over Cat5 installation to increase the extension distance and/or add additional monitors. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple; just insert the B126-110 repeater into the middle of your installation. In the case of a B126-1A1 extender kit, the transmitter is connected to the HDMI source using a Tripp Lite P568-Series HDMI cable (not included). It is then connected via Cat5e/6 cable to the B126-110, which is connected via Cat5e/6 cable to the B126-1A1 receiver unit. Finally, a monitor is connected to each remote receiver and repeater unit using Tripp Lite P568-Series HDMI cable (not included). The B126-110 unit is TAA GSA Compliant.
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B126-110 |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite series |
| Product Model | B126-110 |
| Product Name | B126-110 Video Extender |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 2 |
| Maximum Operating Distance | 700 ft |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 5 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Transmitter Height | 1" |
| Transmitter Width | 4.50" |
| Transmitter Depth | 2.50" |
| Form Factor | Rack-mountable |
| Form Factor | Wall Mountable |
| Form Factor | Pole-mountable |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | TAA |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
