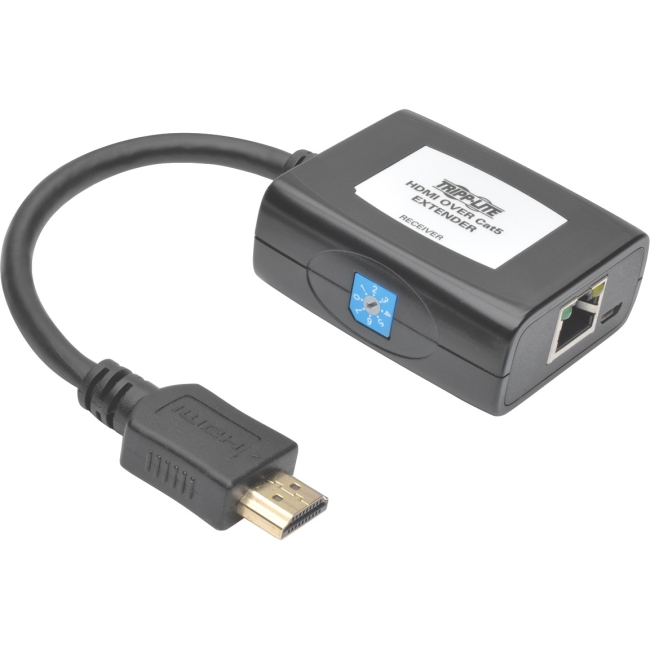

The B126-1A0-U HDMI over Cat5/Cat6 Active Extender works with Tripp Lite's B126-002 or B126-004 transmitter to extend an HDMI audio/video signal to an HDMI projector, monitor or television. It's ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow.
The receiver's built-in HDMI cable connects to the display. Cat5e/6 cable connects the receiver to the B126-Series transmitter(for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series). Power is supplied by the included USB Micro-B to USB-A cable, which connects between the receiver and a USB port on the display or a USB wall charger.
The B126-1A0-U can extend a 1080p(@ 60 Hz) signal up to 125 feet with full, rich stereo. Built-in RJ45 LEDs indicate the units are receiving power and a signal from the source. Built-in equalization control lets you fine-tune the image quality at the display. Easy to set up with no software or drivers to install. Works with all operating systems and HDMI sources.
Features
Extends HDMI Audio/Video Signals to an HDMI Display
Easy to Set Up and Use
TAA-Compliant
System Requirements
General Information | |
Manufacturer | Tripp Lite by Eaton |
Manufacturer Part Number | B1261A0U |
Manufacturer Website Address | https://tripplite.eaton.com/ |
Brand Name | Tripp Lite by Eaton |
Product Model | B126-1A0-U |
Product Name | B126-1A0-U Receiver Unit |
Product Type | Video Extender Receiver |
Technical Information | |
Connectivity Technology | Wired |
Number of Output Devices Supported | 1 |
Maximum Operating Distance | 125 ft |
Video | |
Graphics Modes | Full HD |
Maximum Video Resolution | 1920 x 1080 |
Interfaces/Ports | |
Network (RJ-45) | Yes |
HDMI Out | Yes |
Number of Network (RJ-45) Ports | 1 |
Number of HDMI Outputs | 1 |
Media & Performance | |
Media Type Supported | Twisted Pair |
Twisted Pair Cable Standard | Category 6 |
Miscellaneous | |
Package Contents |
|
Country of Origin | Taiwan |
TAA Compliant | Yes |
Environmentally Friendly | Yes |
Warranty | |
Limited Warranty | 1 Year |
