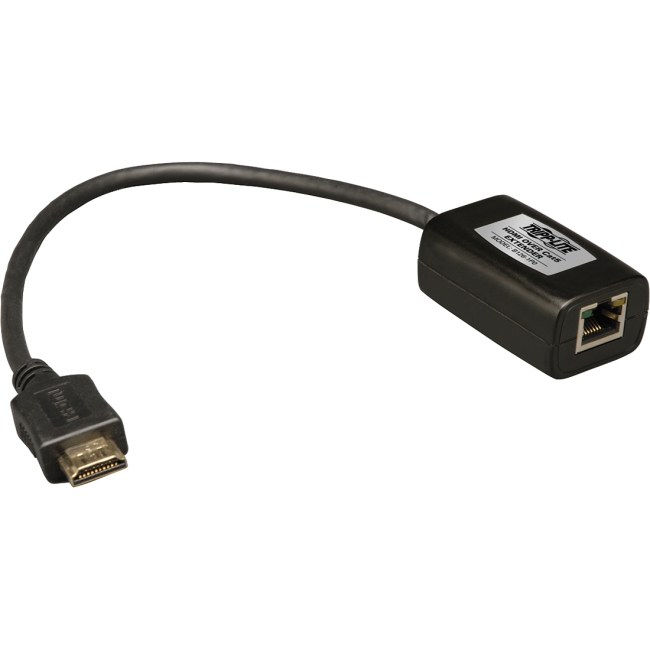

B126-1P0 Tripp Lite HDMI Over Cat5 / Cat6 Extender, Receiver for Video and Audio

The B126-1P0 HDMI over Cat5/Cat6 Passive Remote Receiver works with Tripp Lite's B126-002 and B126-004 transmitters to extend an HDMI signal to multiple projectors, monitors or televisions in a chain. It's ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow.

The B126-1P0 can extend a 1080i (60 Hz) signal up to 100 feet (30.5 m) or a 1080p (60 Hz) signal up to 50 feet (15.2 m) with a single Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series) between it and the transmitter. The built-in HDMI cable features a latching connector that helps prevent accidental disconnection. No external power is required.

In addition to crystal-clear video, the B126-1P0 delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software or drivers to install.

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	B126-1P0
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	B126-1P0
Product Name	B126-1P0 Video Console
Product Type	Video Extender Receiver
Technical Information
Connectivity Technology	Wired
Number of Input Devices Supported	1
Number of Output Devices Supported	1
Maximum Operating Distance	100 ft
Interfaces/Ports
Network (RJ-45)	Yes
HDMI Out	Yes
Number of Network (RJ-45) Ports	1
Number of HDMI Outputs	1
Media & Performance
Media Type Supported	Twisted Pair
Twisted Pair Cable Standard	Category 6
Physical Characteristics
Color Family	Black
Product Color	Black
Form Factor	Desktop
Miscellaneous
Package Contents	B126-1P0 Video Console Owner's Manual
Certifications & Standards	TAA HDCP
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Warranty
Limited Warranty	1 Year
