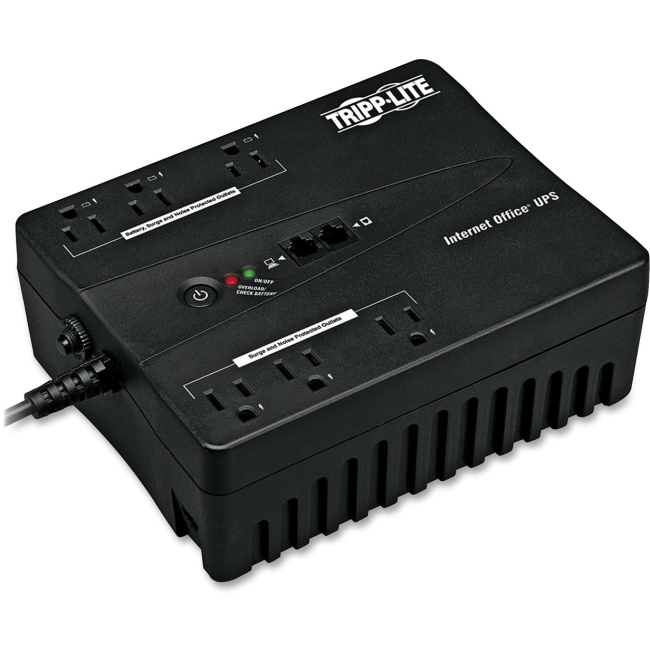

The standby INTERNET350U UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The six-outlet 120V battery backup is ideal protection for your home office, media center or commerce components, including computers, routers, printers, NAS drives, HDTVs, Blu-ray players, game consoles, media players, DVRs and audio receivers.
Allows Time to Back Up Critical Files During a Blackout
Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the INTERNET350U should keep an energy-efficient desktop computer with small LCD monitor powered as long as 13 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will always be available.
6 NEMA 5-15R Outlets Protect Your Connected Components
Three 5-15R outlets provide battery backup and surge protection for your computer, monitor and other crucial components. The other three 5-15R outlets provide surge suppression only for printers, speakers and other desktop equipment regarded as non-essential during a blackout. Each outlet offers wide spacing to accommodate bulky transformer plugs. A high >98% line mode efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.
316 Joules Fight Back Against Unexpected Power Surges
A 316-joule surge suppression rating protects connected components from the harmful effects of power surges. Dual network data line surge suppression jacks protect a wired peripheral from dangerous surges on a single 10/100Base-T or dial-up network connection.
HID-Compliant USB Port Allows for Automatic Saves and Shutdowns
This USB port connects the INTERNET350U to a computer running free downloadable PowerAlert® software to enable safe unattended file saves and system shutdown in case of a prolonged power failure. USB cable is included.
Combats Electromagnetic Interference That Can Harm Equipment
Various electromagnetic and radio sources found in virtually every home and business can cause disruptive interference on the AC line. Known as EMI (electromagnetic interference) and RFI (radio frequency interference), this line noise is a common cause of performance problems and can lead to incremental hardware damage, data corruption and audio/video transmission problems. The INTERNET350U incorporates technology that filters out disruptive line noise so that it won't affect your equipment.
Home-Friendly Alarm and Diagnostic LEDs Keep You Informed 24/7
The UPS remains silent in both line and battery backup modes. The alarm sounds only to warn you of a low battery or fault condition. A front-panel green LED indicates operating mode and fault status.
General Information | |
Manufacturer | Tripp Lite by Eaton |
Manufacturer Part Number | INTERNET350U |
Manufacturer Website Address | https://tripplite.eaton.com/ |
Brand Name | Tripp Lite by Eaton |
Product Model | INTERNET350U |
Product Name | INTERNET350U 350VA Ultra-compact Desktop/Tower/Wall Mount UPS |
Packaged Quantity | 1 Each |
Product Type | Standby UPS |
Technical Information | |
Plug/Connector Type | NEMA 5-15P |
Receptacle Type | NEMA 5-15R |
Receptacle Detail | 6 x NEMA 5-15R |
Number of Surge-only Outlets | 3 |
Dataline Protection | RJ-11 |
Overload Protection | Yes |
Cord Length | 6 ft |
Transfer Time | 6 ms |
Phase | Single Phase |
Application/Usage | Audio Receiver |
Application/Usage | Computer |
Application/Usage | Media Player |
Application/Usage | Home/Office |
Application/Usage | DVR |
Application/Usage | Printer |
Application/Usage | Router |
Application/Usage | HDTV |
Application/Usage | Blu-ray Player |
Power Description | |
Load Capacity (VA) | 350 VA |
Load Capacity (Watt) | 210 W |
Input Voltage | 120 V AC |
Output Voltage | 110 V AC |
Output Voltage | 120 V AC |
Output Voltage | 115 V AC |
Output Frequency | 60 Hz |
Waveform Type | Pure Sine Wave |
Surge Energy Rating | 316 J |
Management | |
Alarm | Overload |
Alarm | UPS Fault |
Alarm | Low Battery |
Controls/Indicators | |
Status Indicators |
|
Interfaces/Ports | |
USB | Yes |
USB (HID Compliant) Port | Yes |
Battery Information | |
DC System Voltage | 12 V DC |
Battery Characteristics | Valve-regulated |
Battery Chemistry | Lead Acid |
Backup/Run Time (Full Load) | 2 Minute |
Backup/Run Time (Half Load) | 7 Minute |
Battery Life | 6 Year |
Hot Swappable | Yes |
Typical Battery Recharge Time | 6.50 Hour |
Replaceable Battery | Yes |
Environmental Conditions | |
Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
Minimum Operating Temperature | 32°F (0°C) |
Maximum Operating Temperature | 104°F (40°C) |
Sound Emission | 40 dB |
Physical Characteristics | |
Product Color | Black |
Height | 4.1" |
Width | 4.3" |
Depth | 7.3" |
Rack Height | 2U |
Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
Weight (Approximate) | 3.96 lb |
Miscellaneous | |
Package Contents | |
Software Included | PowerAlert Software |
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
Country of Origin | Vietnam |
Warranty | |
Limited Warranty | 2 Year |
Additional Warranty Information | 2 year warranty. $100,000connected equipment insurance (USA, Puerto Rico, & Canada Only). |
General Information | |
Power Rating | 350 VA |
Output Voltage Rating | 120 V |
Number of Outputs | 6 |
Runtime-Full Load | 2.5 min |
Runtime-Half Load | 8 min |
MODEL- INTERNET350U VENDOR- TRIPPLITE FEATURES- Internet Office UPS System- Black finish Ultra-compact standby UPS offers complete protection for PC and workstations; 6 widely spaced outlets (3 UPS/surge, 3 surge-only); USB port, cabling and included PowerAlert monitoring software; Single line TEL/DSL modem suppression; $100,000 Ultimate Lifetime Insurance (USA, Puerto Rico & Canada only). Tripp Lites INTERNET350U standby UPS offers complete protection for PCs, workstations and other sensitive electronics in an attractive ultra-compact, mountable housing. Prevents data loss and system downtime by providing battery supported AC output during brownouts and blackout conditions. 6 widely spaced output receptacles accommodate large transformer plugs without blocking outlets. 3 outlets with full battery support and surge suppression protect computers, monitors and other vital system components from loss of power. 3 additional outlets with surge suppression-only are ideal for printers and other accessories not requiring battery support. Single line telephone suppression jacks protect a single directly connected modem, fax machine, cordless phone or other peripheral on a single standard dialup or DSL phone line connection. USB port with PowerAlert monitoring software and cabling enables safe unattended system shutdown in the case of extended power failure. Audible alarm and front panel LEDs offer status information regarding line and battery power operation. 350VA/180 watt power handling ability supports entry-level PCs for up to 15 minutes during power failures. Find the TrippLite UPS appropriate for your needs. Try the TrippLite UPS Sizing Guide Today. Includes INTERNET350 UPS System, PowerAlert Software & USB cable, Instruction manual with warranty information. * INTERNET350U standby UPS offers complete protection from blackouts, brownouts and surges on both AC and TEL/DSL line connections. * 6 widely spaced outlets accommodate large transformer plugs without blocking outlets. * 3 battery supported outlets protect computer, monitor and vital system peripherals, plus 3 additional surge suppression-only outlets for printers and other system accessories not requiring battery support. * Provides battery derived AC output during blackouts and brownouts. * 350VA/180 watt power handling ability supports a variety of PCs, workstations and other sensitive electronics. * Supports entry-level PC systems up to 15 minutes during blackout conditions. * Built-in single line TEL/DSL line surge suppression protects modems, fax machines or cordless phones on a single phone line connection. * USB port, PowerAlert software and cabling offer safe unattended shutdown without data loss during extended outages. * Supports Tripp Lites Watchdog system service to restore operation to locked equipment through soft reboot of application/OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications. * Hot swappable user battery replacement supported via battery access door. * Space saving, ultra-compact housing fits almost anywhere. -- SPECIFICATIONs ----------------------------------- OUTPUT - Volt amp capacity : 350 VA Watt capacity : 180 Watts Nominal voltage : 120V AC Voltage regulation: BATTERY MODE: PWM sine wave output 115V +/-5%. Frequency regulation: LINE MODE: Passes line frequency of 60Hz +/-10%. BATTERY MODE: Inverter output regulated to 60Hz +/-0.5Hz. Outlets : (6) NEMA 5-15R output receptacles (3 with UPS and surge suppression/ 3 with surge-only). INPUT - Maximum amps/watts: 12A/1440 watts Connection type : NEMA 5-15P Cord length : 6 ft., 16 gauge Recommended Service: 15A 120VAC BATTERY - Full load runtime : 4 minutes (350VA) Half load runtime : 12 minutes (175VA) DC system voltage : 12 VDC Typical lifespan : 3~6 years, depending on usage Recharge rate : 2~4 hours to 90% Battery Access : Hot-swappable batteries are accessible via battery door. LEDS ALARMS & SWITCHES- Front panel LEDs : 2 LEDs indicate line power, battery power status. Alarms : Audible alarm beeps at regular intervals to indicate battery backup operation. Alarm also sounds during self-test operation. Switches : Combination power off/on/self-test push button switch. SURGE/NOISE SUPPRESSION- AC suppression : 380 joules AC suppression response time: Instantaneous Dataline suppression: Single line TEL/DSL surge suppression with RJ modular connectors (center 2 wires protected, 260V clamping). 1 input jack and 1 output jack. Includes 1 phone cable. EMI/RFI AC noise suppression: Yes, >40dB @ 1 MHz COMMUNICATIONs - Network monitoring port: Single built-in USB port supports on battery, low battery and power restored messaging. Interface supports timed inverter shutoff after unattended shutdown. Compatible with Tripp Lites PowerAlert and Watchdog service software. Software & cabling: Includes USB cable and PowerAlert UPS monitoring software. WatchDog compatibility: Yes, compatible with Tripp Lites Watchdog system service to restore operation to locked equipment through soft reboot of application/OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications. LINE/BATTERY TRANSFER- Transfer time line to battery mode: 2~4 milliseconds Low voltage transfer: Switches to battery power as line voltage decreases to 98 volts or less. Resets back to line power mode as line voltage increases to 103V or higher. High voltage transfer: Switches to battery power as line voltage increases to 147V or higher. Resets back to line power as line voltage decreases to 143V or less. COLD START - Yes, inverter can be "cold started" to enable temporary AC output during a power failure. CONSTRUCTION- ABS FORM FACTOR - Ultra-compact desk/floor mount APPROVALS - UL1778 (USA), cUL (Canada), FCC Class B (Emissions), NOM (Mexico), FCC Part 68/Industry Canada (telecommunications). DIMENSIONS - 10.5"w x 7.6"h x 5.0"d WT.- 7.7 lbs. www.tripplite.com
