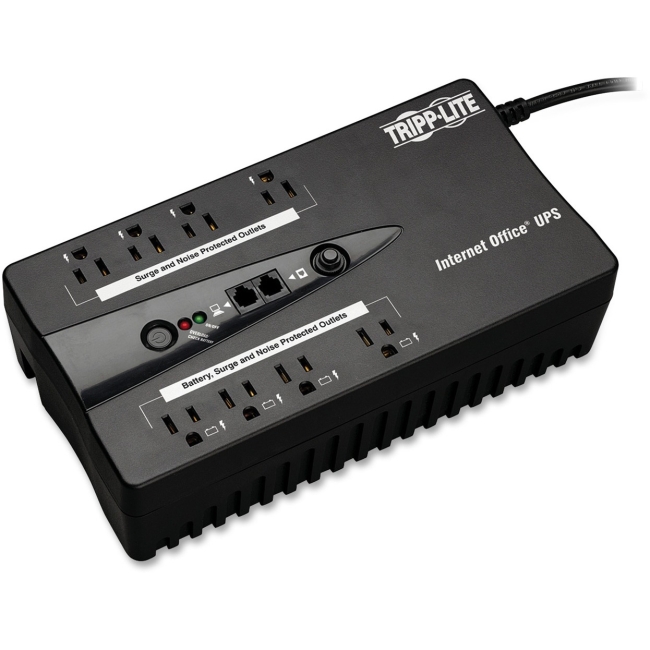

UPS offers standby protection for PCs and peripherals to prevent data loss and system downtime by providing battery-supported AC output during brownouts and blackouts. Two of the 8 output receptacles are widely spaced to accommodate large transformer plugs. Four outlets with full battery support and surge suppression protect computers, monitors and other vital system components from loss of power. Four additional outlets with surge suppression-only are ideal for printers and other accessories not requiring battery support. Single-line, telephone suppression jacks protect modem or other peripherals with a standard dialup or DSL phone line connection. HID-compliant USB interface enables integration with built-in power management and auto-shutdown features of Windows and Mac OS X. Audible alarm and front panel LEDs offer status information regarding line and battery power operation. 550VA/300 watt power handling ability supports entry-level PCs for up to 17 minutes during power failures.
General Information | |
Manufacturer | Tripp Lite by Eaton |
Manufacturer Part Number | INTERNET550U |
Manufacturer Website Address | https://tripplite.eaton.com/ |
Brand Name | Tripp Lite by Eaton |
Product Line | Internet Office |
Product Model | INTERNET550U |
Product Name | Internet Office INTERNET550U 550VA UPS |
Packaged Quantity | 1 Each |
Product Type | Standby UPS |
Technical Information | |
Plug/Connector Type | NEMA 5-15P |
Receptacle Type | NEMA 5-15R |
Receptacle Detail | 10 x NEMA 5-15R |
Number of Battery & Surge Outlets | 5 |
Number of Surge-only Outlets | 5 |
Dataline Protection | RJ-11 |
Dataline Protection | RJ-45 |
Cord Length | 5 ft |
Transfer Time | 6 ms |
EMI/RFI Noise Filter | Yes |
Phase | Single Phase |
Energy Saving | Greater than 95% efficiency - GREEN UPS |
Application/Usage | Computer |
Application/Usage | Media Player |
Application/Usage | Home/Office |
Application/Usage | DVR |
Application/Usage | Audio System |
Application/Usage | Media Center |
Application/Usage | Printer |
Application/Usage | TV |
Application/Usage | Router |
Application/Usage | Gaming Console |
Application/Usage | Storage Device |
Application/Usage | Commercial |
Application/Usage | Blu-ray Player |
Power Description | |
Load Capacity (VA) | 550 VA |
Load Capacity (Watt) | 300 W |
Input Voltage | 120 V AC |
Input Current | 12 A |
Output Voltage | 115 V AC |
Output Voltage | 120 V AC |
Output Voltage | 110 V AC |
Output Frequency | 60 Hz |
Waveform Type | Pure Sine Wave |
Surge Energy Rating | 316 J |
Management | |
Alarm | Overload |
Alarm | Low Battery |
Alarm | Replace Battery |
Alarm | Fault |
Controls/Indicators | |
Status Indicators | 1 x Status LED reports operating mode and fault status |
Interfaces/Ports | |
USB (HID Compliant) Port | Yes |
Battery Information | |
DC System Voltage | 12 V DC |
Backup/Run Time (Full Load) | 1.20 Minute |
Backup/Run Time (Half Load) | 5 Minute |
Typical Battery Recharge Time | 6.50 Hour |
Replaceable Battery | Yes |
Environmental Conditions | |
Maximum Operating Elevation | 10000 ft |
Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
Physical Characteristics | |
Height | 4.1" |
Width | 4.3" |
Depth | 7.3" |
Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
Weight (Approximate) | 3.97 lb |
Miscellaneous | |
Package Contents |
|
Software Included | PowerAlert Software |
Country of Origin | Vietnam |
Warranty | |
Limited Warranty | 3 Year |
Additional Warranty Information | 2 year warranty. $100,000connected equipment insurance (USA, Puerto Rico & Canada Only). |
General Information | |
Power Rating | 550 VA |
Output Voltage Rating | 120 V |
Number of Outputs | 8 |
Runtime-Full Load | 3 min |
Runtime-Half Load | 10 min |
Main Specifications |
Product Description | Tripp Lite Internet Office INTERNET550U - UPS - 550 VA - UPS battery |
Device Type | UPS |
Form Factor | External |
Dimensions (WxDxH) | 11.3 in x 6 in x 3.5 in |
Weight | 11 lbs |
Input Voltage | AC 120 V |
Output Voltage | AC 115 V ± 5% ( 60 Hz ) |
Power Provided | 550 VA |
Output connector(s) | 8 x power NEMA 5-15 |
Battery | UPS battery |
Battery Form Factor | Plug-in module |
Manufacturer Warranty | 2 years warranty |
General | |
Device Type | UPS |
Form Factor | External |
Battery Enclosure Type | Plug-in module |
Width | 11.3 in |
Depth | 6 in |
Height | 3.5 in |
Weight | 11 lbs |
Power Device | |
UPS Technology | Off-line |
Input Voltage | AC 120 V |
Frequency Required | 60 Hz |
Input Connector(s) | 1 x power NEMA 5-15 |
Output Voltage | AC 115 V ± 5% ( 60 Hz ) |
Output connector(s) | 8 x power NEMA 5-15 |
Power Output Connectors Details | 4 x power NEMA 5-15 ( surge ) 4 x power NEMA 5-15 ( UPS and surge ) |
Power Provided | 550 VA |
Dataline Surge Protection | Phone line - RJ-11 |
Output Waveform | Sinewave |
Surge Suppression | Standard |
Energy Rating | 1170 Joules |
Battery | |
Type | UPS battery |
Expansion / Connectivity | |
Interfaces | 1 x USB - 4 pin USB Type A |
Miscellaneous | |
Cables Included | 1 x phone cable - 6 ft 1 x USB cable 1 x phone cable |
Equipment Protection Value | 100000 US Dollars |
Features | Audible alarm, LED display |
Compliant Standards | FCC Class B certified, CSA, TUV, UL 1778, FCC Part 68, IC, DOC |
Software / System Requirements | |
Software Included | TrippLite PowerAlert |
Manufacturer Warranty | |
Service & Support | 2 years warranty |
Service & Support Details | Limited warranty - 2 years |
