HANWHA TECHWIN

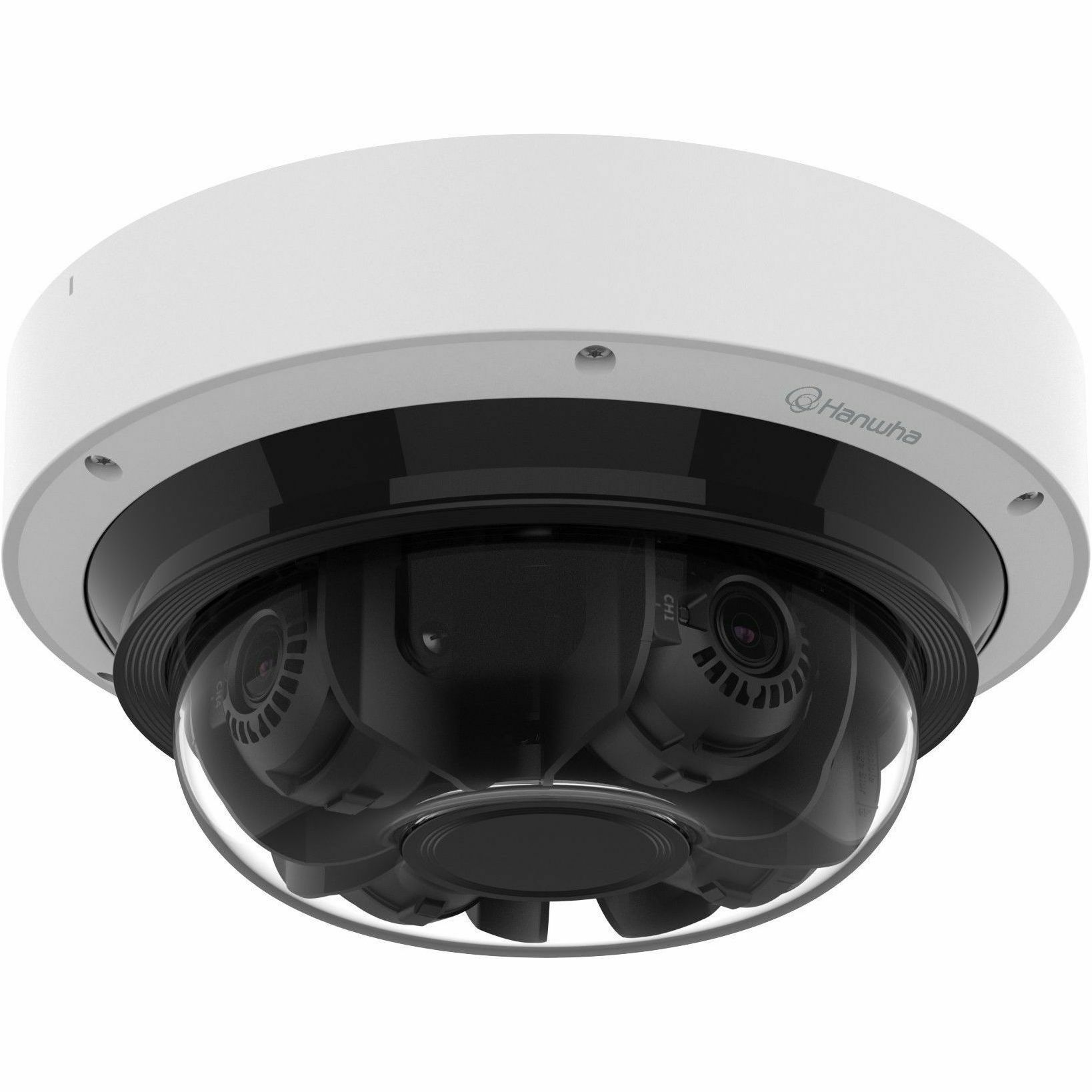

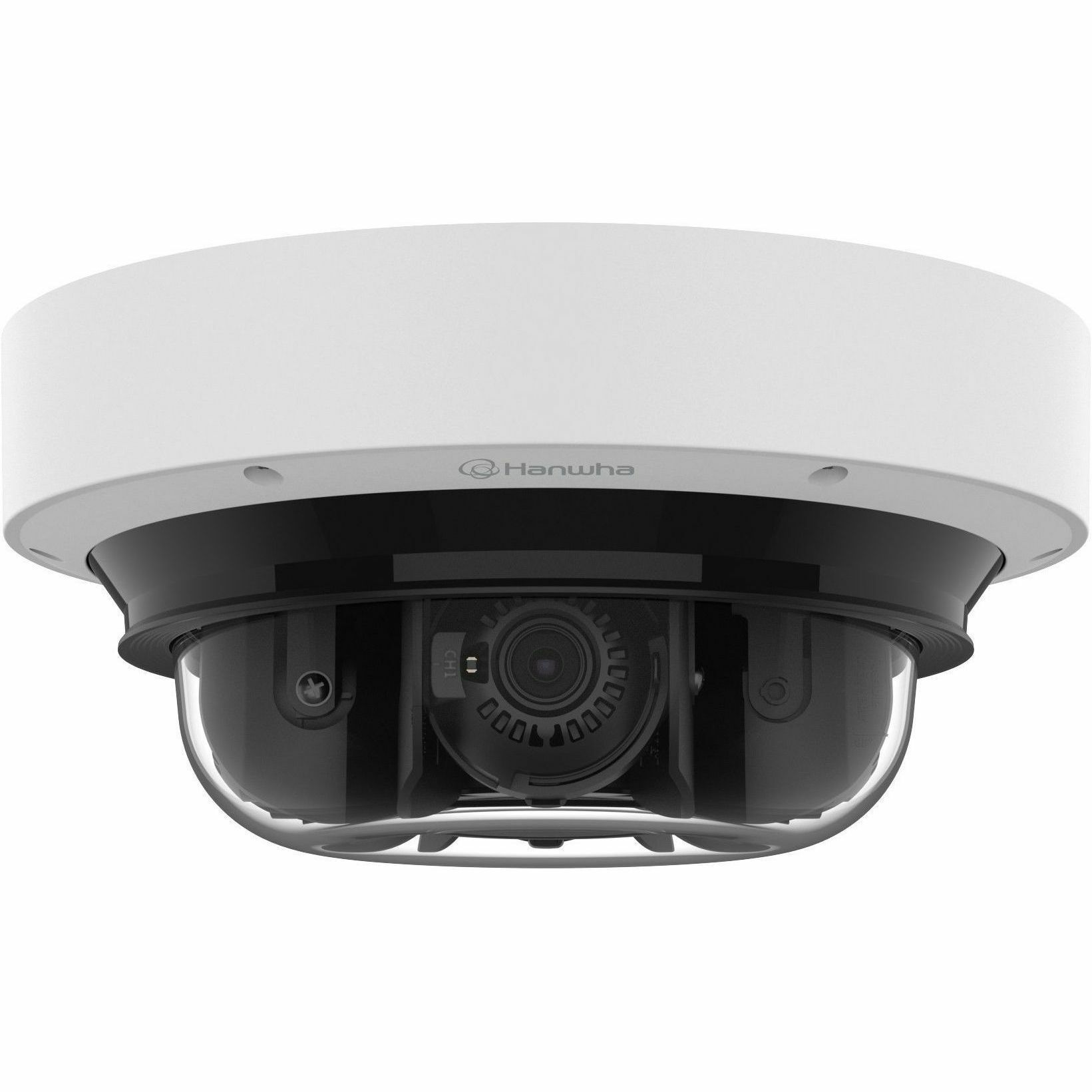

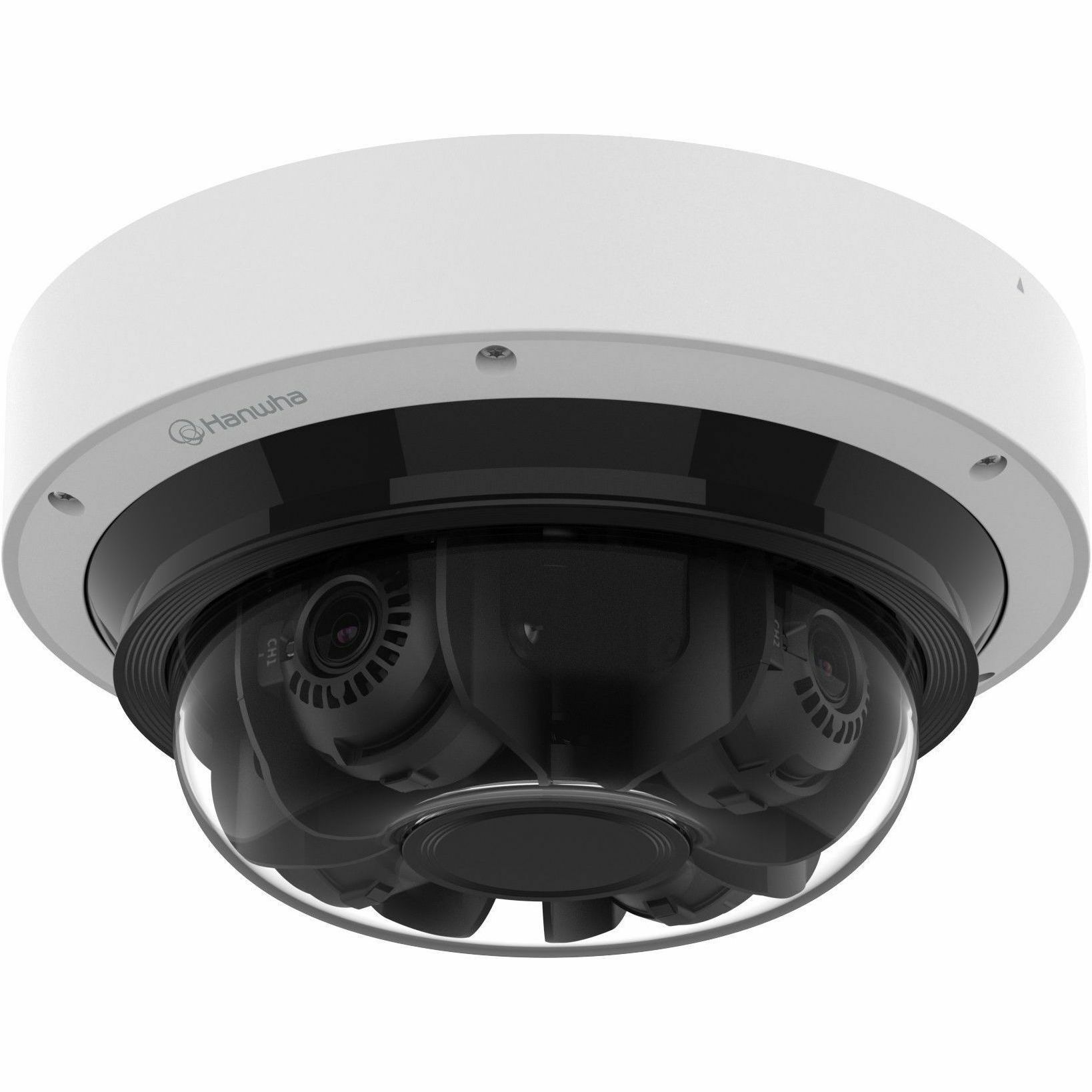

HANWHA TECHWIN PNM-C32083RVQ Wisenet P series network vandal outdoor Multi-Directional camera 4CH x 8MP @ 20FPS Motorized Varifocal Lens 3.54~6.69mm (FoV H: 110u00b0 V: 57u00b0) triple codec H.265/H.264/MJPEG 120dB WDR; IR viewable length 20m (65.6ft) USB port for easy install

Mfg Part Number:  PNM-C32083RVQ
Image may not reflect the actual item.
Price: $3,785.33 + Free Shipping
Quantity:
More to Come
Last Updated: Mar 16, 2026
No Sales Tax except these states
, PO and Wire.

The PNM-C32083RVQ is a unique, high-resolution multi-sensor multi-directional camera capable of providing 8MP on each of its' 4 sensors. Each sensor can be manually adjusted for pan along the track, tilt & rotation, along with motorized zoom, & focus control. The powerful AI capabilities enhance the license-free video analytics to reduce false alarms and provide quick and accurate forensic search with a compatible VMS.

Main Specification
General Information
Manufacturer Hanwha Group
Manufacturer Part Number PNM-C32083RVQ
Manufacturer Website Address http://www.hanwha.com
Brand Name Hanwha
Product Model PNM-C32083RVQ
Product Name PNM-C32083RVQ Network Camera
Product Type Network Camera
Technical Information
Recording Formats 4K
HD Recording Yes
Night Vision Yes
Night Vision Distance 65.62 ft
Night Vision Type Infrared
Camera Iris Fixed
Display & Graphics
Image Sensor Type CMOS
Image Sensor Size 1/2.8"
Color Supported Color
Field of View Horizontal: 109°, Vertical: 55°, Diagonal: 136°
Effective Camera Resolution 32 Megapixel
Number of Sensors 4
Video
Video Formats H.265M
Video Formats H.265B
Video Formats MJPEG
Video Formats H.264H
Video Formats H.264
Video Formats H.265
Video Formats H.264M
Video Formats H.264B
Video Formats H.265H
Maximum Video Resolution 3840 x 2160
Maximum Frame Rate 20 fps
Lens
Lens Type Varifocal
Minimum Focal Length 3.30 mm
Maximum Focal Length 5.70 mm
Lens Included Yes
Minimum Aperture f/1.9
Maximum Aperture f/1.5
Optical Zoom 1.7x
Exposure
Shortest Shutter Speed 1/12000 Second
Longest Shutter Speed 1/5 Second
Network & Communication
Connectivity Technology Wired
Ethernet Technology Gigabit Ethernet
Protocols QoS
Protocols IPv4
Protocols RTP/TCP
Protocols ARP
Protocols DNS
Protocols UPnP
Protocols IPv6
Protocols NTP
Protocols SNMPv1/v2c/v3 (MIB2)
Protocols RTP/UDP
Protocols DDNS
Protocols LLDP
Protocols RTSP
Protocols MQTT
Protocols UDP/IP
Protocols TCP/IP
Protocols RTCP
Protocols HTTP
Protocols FTP
Protocols IGMP
Protocols Bonjour
Protocols HTTPS
Protocols SSL/TLS
Protocols DHCP
Protocols SMTP
Protocols ICMP
Protocols UPnP (SSDP)
Remote Management Yes
Storage
Storage Type Memory Card
Interfaces/Ports
USB Yes
Network (RJ-45) Yes
Power Description
Maximum Power Consumption 33 W
Power Source Type PoE+
Power Source Type HPoE
Physical Characteristics
Mount Type Gang Box Mount
Mount Type Conduit Mount
Mount Type Hanging Mount
Form Factor Dome
Color Family White
Product Color White
Diameter 9.8"
Weight (Approximate) 6.22 lb
Environmental Conditions
Minimum Operating Temperature -40°F (-40°C)
Maximum Operating Temperature 131°F (55°C)
Maximum Operating Humidity 95%
Miscellaneous
Features Day/Night
Features Wide Dynamic Range
Features Alarm Triggering
Features Privacy Masking
Features AI Analytics
Features Gain Control
Features Human Detection
Features Back Light Compensation (BLC)
Features Motion Detection
Features Vehicle Detection
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
Ingress Protection Rating IP66
Country of Origin Korea
Warranty
Limited Warranty 5 Year
