HANWHA TECHWIN
HANWHA TECHWIN SPO-8315 83W HPoE Injector Fully compliant with IEEE802.3af/at PoE++ Built-in SFP slot Compatible with XNP-9300RW / XNP-8300RW / XNP-6400RW PNM-9085RQZ / PNM-9084RQZ / PNM-9322VQP
Mfg Part Number: SPO-8315 , Item #: 4792977
Image may not reflect the actual item.
Price: $501.22
+ Free Shipping
Quantity:
More to Come
Last Updated: Mar 06, 2026
No Sales Tax except these states
, PO and Wire.

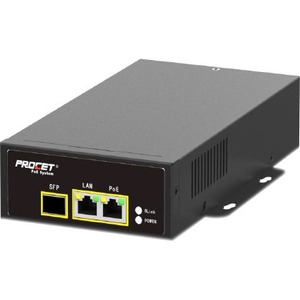

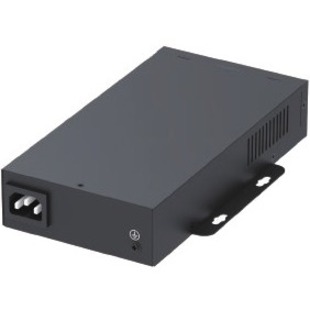

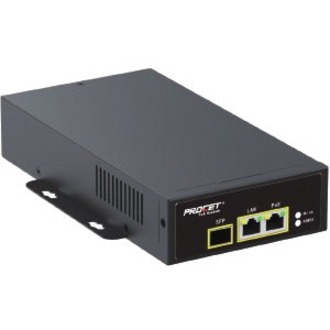

The SPO-8315 injects Power over data-carrying Ethernet cabling. It follows the IEEE802.3BT/IEEE802.3AT/IEEE802.3AF standards and is compatible with existing Ethernet switches and networked devices. Injector provides up to 83W HPoE/POE++, Built-in SFP slot. Compatible with XNP-9300RW / XNP-8300RW / XNP-6400RW, PNM-9085RQZ / PNM-9084RQZ / PNM-9085RQZ' / PNM-9084RQZ' / PNM-9320VQP / PNM-9321VQP / PNM-9322VQP
Main Specification
| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | SPO-8315 |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Model | SPO-8315 |
| Product Name | 83W PoE Injector |
| Product Type | PoE Injector |
| Technical Information | |
| Protection Type | Surge Protection |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Maximum Output Voltage | 55 V DC |
| Maximum Input Current | 2 A |
| Maximum Output Current | 1.50 A |
| Maximum Output Power | 83 W |
| Interfaces/Ports | |
| Input Ports | 1 x SFP |
| Input Ports | 1 x 10/100/1000Base-T |
| Output Ports | 1 x 10/100/1000Base-T |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Wall Mountable |
| Mount Type | Wall Mountable |
| Height | 1.6" |
| Width | 8.4" |
| Depth | 5.3" |
| Weight (Approximate) | 2.43 lb |
| Miscellaneous | |
| Compatibility | Hanwha Techwin PTZ Network Cameras:
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
