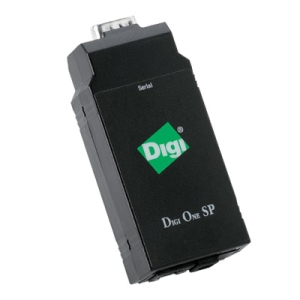

70001851 Digi One SP 1 port RS-232/422/485 DB-9 Serial to Ethernet Device Server includes 12V/.5A Wall Mount power supply w/ US plug
Mfg Part Number: 70001851 , Item #: 205438
Image may not reflect the actual item.
Price: $267.30
Quantity:
In Stock: 1119
Last Updated: Oct 27, 2025
No Sales Tax except these states
, PO and Wire.
The Digi One SP device server easily allows any device with a serial port to connect to the Ethernet. The compact design of the Digi One SP delivers cost-effective performance and capability in one of the smallest form factors available.
Main Specification
| General Information | |
| Manufacturer | Digi International |
| Manufacturer Part Number | 70001851 |
| Manufacturer Website Address | http://www.digi.com |
| Brand Name | Digi |
| Product Line | Digi One |
| Product Model | Digi One SP |
| Product Name | One SP Device Server |
| Product Type | Device Server |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of Serial Ports | 1 |
| Power Description | |
| Input Voltage | 110 V AC |
| Input Voltage | 220 V AC |
| Input Current | 400 mA |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 3.7" |
| Width | 1.7" |
| Depth | 0.9" |
| Weight (Approximate) | 2.24 oz |
| Miscellaneous | |
| Additional Information |
|
| Compatibility | OPERATING SYSTEMS:
|
| Certifications & Standards |
|
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | You can purchase with confidence knowing that Digi is here to support you with expert technical support |
| Mechanical | |
| Dimensions: WxHxD (mm) | 94 x 43 x 23 |
| Mounting | Din Rail Mount |
| Enclosure | - |
| Interface | |
| Serial interface | RS232/RS422/RS485 |
| Serial interface number of ports | 1 |
| Serial Interface type of connector | DB9 |
| Network interface | 1 Port Ethernet RJ45 Connector |
| Network interface number of ports | 1 |
| Network interface type of connector | RJ45 |
| Power | |
| Power Input Type | Single DC / Jack |
| Operating Supply Voltage | 9 to 30 VDC |
| Power Consumption | 6W |
| Reliability | |
| Operating Temperature | 10 to 45C |
| Isolation Protection | - |
| Surge Protection | Yes |
| Standards and Certifications | FCC Part 15, CISPR (EN55022) class A |
The Digi One SP device server easily allows any device with a serial port to be connected to the Ethernet. The compact design of the Digi One SP delivers cost-effective performance and capability in one of the smallest form factors available.
Part of Digi’s broad device server offering, the Digi One SP delivers standard serial-to-Ethernet connectivity and is ideal for serial tunneling applications or where TCP Socket, UDP Socket, or UDP
Multicast functionality is needed. Serial tunneling allows two previously non-networked and isolated devices to easily communicate information and operate with existing installed software applications on an Ethernet network, instead of a long serial cable. The Digi One SP works with software applications using TCP/UDP Sockets allowing a serial device to interoperate with the software applications without the need to install a driver.
The Digi One SP is easy to install locally or remotely through a variety of IP addressing methods (DHCP, RARP, ARP-Ping) along with an application (included on the installation CD that accompanies the product) that will automatically detect all Digi One SP devices on your network. Also included is a quick-start guide that supports making
the network configuration of the product easy and hassle-free.
Features:
TCP/UDP socket services
UDP Multicast
Telnet and Reverse Telnet
HTTP
DHCP/RARP/ARP-Ping for IP Address
assignment
10/100BASE-T Ethernet support
DB-9M serial connector
EIA-232/422/485 switch selectable
Baud rates up to 230Kbps
Full modem and hardware flow control
LED status for link and power
Connectivity
10/100Mbps Ethernet port : 1
Serial port : 1
Part of Digi’s broad device server offering, the Digi One SP delivers standard serial-to-Ethernet connectivity and is ideal for serial tunneling applications or where TCP Socket, UDP Socket, or UDP
Multicast functionality is needed. Serial tunneling allows two previously non-networked and isolated devices to easily communicate information and operate with existing installed software applications on an Ethernet network, instead of a long serial cable. The Digi One SP works with software applications using TCP/UDP Sockets allowing a serial device to interoperate with the software applications without the need to install a driver.
The Digi One SP is easy to install locally or remotely through a variety of IP addressing methods (DHCP, RARP, ARP-Ping) along with an application (included on the installation CD that accompanies the product) that will automatically detect all Digi One SP devices on your network. Also included is a quick-start guide that supports making
the network configuration of the product easy and hassle-free.
Features:
TCP/UDP socket services
UDP Multicast
Telnet and Reverse Telnet
HTTP
DHCP/RARP/ARP-Ping for IP Address
assignment
10/100BASE-T Ethernet support
DB-9M serial connector
EIA-232/422/485 switch selectable
Baud rates up to 230Kbps
Full modem and hardware flow control
LED status for link and power
Connectivity
10/100Mbps Ethernet port : 1
Serial port : 1

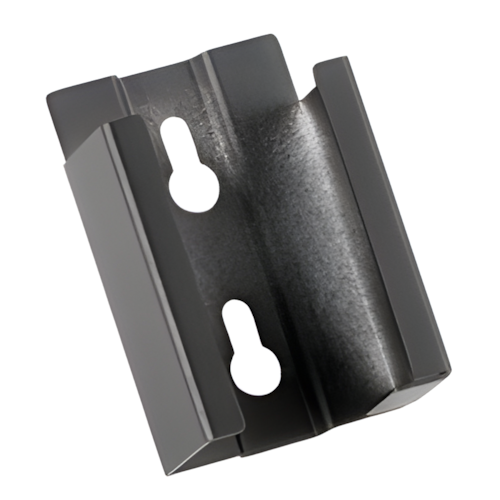

Mounting Kits
