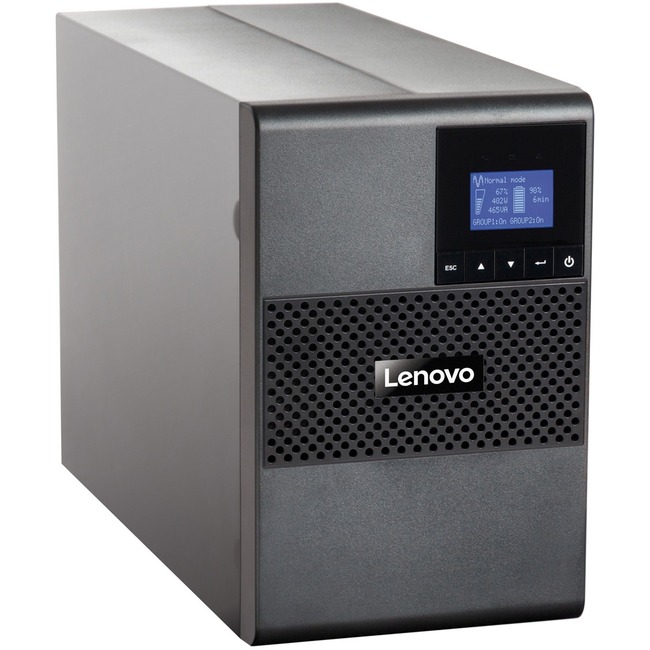

55951AX Lenovo T1kVA - UPS - AC 100-125 V - 770 Watt - 1000 VA 9 Ah - Ethernet 10/100, RS-232, USB - output connectors: 8

The T1kVA and T1.5kVA Tower Uninterruptible Power Supply (UPS) offerings provide power protection with increased efficiency and simplified power management to safeguard the high-availability of Lenovo server environments. With efficiency ratings of up to 97%, these compact tower designs can help reduce energy usage without compromising performance or reliability.

Did you know?

T1kVA and T1.5kVA Tower UPS units feature Advanced Battery Management (ABM) technology that uses a unique three-stage charging technique that significantly extends battery service life and optimizes recharge time, compared to traditional charging.

T1kVA and T1.5kVA Tower UPS units can enhance system availability with individual receptacle groups or load segments that can be programmed and controlled, which allows mission-critical devices to be prioritized during shutdown to preserve battery run time if there is a prolonged power outage.

T1kVA and T1.5kVA Tower UPS units come standard with UPS Power Manager (UPM) power management software that integrates seamlessly with the major virtual platforms, which enables you to view and manage your entire power system from your current dashboard. It also triggers live migration during power outages and avoids data loss by gracefully shutting down virtual machines and hosts in a cluster if there is an extended power outage.

General Information
Manufacturer	Lenovo Group Limited
Manufacturer Part Number	55951AX
Manufacturer Website Address	http://www.lenovo.com/us/en/
Brand Name	Lenovo
Product Model	T1kVA
Product Name	T1kVA Tower UPS
Product Type	Line-interactive UPS
Technical Information
Application/Usage	Server
Application/Usage	Virtual Machine
Power Description
Load Capacity (VA)	1000 VA
Load Capacity (Watt)	770 W
Input Voltage Range	100 V AC - 125 V AC
Output Voltage	125 V AC
Output Voltage	120 V AC
Output Voltage	100 V AC
Input Frequency	60 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave
Controls/Indicators
Status Indicators	LED Indicators: Power On On Battery Alarm
Interfaces/Ports
Serial Port	Yes
Network (RJ-45)	Yes
USB (HID Compliant) Port	Yes
Battery Information
Battery Characteristics	Maintenance-free, Leak-proof
Battery Chemistry	Lead Acid
Battery Capacity	9000 mAh
Backup/Run Time (Full Load)	5 Minute
Backup/Run Time (Half Load)	12 Minute
Hot Swappable	Yes
Environmental Conditions
Maximum Operating Elevation	9842.52 ft
Maximum Operating Temperature	95°F (35°C)
Physical Characteristics
Height	9.2"
Width	5.9"
Depth	13.6"
Weight (Approximate)	25.35 lb
Miscellaneous
Energy Star	No
