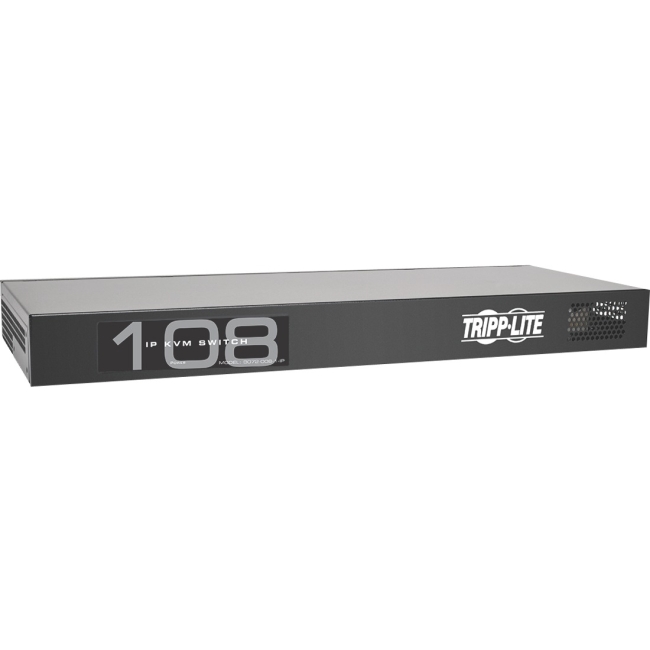

B072-008-1-IP Tripp Lite 8-Port Compact 1 1 User Rackmount Cat5 IP KVM Switch

Tripp Lite's B072-008-1-IP KVM Switch is the optimal solution for controlling up to 8 computers/servers locally, from across the room, down the street or around the globe on a network or the Internet. This KVM switch can be accessed and controlled remotely, so there's no need to travel to the server room or network closet. A Java-based application allows access via web browser from any secure IP connection; a non-browser client that can bypass browser-related Java Security prompts is available.The B072-008-1-IP uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units (sold separately) so you can connect computers/servers located up to 100 ft. away from the switch. This switch features dual Ethernet ports; if one fails, the other takes over, keeping remote access uninterrupted. Users can switch easily between the 8 ports using an on-screen display (OSD), hotkey commands or a remote toolbar. Multi-level password protection prohibits unauthorized users from accessing connected computers, and a local user and a remote user can each log on and access different ports simultaneously. Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; individual ports can be assigned to an IP PDU port to power on/off the server connected to that port. This KVM switch is compatible with both Windows and Linux operating systems and it supports VGA video resolutions up to 1920 x 1080 @ 60 Hz. Heavy-duty steel housing stands up to frequent use.Virtual Media allows an.iso file to be mounted to a target server and accessed as if it were stored directly on it. Virtual Media data transfer rates up to 12Mbps are supported when using a B078-101-USB2 Server Interface Unit. Other features include RADIUS and LDAP/S authentication, system-sent SNMP messaging and an event log that tracks logins, reboots and network setting changes. Free NetCommander-AXS Management Software is available to access and control all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs, and manage KVM settings. This software can be downloaded free of charge from the model support page for the B072-008-1-IP.

General Information
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	B072-008-1-IP
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	NetCommander
Product Model	B072-008-1-IP
Product Name	8-Port NetCommander 1U Rackmount Cat5 KVM Switch w/ IP
Product Type	KVM Switchbox
Technical Information
KVM Technology	Digital
Number of Computers Supported	8
Number of Local Users Supported	1
Number of Remote Users Supported	1
Maximum Operating Distance	100 ft
Video
Graphic Mode	Full HD
Maximum Video Resolution	1920 x 1080
Interfaces/Ports
Network (RJ-45)	Yes
USB	Yes
VGA	Yes
Number of Network (RJ-45) Ports	12
Number of USB Ports	3
Number of VGA Ports	1
Physical Characteristics
Form Factor	Rack-mountable
Rack Height	1U
Miscellaneous
Package Contents	8-Port NetCommander 1U Rackmount Cat5 KVM Switch w/ IP Rackmount Bracket Kit 6ft Power Cord 6ft Serial Cable
Country of Origin	Taiwan
TAA Compliant	Yes
Warranty
Limited Warranty	3 Year
