TRIPP LITE

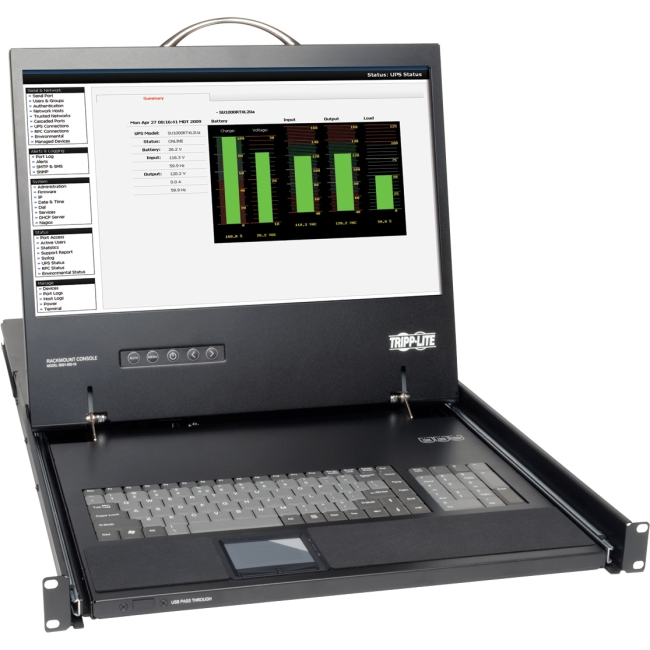

Tripp Lite NetDirector B021-000-19 Rackmount Console

Mfg Part Number:  B021-000-19
Image may not reflect the actual item.
Price: $939.99 + Free Shipping
Quantity:
In Stock: 386
Last Updated: Oct 30, 2024
No Sales Tax except these states
, PO and Wire.
Tripp Lite's B021-000-19 1U Rackmount Console features an integrated 19" LCD display, full 88-key keyboard and touch pad, all in a 1U rackmountable housing. The included KVM cable kit allows for connection to a PS/2 computer or KVM, and a PS/2 to USB adapter is included, which can be used to connect to a USB computer or KVM. The unit features a USB 2.0 pass-through port for connection of a USB peripheral, such as a flash drive, CAC card reader, etc.. Your peripheral device connects to the USB type A port on the front of the unit, and your computer connects to the USB type A port on the back of the unit using a Tripp Lite UR020-Series type A M/M cable. Constructed of heavy-duty steel housing. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

More from the Manufacturer

Main Specification
General Information
Manufacturer Tripp Lite by Eaton
Manufacturer Part Number B02100019
Manufacturer Website Address https://tripplite.eaton.com/
Brand Name Tripp Lite by Eaton
Product Model B021-000-19
Product Name B021-000-19 Rack Mmount LCD
Product Type LCD Rack Console
Technical Information
KVM Switch No
Number of Computers Supported 1
Device Type LCD Rack Console
Display & Graphics
Screen Size 19"
Display Screen Type LCD
Screen Mode WXGA
Screen Resolution 1366 x 768
Input Devices
Keyboard Yes
Pointing Device Type TouchPad
Interfaces/Ports
USB Yes
VGA Yes
Number of USB Ports 2
Number of VGA Ports 1
Physical Characteristics
Product Material Steel
Rack Height 1U
Height 1.7"
Width 19"
Weight (Approximate) 36 lb
Miscellaneous
Package Contents
  • B021-000-19 Rack Mmount LCD
  • 1 x KVM Cable Kit ( HD15M to HD15M + 2 PS2 Male )
  • 1 x PS/2 to USB Adapter
  • 1 x C13 to 5-15P Power Cord
  • 1 x User Manual
  • Mounting Hardware
Certifications & Standards B021-000-19: UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
Environmentally Friendly Yes
Country of Origin Taiwan
TAA Compliant Yes
Warranty
Limited Warranty 1 Year
Tripp Lite's B021-000-19 NetDirector 1U Rackmount Console features an integrated 19" LCD display, full 88-key keyboard and touch pad, all in a 1U rackmountable housing. This console is designed for use with a server or a KVM switch with PS/2 console connectors.

Display Type KVM console
Height (Rack Units) 1U
Width 19 in
Depth 25.6 in
Height 1.7 in
Enclosure Color Black
Display
Diagonal Size 19"
Max Resolution 1280 x 1024
Max Sync Rate (V x H) 65 Hz
Signal Input VGA
Features OSD-Digital Display Director
Input Device
Type Keyboard, touchpad
Expansion / Connectivity
Interfaces 1 x keyboard / mouse / video - 15 pin HD D-Sub (HD-15)
Miscellaneous
Rack Mounting Kit Included
Compliant Standards DDC-2B
Power
Form Factor Internal
Voltage Required AC 120/230 V
Manufacturer Warranty
Service & Support 1 year warranty
Service & Support Details Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 0 - 80%
