TRIPP LITE

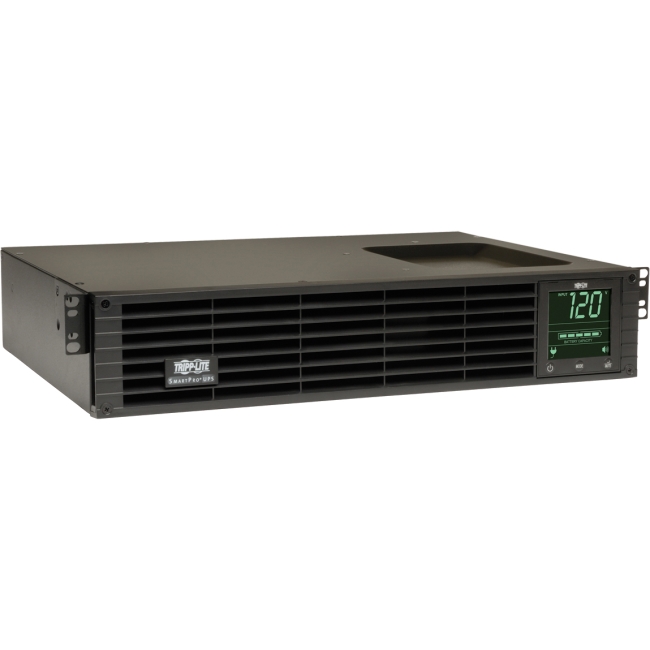

Tripp Lite SMART1500RM2UN UPS System with Pre-installed SNMPWEBCARD
Mfg Part Number: SMART1500RM2UN , Item #: 1521803
, PO and Wire.
The SMART1500RM2UN SmartPro® 120V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up servers and network storage devices, the SMART1500RM2UN switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.
Featuring eight NEMA 5-15R outlets (four switchable) and a 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input, the SMART1500RM2UN has an internal battery that provides 13 minutes of support at half load and 4.5 minutes at full load.
The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
Automatic voltage regulation (AVR) maintains 120V nominal output over an input range of 83V to 147V without using battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage.
| General Information | |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SMART1500RM2UN |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Line | SmartPro |
| Product Model | SMART1500RM2UN |
| Product Name | SMART1500RM2UN UPS System with Pre-installed SNMPWEBCARD |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Transfer Time | 4 ms |
| Phase | Single Phase |
| Application/Usage | Telecommunication |
| Application/Usage | Storage Device |
| Application/Usage | Server |
| Power Description | |
| Load Capacity (VA) | 1500 VA |
| Load Capacity (Watt) | 1350 W |
| Input Voltage | 120 V AC |
| Output Voltage | 115 V AC |
| Output Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Pure Sine Wave |
| Management | |
| Network Management | SNMP Manageable |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 4.50 Minute |
| Backup/Run Time (Half Load) | 13 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4.50 Hour |
| Physical Characteristics | |
| Height | 3.5" |
| Width | 17.3" |
| Depth | 13.5" |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 46.50 lb |
| Miscellaneous | |
| Package Contents |
|
| Software Included | PowerAlert Software |
| Country of Origin | China |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
