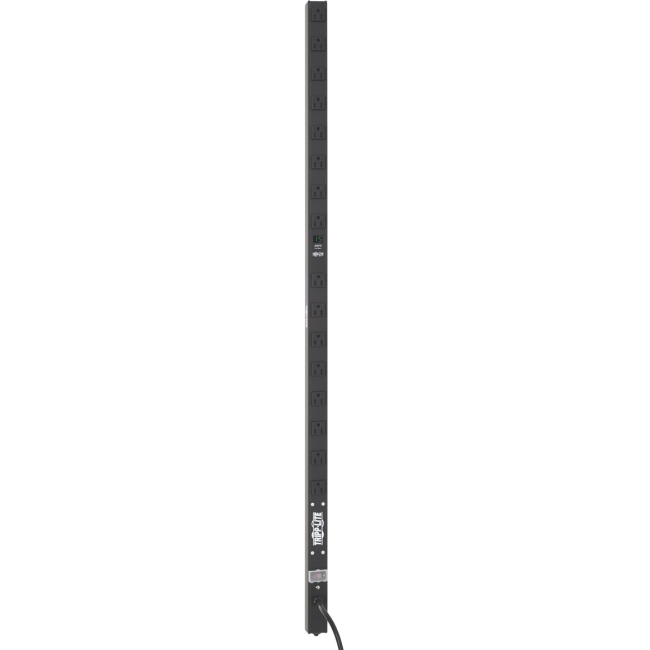

Tripp Lite PDUMV15 PDU Metered 120V 15A 16 Outlet

Tripp Lite's PDUMV15 metered power distribution unit offers 15 amp, 120V multi-outlet AC power distribution in a convenient 48-inch mountable housing. Digital current meter displays the power consumption of connected equipment. Offers vertical power distribution in rackmount, raceway, and workbench applications. Includes 16 NEMA 5-15R output receptacles, 15 ft. AC line cord, and lighted power switch with locking transparent cover to prevent accidental shutoff. Sturdy all-metal extruded aluminum housing stands up to demanding network, laboratory, or factory enviroments. Unfiltered electrical pass-through makes the PDUMV15 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Included 16 NEMA5-15R outlets, 15-ft. AC power cord with 5-15P plug, 15 amp circuit breaker in rugged metal case design.PLUG/OUTLETS-Input: NEMA 5-15P/Output: 16 NEMA 5-15RELECTRICAL - 120V AC, 50/60Hz, 15AFORMAT - 48 inch mountable strip format

MODEL- PDUMV15            VENDOR- TRIPPLITE

FEATURES- Metered PDU/Power Distribution Unit
       Safe, reliable power distribution with digital current meter.
       Digital current meter display; 16 outlets; Convenient and safe
        covered on/off switch; 15 amp breaker; 15-ft. cord; 48" length.
       Tripp Lite's PDUMV15 metered power distribution unit offers 15 amp,
        120V multi-outlet AC power distribution in a convenient 48-inch
        mountable housing. Digital current meter displays the power
        consumption of connected equipment. Offers vertical power
        distribution in rackmount, raceway, and workbench applications.
       Includes 16 NEMA 5-15R output receptacles, 15 ft. AC line cord, and
        lighted power switch with locking transparent cover to prevent
        accidental shutoff. Sturdy all-metal extruded aluminum housing
        stands up to demanding network, laboratory, or factory enviroments.
        Unfiltered electrical pass-through makes the PDUMV15 ideal for
        distributing alternate waveform UPS or generator power in rack
        enclosures, network closets and more.
    Includes PDUMV15 Metered Vertical PDU, Mounting hardware, 6 outlet
      safety covers, Owner's manual with warranty information.
* Digital current montoring display
* Sturdy all-metal 48-inch corded PDU
* Includes hardware for Zero U configuration in rack enclosures as well as
  horizontal mounting in raceways and more.
* 16 NEMA 5-15R output receptacles
* Lighted power switch with locking transparent safety cover prevent
  accidental shutoff of connected devices.
* 15 amp electrical capacity with circuit breaker
* 120V, 50 /60Hz electrical compatibility
* 15 ft. power cord

  -- SPECIFICATIONs -----------------------------------
OUTPUT       - Volt amp capacity  : 15A / 1800VA
               Nominal voltage    : 120V
               Outlets            : (16) NEMA 5-15R
               Overload protection: 15A
INPUT        - Input amps         : 15A
               Connection type    : NEMA 5-15P
               Cord length        : 15 ft.
LEDs, ALARMS & SWITCHES-
               Front panel LEDs   : Digital LED current monitor display
               Switches           : Lighted on/off switch with integrated
                                      safety cover.
MATERIAL     - Aluminum
FORM FACTOR  - Vertical (0U) mounting in rack enclosures, horziontal mount
                 in raceways and a variety of other applications.
APPROVALS    - Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03
                  (Canada), RoHS Compliant.
DIMENSIONS   - 48"w x 3"h x 1.5"d               WT.- 3.8 lbs.
