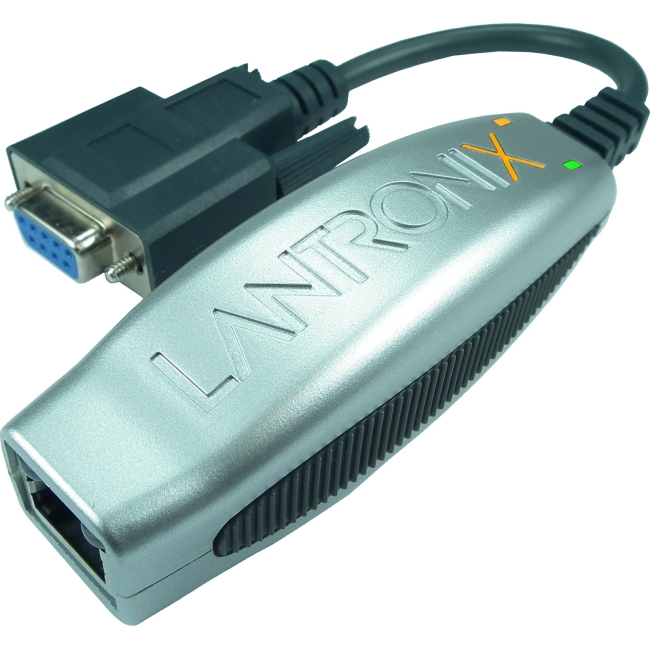

Image may not reflect the actual item.
Price: $135.43
Quantity:
In Stock: 204
Last Updated: Nov 09, 2025
No Sales Tax except these states
, PO and Wire.
Network Connectivity For Any Serial Device 'Right On The Wire'
xDirect™ is a sleek and compact Serial-to- Ethernet device server, providing quick and easy Ethernet connectivity to virtually any device or machine with a serial interface.
With an integrated Ethernet port and serial cable, multiple power options including PoE, and an industry-best five year warranty, xDirect provides a portable, extremely flexible, and highly affordable network connectivity solution.
Main Specification
| General Information | |
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | XDT4851002-01-S |
| Manufacturer Website Address | http://www.lantronix.com |
| Brand Name | Lantronix |
| Product Line | xDirect |
| Product Name | xDirect485 Single Port RS232/422/485 10/100 Device Server |
| Product Type | Device Server |
| Memory | |
| Standard Memory | 256 KB |
| Memory Technology | SDRAM |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Wireless Specifications | |
| Wireless LAN | No |
| ISM Band | No |
| UNII Band | No |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Standard | 10/100Base-TX |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Phone Line (RJ-11) | No |
| Network (RJ-11) | No |
| USB | No |
| Serial Port | Yes |
| Parallel Port | No |
| Centronics Port | No |
| Management Port | No |
| PoE (RJ-45) Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Number of Serial Ports | 1 |
| Physical Characteristics | |
| Height | 1.1" |
| Width | 1.3" |
| Depth | 9.4" |
| Weight (Approximate) | 2.40 oz |
| General Information | |
| Product | Serial to Ethernet Device Servers |
| Number of Ports | 1 Ethernet, 1 RS-485 |
| Processor Type | DSTni-EX |
| Data Rate | 921.6 kb/s, 10 Mb/s, 100 Mb/s |
| Interface Type | Ethernet, RS-485 |
| Operating Supply Voltage | 5 V to 15 V |
| Maximum Operating Temperature | + 85 C |
Similar Products:
LANTRONIX
(XDT10P0IA-01-S)
Lantronix Compact 1-Port Secure Serial (RS232/ RS422/ RS485) to IP Ethernet Device Server; Up to 256-bit AES encryption; Power Over Ethernet (PoE) 802.3AF
Lantronix Compact 1-Port Secure Serial (RS232/ RS422/ RS485) to IP Ethernet Device Server; Up to 256-bit AES encryption; Power Over Ethernet (PoE) 802.3AF
$201.72
