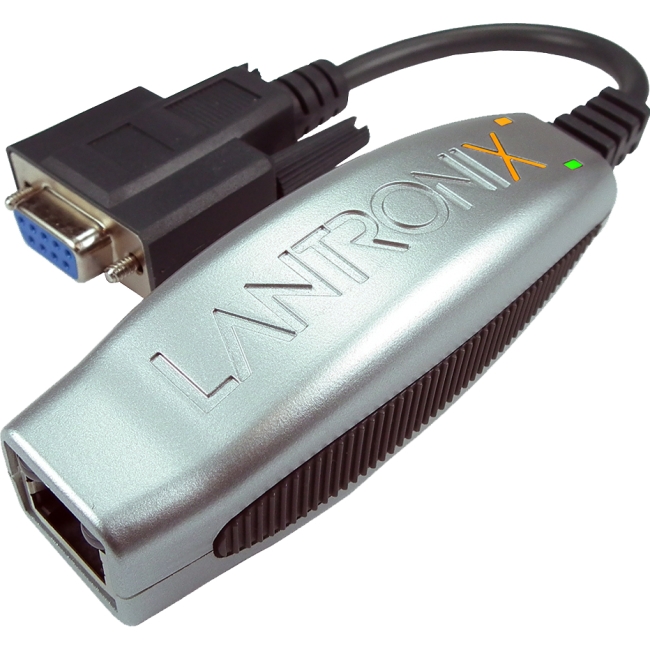

Image may not reflect the actual item.
Price: $145.00
Quantity:
In Stock: 261
Last Updated: May 10, 2024
No Sales Tax except these states
, PO and Wire.
Network Connectivity For Any Serial Device 'Right On The Wire'
xDirect™ is a sleek and compact Serial-to- Ethernet device server, providing quick and easy Ethernet connectivity to virtually any device or machine with a serial interface.
With an integrated Ethernet port and serial cable, multiple power options including PoE, and an industry-best five year warranty, xDirect provides a portable, extremely flexible, and highly affordable network connectivity solution.
Main Specification
| General Information | |
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | XDT2321002-01-S |
| Manufacturer Website Address | http://www.lantronix.com |
| Brand Name | Lantronix |
| Product Line | xDirect |
| Product Name | xDirect232 Single Port RS232 10/100 Device Server |
| Product Type | Device Server |
| Memory | |
| Standard Memory | 256 KB |
| Memory Technology | SDRAM |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Wireless Specifications | |
| Wireless LAN | No |
| ISM Band | No |
| UNII Band | No |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Standard | 10/100Base-TX |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Phone Line (RJ-11) | No |
| Network (RJ-11) | No |
| USB | No |
| Serial Port | Yes |
| Parallel Port | No |
| Centronics Port | No |
| Management Port | No |
| PoE (RJ-45) Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Number of Serial Ports | 1 |
| Physical Characteristics | |
| Height | 1.1" |
| Width | 1.3" |
| Depth | 9.4" |
| Weight (Approximate) | 2.40 oz |
| Mechanical | |
| Dimensions: WxHxD (mm) | 240 x 33 x 29 |
| Mounting | - |
| Enclosure | Plastic |
| Interface | |
| Serial interface | RS232 |
| Serial interface number of ports | 1 |
| Serial Interface type of connector | DB9 |
| Network interface | 1 Port Ethernet PoE Connector |
| Network interface number of ports | 1 |
| Network interface type of connector | RJ45 |
| Power | |
| Power Input Type | Single DC / Mini-USB-B Jack |
| Operating Supply Voltage | 5V |
| Power Consumption | 2W |
| Reliability | |
| Operating Temperature | -40 to 85C |
| Isolation Protection | Yes |
| Surge Protection | - |
| Standards and Certifications | - |
