Intel Atom E640 processor and Intel EG20T PCH chipset for low power consumption and entry-level vehicle applications. AR-V6005FL also features intelligent in vehicle power management, CAN bus, Digital I/O, i-Button (One Wire), GPS and 3.5G wirelesses.
| Chassis | |
| Dimensions (WxDxH) | 294mm x 128mm x 68mm |
| System Fan | Fanless |
| Chassis Construction | SPGC steel |
| MotherBoard | |
| Processor Brand | Intel |
| Processor Type | Intel Atom E640 |
| Frequency | 1 GHz |
| Cache Memory | - |
| Chipset | EG20T |
| Memory Form Factor | SO-DIMM |
| Memory Included | 2 GB |
| Memory Max | 2 GB |
| Memory Type | DDR2 |
| Storage | |
| SATA | 1 |
| SD Card | - |
| Cfast | - |
| mSATA | - |
| Compact Flash | 1 |
| Remote Monitoring | |
| IPMI | - |
| I/O Interface | |
| Interface Type | Ethernet, USB, RS232, RS422/485, CAN, GPIO |
| PS2 (KB/MS) | - |
| USB 2.0 | 1 |
| USB 3.0 | - |
| Ethernet | 1 x RJ45 GBE LAN |
| RS-232 | 2 x DB9 |
| RS-422/485 | 1 x DB9 |
| CAN-bus | 1 x JST |
| Wireless | Optional |
| Cellular | Optional |
| Special Function Slot | - |
| Display Type | VGA |
| Resolution (VGA) | - |
| Resolution (DVI) | - |
| Resolution (HDMI) | - |
| Resolution (S-Video) | - |
| Digital I/O/Relay | - |
| GPIO | 4 x GPI, 4 x GPO |
| Audio | 1 x Line-out, 1 x Mic-in |
| Expansions | |
| PCIe Mini | 2 |
| PCI | - |
| PCIe | - |
| PCI/104 | - |
| PCI/104 Plus | - |
| Power Input | |
| Power Input Type | Single DC / Terminal Block |
| Operating Supply Voltage Range | 9V to 32V |
| Power Consumption | 19W |
| Reliability | |
| Mounting | - |
| Operating Temp. Min. | 0C to 4.99C |
| Operating Temp. Max. | 60C to 64.99C |
| Operating Vibration | - |
| Shock during Operating | - |
| Standards and Certifications | CE/FCC/E-Mark |
Acrosser
(ACC-V6005-3.5G MC8705)

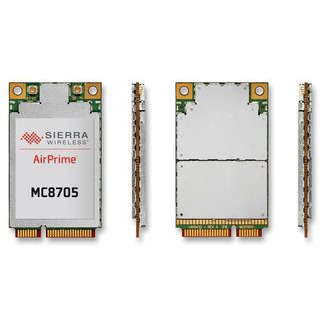

3.5G-SIERRA MC8705 3.5G Module with RF cable, screw, Antenna(L=3M) For AR-V6005Series
3.5G-SIERRA MC8705 3.5G Module with RF cable, screw, Antenna(L=3M) For AR-V6005Series
$180.31
$41.11
