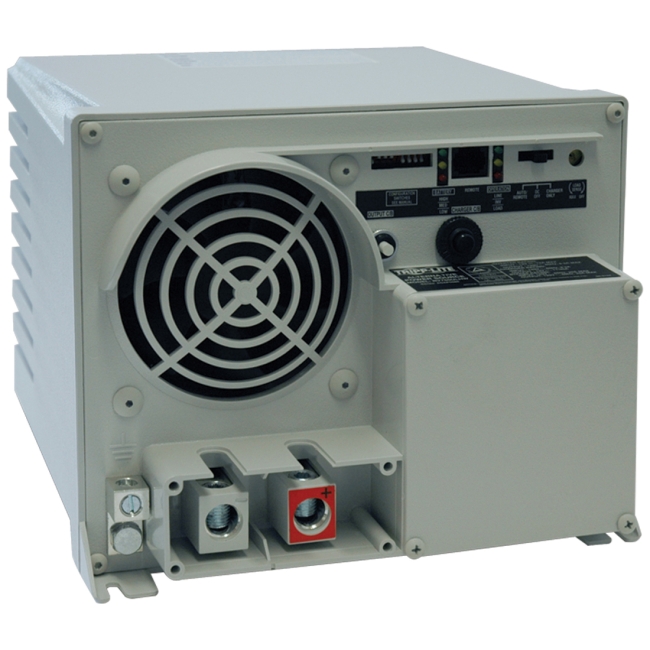

Tripp Lite PowerVerter RV1250ULHW 1250W Inverter

Tripp Lite RV1250ULHW Inverter/Charger is the quiet alternative to gas generators with no fumes, fuel or noise to deal with! It provides equipment with utility- or generator-supplied AC electricity filtered through premium ISOBAR surge protection. This DC-to-AC inverter with automatic line-to-battery transfer and integrated charging system serves as an extended run UPS, a standalone power source or an automotive inverter suitable for rugged RV applications. Supplies up to 1250 watts of continuous 120V AC power from any 12V DC battery or automotive DC source. OverPower TM inverter output feature temporarily provides up to 150% of the continuous output for 1-60 minutes, and DoubleBoost TM inverter output feature delivers up to 200% of the continuous output for up to 10 seconds, providing the extra power needed to cold start heavy-duty tools and motorized equipment. When hardwire AC input is energized, commercial power passes through to connected equipment and the battery set is recharged via 3 stage, selectable 14/55 amp charging system. In UPS mode, the APS system responds to blackouts and voltage fluctuations with a near instantaneous automatic transfer to battery-derived AC output. Includes a set of high current DC input terminals for simple installation (user supplies batteries and cabling - see owner's manual for recommendations). Passes sine wave utility or generator power during battery charging and UPS line power operation, plus efficient PWM sine wave AC output in inverter and UPS backup modes. Reliable large transformer design, with frequency control powers resistive electronic loads or large inductive motors, compressors and other items with high current needs on startup. Optional APSRM4 wired remote power switch with full status LEDs provides remote power inverter on/off switching and continuous status information (APSRM4 sold separately). Supports an unlimited amount of runtime with any number of user-supplied batteries connected. Highly adaptable to a variety of applications and site conditions with adjustable charger settings for wet/gel battery types and selectable line to battery power transfer voltages.

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	RV1250ULHW
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	PowerVerter
Product Model	RV1250ULHW
Product Name	PowerVerter RV1250ULHW 1250W Inverter
Product Type	Power Inverter
Technical Information
Plug/Connector Type	Hardwired
Receptacles	Hardwired
Power Description
Input Voltage	120 V AC
Input Voltage	12 V DC
Output Voltage	120 V AC
Maximum Frequency	60 Hz
Peak Power Load	2500 W
Continuous Power Load	1250 W
Waveform Type	Pulse-width Modulated Sine Wave
Physical Characteristics
Color Family	Gray
Product Color	Gray
Height	7"
Width	8.8"
Depth	9"
Weight (Approximate)	23.30 lb
Miscellaneous
Package Contents	PowerVerter RV1250ULHW 1250W Inverter Instruction Manual
Certifications & Standards	UL458 CSA
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	30 Month

General Information
Input Voltage-nominal	-
Output Voltage	-
Output Power	-
Voltage Regulation Accuracy	-
Number of Outlets	-
Mounting Type	-

Download DataSheet
