TRENDnet TI-F711SFP Industrial 10G SFP+ Media
Mfg Part Number: TI-F711SFP , Item #: 5417203
, PO and Wire.
TRENDnet's Industrial 10G SFP+ Media Converter, model TI-F711SFP, is a reliable IP50-rated 10G SFP+ to 10G Ethernet media converter with hardened components rated for extreme industrial environments. Set 100Mbps to 10G Ethernet throughput speeds, toggle energy efficiency, and Link Fault Pass Through (LFPT) using the front panel DIP switches. This industrial media converter features 9 - 60V DC power input with overload current protection, and an alarm relay in case of power failure. (Power supply sold separately: TI-M6024 and 48VDC3000).
Industrial Applications
Networks devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.
Fault Tolerance

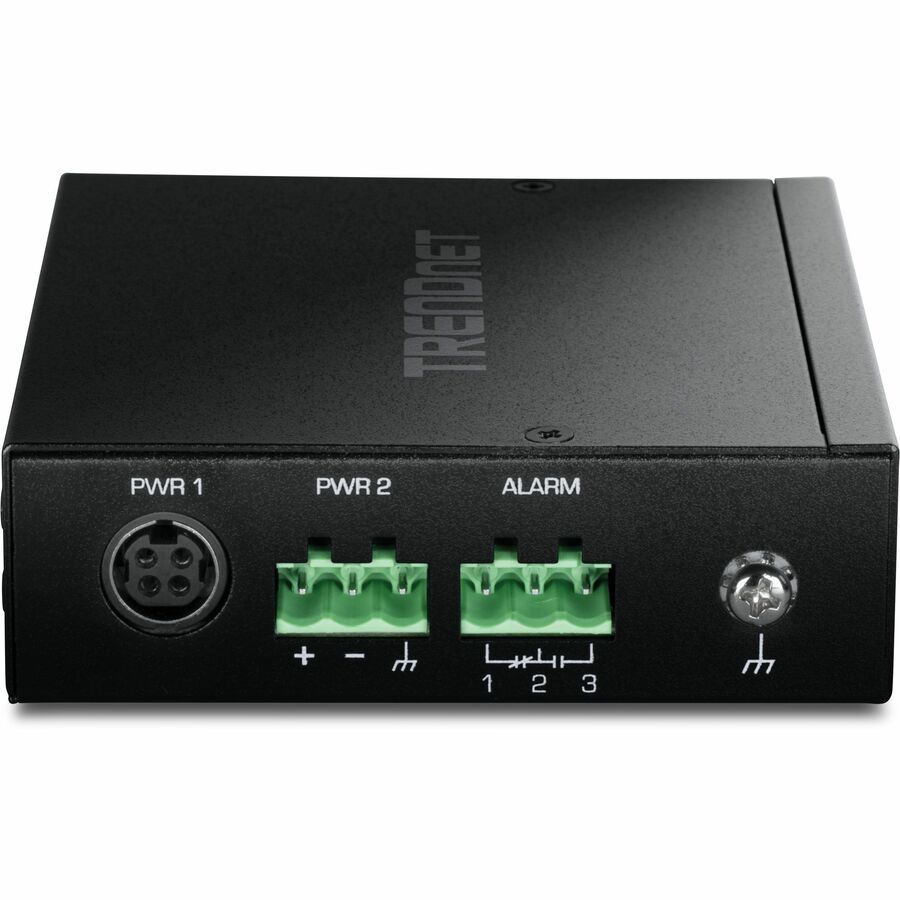

Features redundant 48V and 9 - 60V DC power inputs from external power sources, and an output alarm relay to indicate an input power failure.
Industrial Hardened Design
Rugged IP50-rated housing with a high degree of vibration and shock resistance, and an operating temperature range of -40° - 75° C (-40° - 167° F).

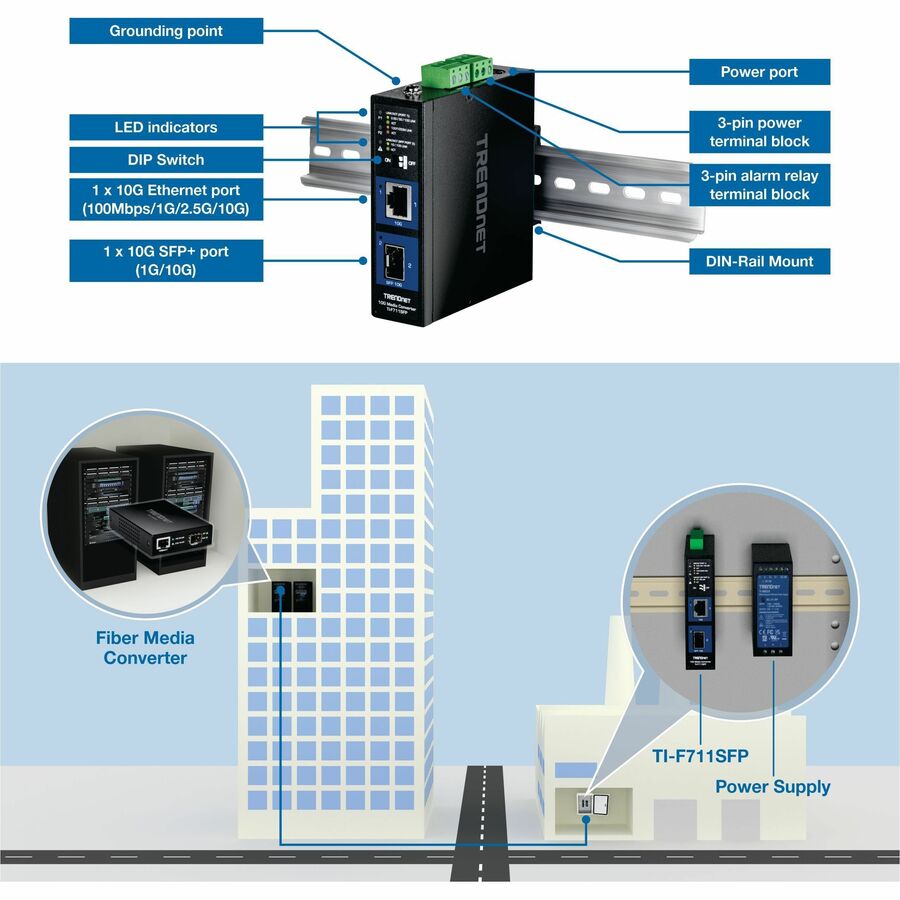

FEATURES | 10G Port
One 10G Ethernet port for highspeed devices
Link Fault Pass Through
Easily enable the LFPT (Link Fault Pass Through) feature using the front panel DIP switch to identify a link fault to the remote LFPT enabled media converter
Dust Protected
This industrial media converter is IP50 rated for ingress dust protection
Fault Tolerance
Features an output alarm relay to indicate an input power failure
Grounding Point
Features a grounding point to protect equipment from external electrical surges
10G SFP+ Port
One 10G SFP+ port for long distance applications
Surge Protection
Provides up to 6kV RJ45 Ethernet surge protection
Extreme Temperature Range
An extreme operating temperature range of -40° - 75° C (-40° - 167°F) allows for installations in industrial environments with intense hot or cold conditions
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-31), and vibration (EN 60068-2-6)

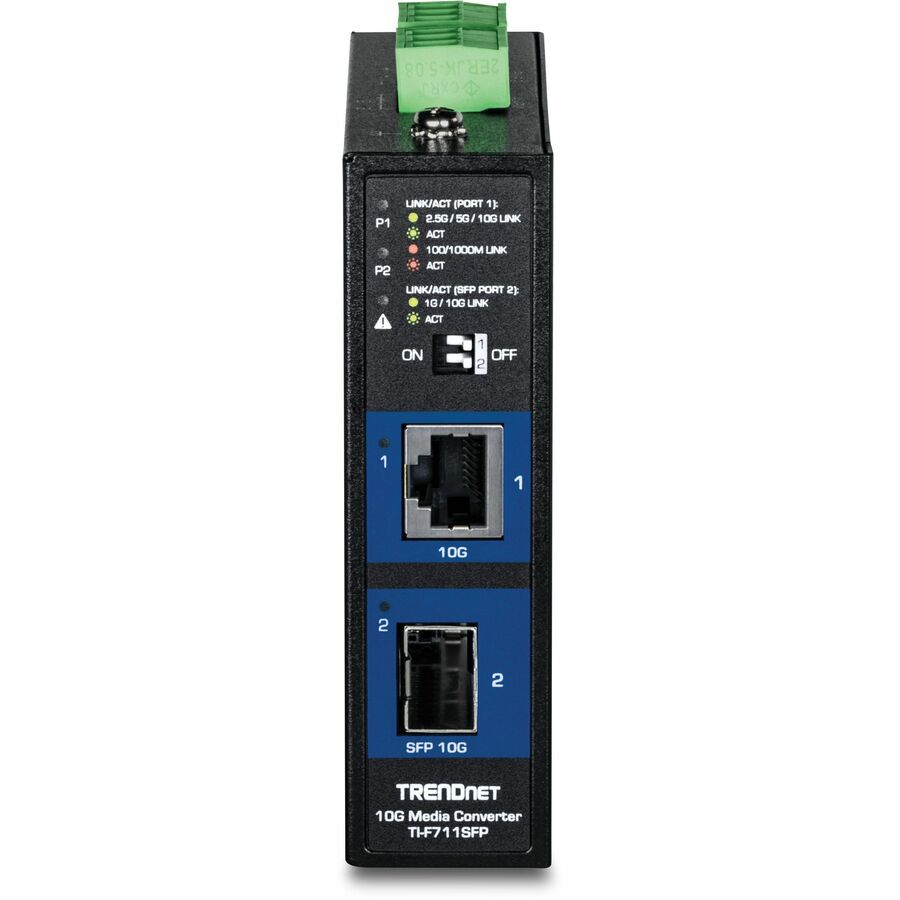

DIP Switches
- 1: LFPT (Link Fault Pass Through) on/off (default ON)
- 2: EEE (Energy Efficient Ethernet) on/off (default OFF)
Electro Magnetic Compliance
Complies with industrial EMS certifications ESD (IEC 61000-4-2): Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power: 2kV, Signal: 1kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV

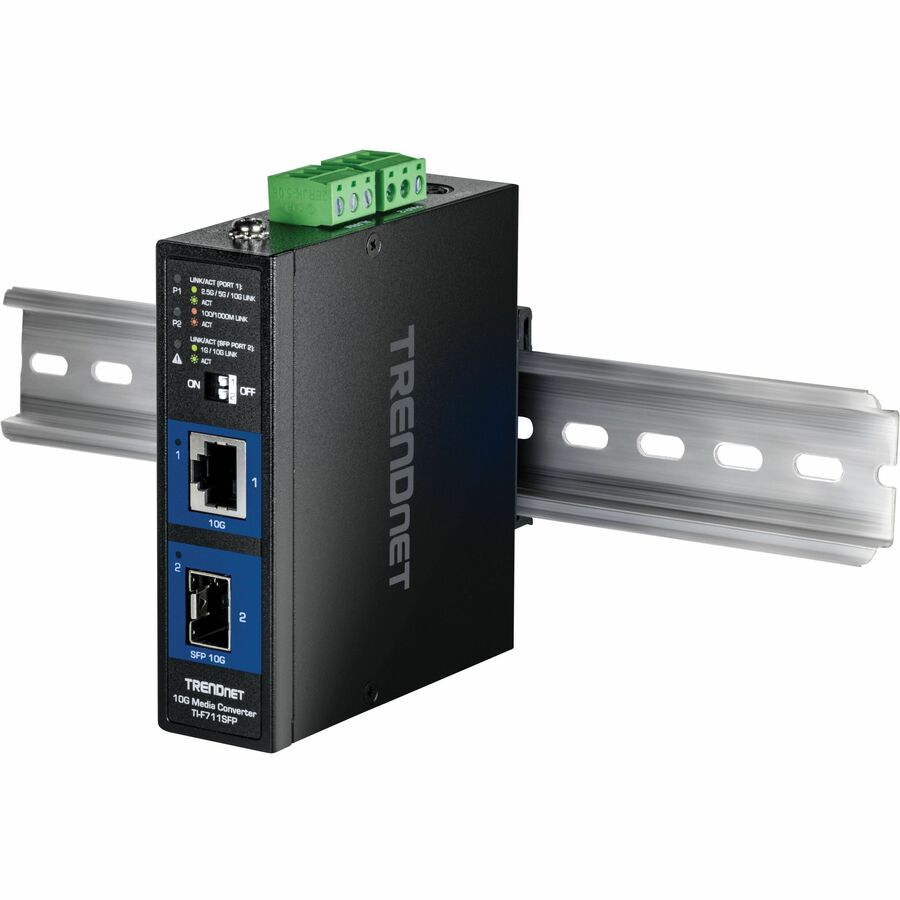

DIN-Rail / Wall Mounts
The rugged media converter includes DIN-Rail mount and wall mount hardware
| General Information | |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-F711SFP |
| Manufacturer Website Address | http://www.trendnet.com |
| Brand Name | TRENDnet |
| Product Name | Industrial 10G SFP+ Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Maximum Data Transfer Rate | 20 Gbit/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 1 |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-T |
| Network Technology | 10GBase-X |
| Power Description | |
| Power Source | Power Adapter |
| Power Consumption | 7.20 W |
| Plug/Connector Type | Terminal Block |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Form Factor | Wall Mountable |
| Height | 4.7" |
| Width | 1.2" |
| Depth | 3.9" |
| Weight (Approximate) | 11.78 oz |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Network |
| Application/Usage | Industrial |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental United Certification Center (CEC) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
