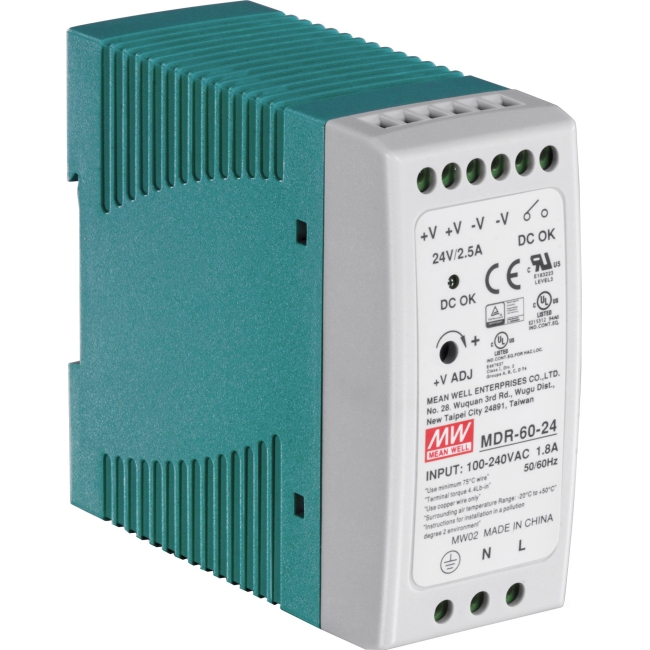

TI-M6024 TRENDnet 60 W Single Output Industrial DIN-Rail Power Supply

Mfg Part Number:  TI-M6024
Image may not reflect the actual item.
Price: $45.99
Quantity:
In Stock: 4
Last Updated: Jun 01, 2026
No Sales Tax except these states
, PO and Wire.

TRENDnet's AC to DC Industrial DIN-Rail Power Supply, model TI-M6024, supplies up to 60W (24V DC, 2.5A) of power to industrialequipment, such as switches, injectors, and WiFi access points. This DIN-Rail power supply comes with an integrated DIN-Railmount, and short circuit, over power, and overload current protection.

  • DEVICE INTERFACE: Input: 100 - 240V AC, 47 - 63Hz, 1.8A 120 - 370V DC; Output: 60W, 24 - 30V, 0 - 2.5A; DIN-Rail:TS-35/7.5 or 15
  • 60W POWER: The power supply provides up to 60W of power (24V DC, 2.5 A)
  • OUTPUT VOLTAGE: 24 - 30V DC
  • HOUSING: IP30 Rated DIN-Rail Mount
  • OPERATING TEMPERATURE: The IP30 Rated housing provides an extreme -20 to 70 °C (-4 to 158 °F) operating temperature range
  • PEAK LOAD CAPABILITY: 150% peak load capability
  • COOLING METHOD: Natural air convection is used to cool the 60W power supply
  • PROTECTION FUNCTIONS: Short circuit/overload/over voltage/over current protection with a self-recovery protection type.
  • UL 62368 Approved
  • ADDITIONAL FEATURES: 100% full load burn-in test; Built-in DC OK relay contact

    • More from the Manufacturer

    Main Specification
    General Information
    Manufacturer TRENDnet
    Manufacturer Part Number TI-M6024
    Manufacturer Website Address http://www.trendnet.com
    Brand Name TRENDnet
    Product Model TI-M6024
    Product Name DIN Rail 24V 60W Power Supply for TI-G50, TI-G62, TI-G80, TI-F11SFP
    Product Condition New
    Product Type Proprietary Power Supply
    Power Description
    Input Voltage 230 V AC
    Input Voltage 120 V AC
    Output Voltage 24 V DC
    Output Voltage Detail 24 V DC @ 2.5 A
    Output Current 2.50 A
    Output Power 60 W
    Physical Characteristics
    Form Factor DIN Rail Mountable
    Height 3"
    Width 5"
    Length 10"
    Weight (Approximate) 10.58 oz
    Miscellaneous
    Additional Information Certifications:
    • CE
    • UL 508
    • UL 60950-1
    • CB 60950-1
    • TUV EN60950-1
    • Class I
    • Div.2 hazardous locations T4
    Compatibility
    • Network Cameras
    • Access Points
    TRENDnet Switches:
    • Ti-G50
    • Ti-G62
    • Ti-G80
    • Ti-F11sfp
    NDAA Compliant Yes
    Warranty
    Limited Warranty 3 Year
