Asustor NAS FS6806X Flashstor 6 Gen 2 6Bay 2Ports 2.3Ghz 10GbE 8GB DDR5 Retail
Mfg Part Number: FS6806X , Item #: 5228684
, PO and Wire.
Ryzen + Flash = Fast
The AMD Ryzen™ Embedded V3C14 processor integrates high-performance Zen 3 cores into a cool and quiet CPU. The exceptional processing efficiency and high-speed I/O connectivity of the Ryzen Embedded CPU ensures efficient operation, enabling fast data transfer and high-speed computing while sipping minimal power.
Breaking the 10 Gbps Barrier
The Flashstor 6 Gen2 series features 10-Gigabit Ethernet, allowing for high speed transfers when paired with a 10GbE-enabled device and a compatible router or switch.
Compact, Yet Powerful
Compact: Compact design for easy mobility.
Protected: Protect valuable files with RAID and Snapshots.
Connected: 10-Gigabit Ethernet brings extreme performance.
Stable: ECC memory support ensures data accuracy and stability.
USB4: Connect USB4 and Thunderbolt devices for maximum performance.
ECC RAM Supported
ECC (Error-Correcting Code) can detect and correct memory errors, enhancing system stability and reliability. It reduces the risk of data errors, ensuring data integrity in enterprise environments. For businesses that require high reliability, consider upgrading your Flashstor Gen2 to the maximum of 64 GB of memory for enterprise servers and workstations.
USB4 - Unmatched Flexibility
The Flashstor Gen2 is equipped with two high-speed USB4 ports, offering ultra-fast speeds of up to 40 Gbps. The USB4 ports are compatible with Thunderbolt 3/4 devices, allowing you to transfer, store, archive, and back up faster than ever. When connecting two ASUSTOR NAS units using the USB4 ports, fast data transfers, synchronizations, and backups can be achieved without using the network ports. Paired with features like DataSync Center and SMB Backup, this can help significantly reduce back up time.

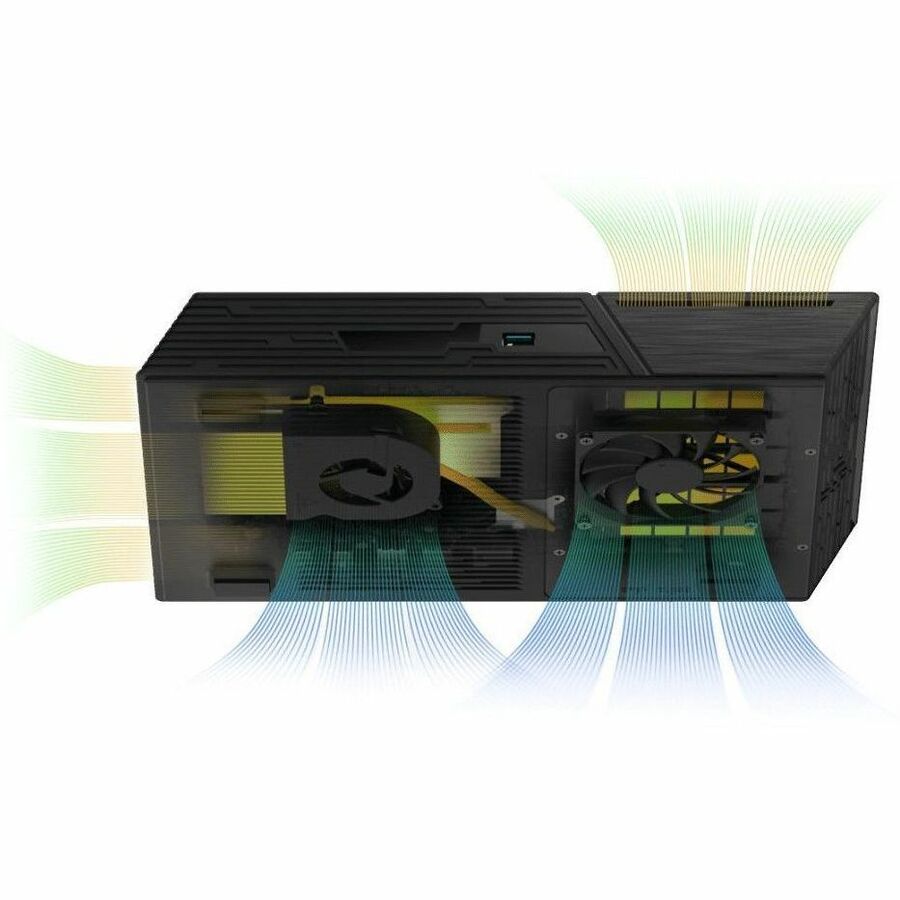

Keeping Cool
The Flashstor Gen2 series now incorporate an improved thermal dissipation design that includes strategically placed fans that are efficient and silent to cool every high performance component in the Flashstor Gen2 series. This optimized cooling efficiency ensures sustained high performance while maintaining low noise levels.
| General Information | |
| Manufacturer | ASUSTOR |
| Manufacturer Part Number | FS6806X |
| Manufacturer Website Address | http://www.asustor.com |
| Brand Name | ASUSTOR |
| Product Line | Flashstor 6 Gen2 |
| Product Model | FS6806X |
| Product Name | FLASHSTOR 6 Gen2 FS6806X SAN/NAS Storage System |
| Packaged Quantity | 1 |
| Product Type | SAN/NAS Storage System |
| Storage | |
| Number of Solid State Drive Supported | 6 |
| Number of Solid State Drive Installed | 0 |
| Flash Memory Capacity | 8 GB |
| Processor & Chipset | |
| Processor Manufacturer | AMD |
| Processor Type | Ryzen Embedded |
| Processor Model | V3C14 |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 2.30 GHz |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | DDR5 SDRAM |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 6 |
| Controllers | |
| Controller Type | NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10, JBOD |

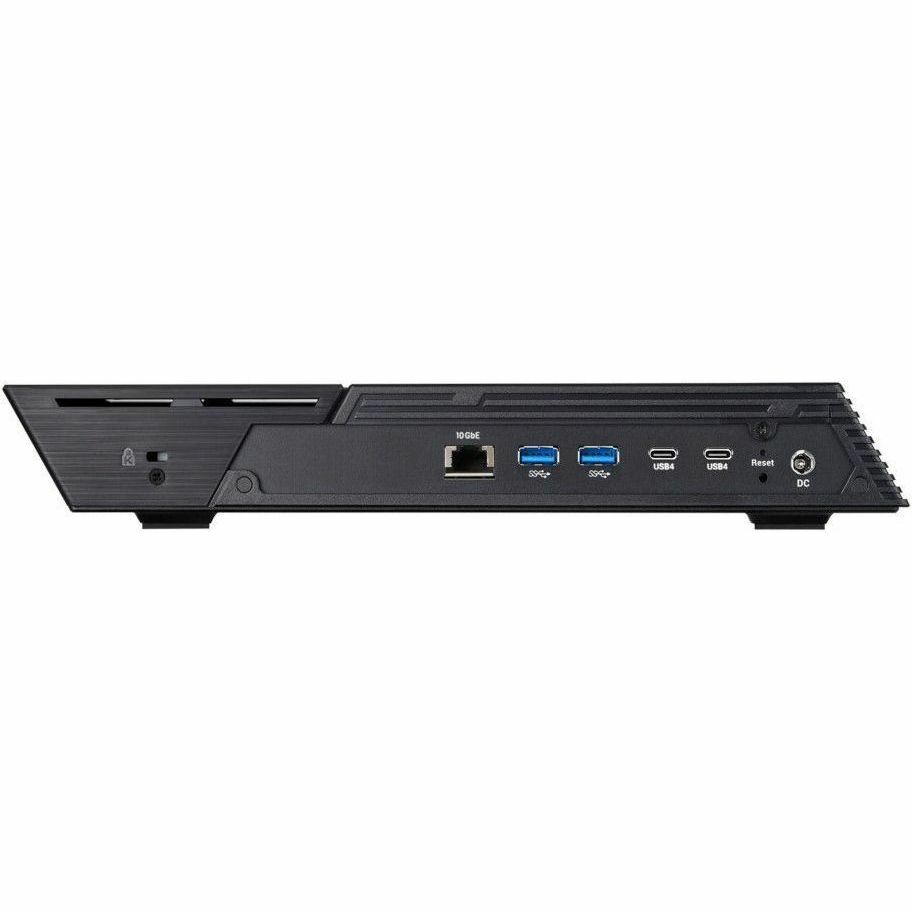

| Interfaces/Ports | |
| Drive Interface | M.2 |
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| Number of USB4 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Software | |
| Operating System | ADM 4.1 |
| Management & Protocols | |
| Protocols | LDAP |
| Protocols | SFTP |
| Protocols | SMB 2.0 |
| Protocols | FTP |
| Protocols | IPv6 |
| Protocols | iSCSI |
| Protocols | SNMP |
| Protocols | DDNS |
| Protocols | RSync |
| Protocols | UPnP |
| Protocols | TFTP |
| Protocols | WEBDAV |
| Protocols | SMTP |
| Protocols | TCP/IP |
| Protocols | HTTP |
| Protocols | SSH |
| Protocols | FTPS |
| Protocols | IPv4 |
| Protocols | RTSP |
| Protocols | AFP |
| Protocols | TLS |
| Protocols | CIFS/SMB |
| Protocols | SMB 3.0 |
| Protocols | NFS |
| Protocols | SSL |
| Protocols | HTTPS |
| Power Description | |
| Maximum Power Supply Wattage | 90 W |
| Physical Characteristics | |
| Height | 1.9" |
| Width | 12.1" |
| Depth | 7.6" |
| Weight (Approximate) | 3.09 lb |
| Miscellaneous | |
| Package Contents |
|
| Warranty | |
| Limited Warranty | 3 Year |
