Asustor NAS AS5004U Storage Capacity Expander USB3.2 Gen2 Type C Smart fan RTL
Mfg Part Number: AS5004U , Item #: 4972330
, PO and Wire.
Faster and Easier!
The all-new Xpanstor 4 adopts USB 3.2 Gen 2 with a Type-C socket. USB 3.2 Gen 2 transfers files even faster with the ability to transfer of up to 10 Gbps. The Xpanstor is also backward compatible with ASUSTOR NAS devices that support USB 3.2 Gen 1 and will operate at the 5 Gbps maximum those devices support. Use the Xpanstor to expand the capacity of your NAS to grow your workflow as needed.
MyArchive Welcome!
The Xpanstor 4 supports MyArchive cold storage technology. Directly insert a MyArchive hard drive into an available bay to access data, making data access extremely convenient. Use MyArchive to also set up schedules for backing up with automatic mounting and unmounting, making your backups simpler and more convenient.
Sleeps When Your NAS Sleeps
When a connected NAS enters sleep mode or shuts down, the Xpanstor will enter sleep mode simultaneously to save energy and hardware longevity. LED brightness in the Xpanstor 4 also synchronizes with your NAS, ensuring no bright lights when your NAS is off.
Cool and Quiet

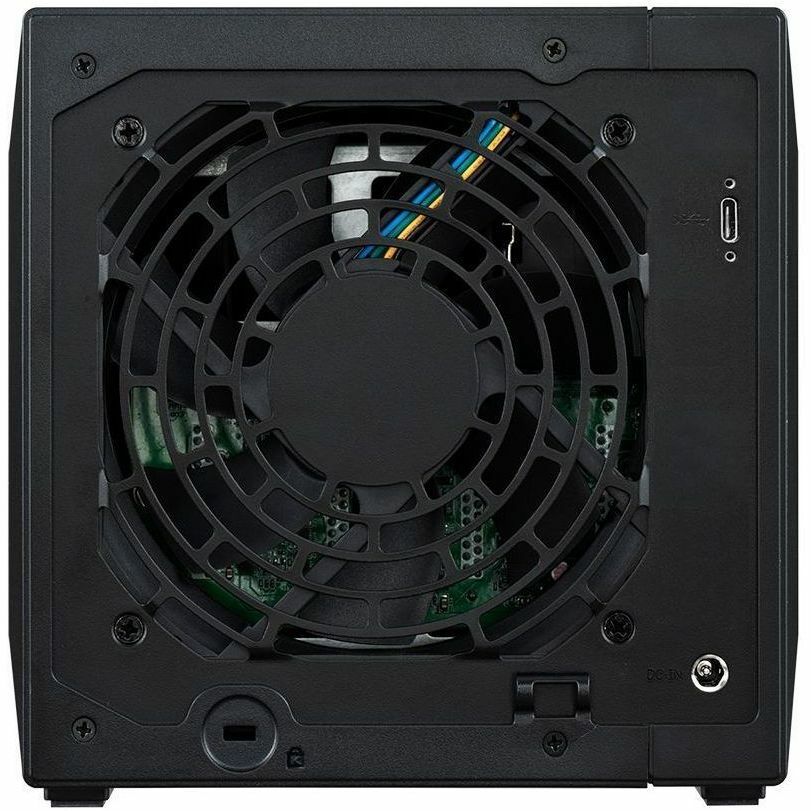

The internal fan found inside the Xpanstor 4 automatically adjusts its speed according to hard drive temperatures and maintains a balance between sound and performance.
Stable USB Connection
The Xpanstor 4 has a specially designed USB-C connector and cable. The cable included with your Xpanstor 4 locks in with your expansion unit with two screws on each side of the cable to lock it into the expansion unit to prevent it from being accidentally disconnected. The included USB cable is not proprietary and replaceable, ensuring greater longevity and lower e-waste.
PC-Friendly!
The Xpanstor 4 works well as a DAS solution as well. Plug an Xpanstor into a computer to access up to four independent drives that can be used by a Windows, Mac or Linux machine for applications that include, but are not limited to storage, drive cloning and diagnostics.
First-Class Product Warranty
All ASUSTOR NAS products come with a 3-year warranty. ASUSTOR continues to make customer service a priority in providing the highest standard of after-sales service and technical support.
| General Information | |
| Manufacturer | ASUSTOR |
| Manufacturer Part Number | AS5004U |
| Manufacturer Website Address | http://www.asustor.com |
| Brand Name | ASUSTOR |
| Product Line | Xpanstor 4 |
| Product Model | AS5004U |
| Product Name | Xpanstor 4 AS5004U NAS/DAS Storage System |
| Packaged Quantity | 1 |
| Product Type | NAS/DAS Storage System |
| Storage | |
| Number of Hard Drives Supported | 4 |
| Number of Hard Drives Installed | 0 |
| Total Hard Drive Capacity Supported | 88 TB |
| Number of Solid State Drive Supported | 4 |
| Number of Solid State Drive Installed | 0 |
| Flash Memory Capacity | 32 MB |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Number of 2.5"/3.5" Bays | 4 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10, JBOD |
| Interfaces/Ports | |
| Total Number of USB Ports | 1 |
| Software | |
| Operating System | ADM 4.2.4 |
| Power Description | |
| Maximum Power Supply Wattage | 90 W |
| Physical Characteristics | |
| Height | 6.7" |
| Width | 6.9" |
| Depth | 9.1" |
| Weight (Approximate) | 4.48 lb |
| Miscellaneous | |
| Package Contents |
|
| Warranty | |
| Limited Warranty | 3 Year |
