HP 9L6F2UT#ABA Z4G5 TWR W52445 16G 512GB

Overview | HP's best-selling workhorse, now more powerful

This high-performance desktop workstation does it all. Tackle advanced workflows-from rendering and simulation to advanced video editing and massive dataset preparation. The Z4 G5 accelerates workflows across a wide range of professional apps and provides plenty of room to expand as work evolves.

Professional performance. Whisper quiet acoustics

Unlock your potential with high-end professional GPUs, a next-gen Intel® Xeon® processor, and ultra fast memory con?gurations. Now you can render and simulate or analyze advanced datasets faster with unthrottled, whisper quiet performance.

Comprehensive security. Reliability you can trust

Trust the 360K hours of testing, certifications for pro apps, and world-class HP Wolf Security for Business.

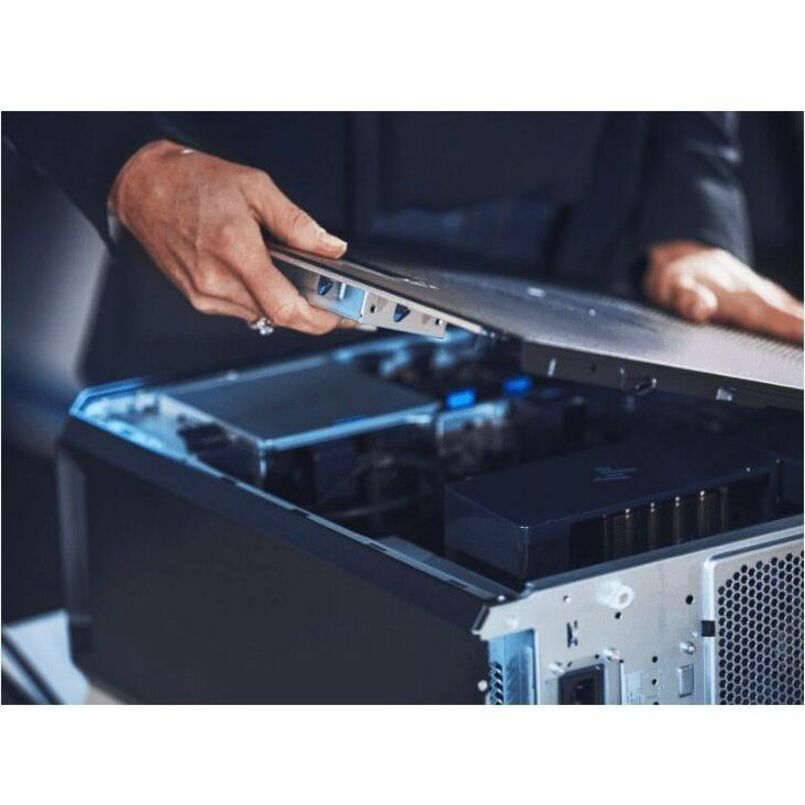

Upgrade and expand with ease

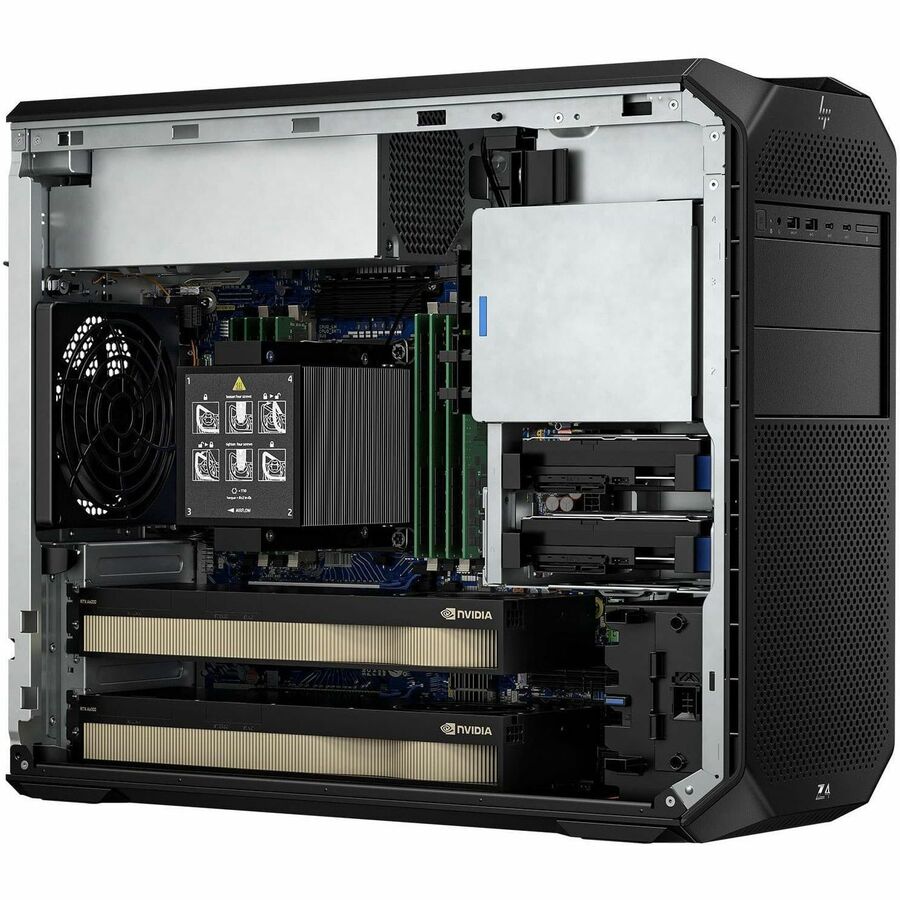

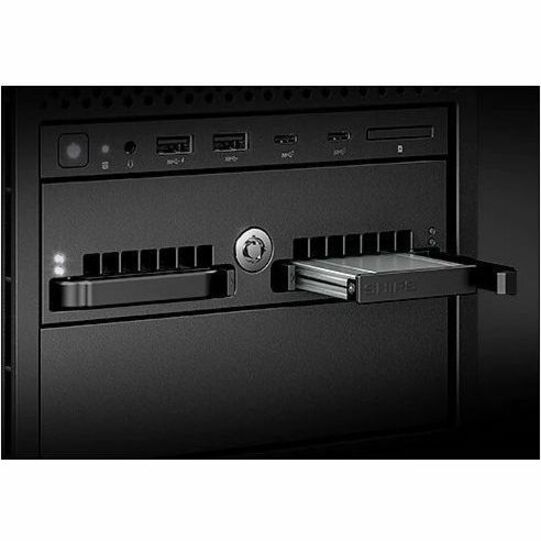

Need to expand your workflow capabilities? Evolve your PC with plenty of space for highend GPUs, loads of memory and storage- including front accessible NVMe bays-and even PCIe slots. All easily accessible in a tool-less design.

Maximize your IT lifecycle

Designed for simpler IT management, the Z4 is built for longevity with a 3 year lifecycle- longer than entry workstations. Plan for the future and avoid re-qualifying devices every year, saving you serious time and money.

Features | Windows 11

Work anywhere without compromising on performance or security with Windows 11 powered by HP's collaboration and connectivity technology.

Intel® Xeon® W processor

Get optimized performance whether your professional application utilizes high core count or high frequency with the Intel® Xeon® W processor.

Security is your top priority

The HP Wolf Pro Security Edition provides preconfigured enterprise-level PC protection for small and medium sized businesses.

HP Anyware

Access the power of your Z from any device with HP Anyware-remote access software delivering fast responsiveness and image quality, even in film editing and data visualizations.

General Information
Manufacturer	HP Inc.
Manufacturer Part Number	9L6F2UTABA
Manufacturer Website Address	http://www.hp.com
Brand Name	HP
Product Series	Z4 G5
Product Name	Z4 G5 Workstation PC
Product Type	Workstation
Processor
Number of Processors Supported	1
Number of Processors Installed	1
Processor Type	Xeon
Processor Model	w5-2445
Processor Core	Deca-core (10 Core)
Processor Speed	3.10 GHz
L3 Cache	26.25 MB
Processor Socket	Socket LGA-4677
Processor Threads	20
Chipset
Chipset Manufacturer	Intel
Chipset Model	W790
Memory
Standard Memory	16 GB
Maximum Memory Supported	512 GB
Memory Technology	DDR5 SDRAM
Total Number of Memory Slots	8
Error Checking	Non-ECC
Memory Clock Speed	4.80 GHz
Memory Configuration	1 x 16GB
Signal Processing	Registered
Storage
Drive Type	SSD
Total Solid State Drive Capacity	512 GB
Solid State Drive Interface	PCI Express NVMe 4.0 x4
Controllers
Controller Type	Serial ATA/600
RAID Supported	Yes
Display & Graphics
Graphics Controller Model	RTX A2000
Graphics Memory Capacity	12 GB
Graphics Memory Technology	GDDR6
Graphics Memory Accessibility	Dedicated
Maximum Memory Bandwidth	288 GB/s
Network & Communication
Ethernet Technology	Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports	14
Number of Onboard USB 2.0 Ports	3
Number of USB 3.1 Gen 1 Ports	6
Number of USB 3.2 Gen 1 Ports	2
USB Type-C	Yes
USB Type-C Detail	2x USB 3.2 Gen2x2 Type-C™ (Power Delivery 3.0)
DisplayPort	Yes
Number Of Ethernet Ports	1
Number of DisplayPort Outputs	4
Optional Ports	Details regarding optional ports aggregated from the information available for this product's family/series. Serial Port v3 Dual USB-A 3.2 Gen1 USB-C 3.2 Gen2 10GbE single port 2.5GbE LAN single port 1 GbE single port 1GbE Fiber single port LC
Input Devices
Keyboard Localization	English
Operating System
Operating System Platform	Windows
Operating System	Windows 11 Pro
Operating System Language	English
Power Description
Input Voltage	120 V AC
Input Voltage	230 V AC
Frequency	50 Hz
Frequency	60 Hz
Physical Characteristics
Color Family	Black
Product Color	Black
Form Factor	Tower
Height	15.2"
Width	6.6"
Depth	17.5"
Weight (Approximate)	23.15 lb
Miscellaneous
Package Contents	Z4 G5 Workstation PC Keyboard Mouse
Energy Star	Yes
TCO Certified	Yes
Environmentally Friendly	Yes
Energy Efficiency Certification	China Energy Conservation Program (CECP)
Energy Efficiency Compliance	Energy-related Products Directive (ErP)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
