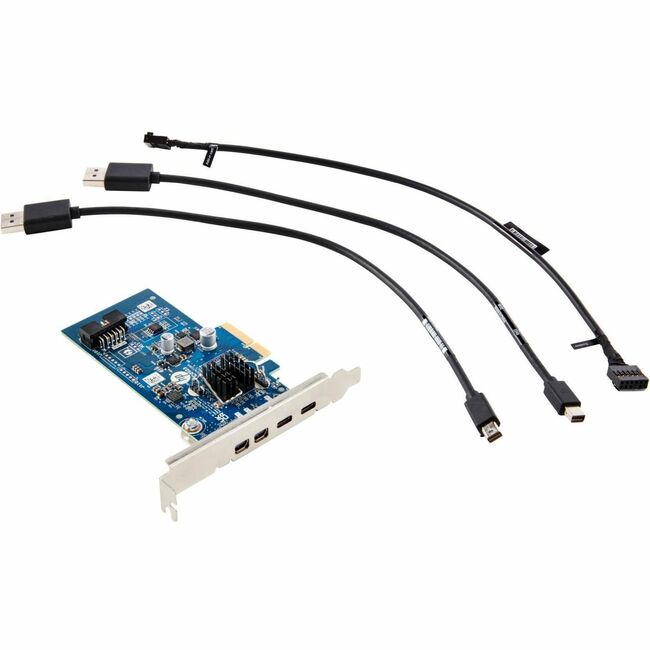

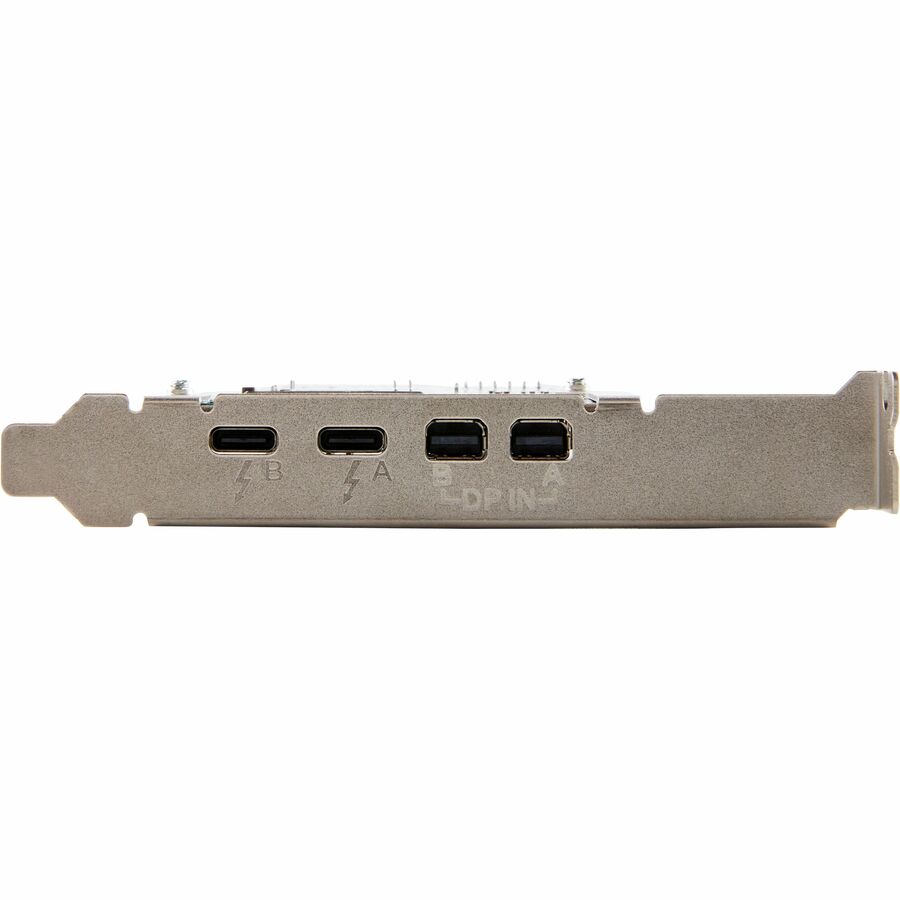

This Thunderbolt™ 4 card enables fast data transfer from external peripherals such as external NVMe drives, high end network modules and driving high resolution displays. It features two Thunderbolt™ 4 output ports and two mini-DisplayPort™ input ports.
Thunderbolt™ 4 technology is a high-speed, multi- protocol I/O that provides performance over USB-C® I/O technologies with up to 40Gbps transfer speeds*. It provides flexibility and simplicity by supporting data (PCIe and USB), video (DisplayPort™), and power (up to 15W per port) over a single cable connection that can daisy-chain up to five devices.
The HP Dual TBT4 PCIe x4 Low Profile Card is compatible with Thunderbolt™ 4 devices and backward compatible with your Thunderbolt™ 3, USB4, USB3 and USB2 devices.
Performance
The HP Dual TBT4 PCIe x4 Low Profile Card performs with data rates of up to 40 Gb/s.
Key Benefits
Data transfer between digital electronic devices that support the Thunderbolt™ 4 standards.
- Up to 40Gbps, dual channel data transfer
- Data & Video on single cable with support for USB, PCI Express and DisplayPort™
- Daisy chain up to five devices
- Compatible with existing DisplayPort™ devices
- Low latency with highly accurate time synchronization
- Uses native PCIe, USB, and DisplayPort™ protocol software drivers
- Up to 15W of power over USB-C® for bus-powered devices
| General Information | |
| Manufacturer | HP Inc. |
| Manufacturer Part Number | 340L1AA |
| Manufacturer Website Address | http://www.hp.com |
| Brand Name | HP |
| Product Name | Dual TBT4 PCIe x4 Low Profile Card |
| Product Type | Thunderbolt Adapter |
| Technical Information | |
| Host Interface | PCI Express x4 |
| Features | Thunderbolt 3 Compatible |
| Features | Thunderbolt 4 Compatible |
| Media & Performance | |
| Data Transfer Rate | 5 GB/s |
| Software | |
| Operating System Supported | Windows 10 Pro x64 |
| Operating System Supported | Windows 11 Pro x64 |
| Physical Characteristics | |
| Height | 4.8" |
| Width | 1" |
| Depth | 5.7" |
| Weight (Approximate) | 3.42 oz |
| Miscellaneous | |
| Application/Usage | Workstation |
