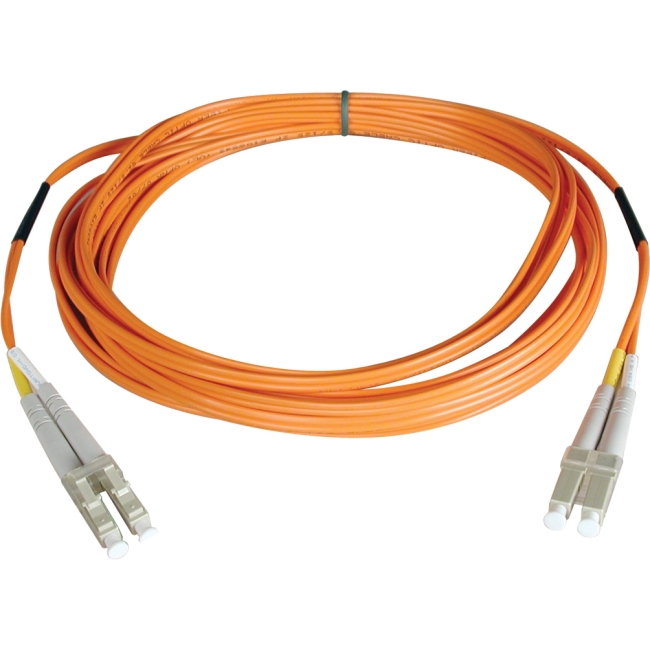

N520-152M Tripp Lite Duplex Multimode 50/125 Fiber Patch Cable

Tripp Lite's 152-meter ( 500ft ) multimode duplex Fibre Channel optic LC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 1, 2, 3, 5, 10, 15, 20, 25, 30, 50, and 100 meter lengths. Enter "N520-" in the search field to bring up all lengths. For LC-SC cables, search "N516-" , and for SC-SC, search "N506-". Tripp Lite warrants this product to be free from defects in materials and workmanship for life.

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	N520-152M
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	N520-152M
Product Name	Premium Fibre Channel Patch Cable
Product Type	Network Cable
Technical Information
Cable Type	Fiber Optic
Cable Characteristic	Patch Cable
Fiber Optic Cable Core/Cladding Specification	50/125 µm
Cable Length	498 ft
Connector Type on First End	LC - Male
Connector on First End Details	2 x LC - Male
Connector Type on Second End	LC - Male
Connector on Second End Details	2 x LC - Male
Physical Characteristics
Color Family	Orange
Product Color	Orange
Jacket Material	Polyvinyl Chloride (PVC)
Shipping Height	4.60"
Shipping Width	10.20"
Shipping Weight (Approximate)	3.30 lb
Miscellaneous
Package Contents	Premium Fibre Channel Patch Cable 152M Duplex MMF Cable LC/LC 50/125 Fiber
Additional Information	Color coded / labeled connectors Fiber type: all glass graded index Core diameter: two 50+/-3 microns CLAD diameter: 125+/-2 microns Primary coating diameter: 245+/-15 microns Primary coating material: acrylate Secondary coating diameter: 900+/-50 microns Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum Numeric apeture: .275 nominal Proof test level: 100,000 PSI Insertion loss testing performed on every connector (0.2db typical) and provided with cable Beveled edge on ends of glass makes insertion of plug a breeze
Country of Origin	China
Warranty
Limited Warranty	Lifetime

General Information
Mode	-
Port Type	-
Application	-
Connector End A	-
Connector End B	-
Cable Type	-
Fiber Diameter	-
Length	-
Number of Fibers	-
Ferrule Material	-

Tripp Lite's 152-meter ( 500ft ) multimode duplex Fibre Channel optic LC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 1, 2, 3, 5, 10, 15, 20, 25, 30, 50, and 100 meter lengths. Enter "N520-" in the search field to bring up all lengths. For LC-SC cables, search "N516-", and for SC-SC, search "N506-". Tripp Lite warrants this product to be free from defects in materials and workmanship for life.

Product Type:	Network Cable
Cable Type:	Fiber Optic
Cable Characteristic:	Patch Cable
Core/Cladding Diameter:	50/125 µm
Cable Length:	498 ft
Connector on First End:	2 x LC Male
Connector on Second End:	2 x LC Male
Jacket:	PVC
Color:	Orange
Shipping Dimensions :	6.0" Height x 11.5" Width x 11.5" Depth
Package Contents:	Premium Fibre Channel Patch Cable 152M Duplex MMF Cable LC/LC 50/125 Fiber
Additional Information:	Color coded / labeled connectors Fiber type: all glass graded index Core diameter: two 50+/-3 microns CLAD diameter: 125+/-2 microns Primary coating diameter: 245+/-15 microns Primary coating material: acrylate Secondary coating diameter: 900+/-50 microns Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum Numeric apeture: .275 nominal Proof test level: 100,000 PSI Insertion loss testing performed on every connector (0.2db typical) and provided with cable Beveled edge on ends of glass makes insertion of plug a breeze
