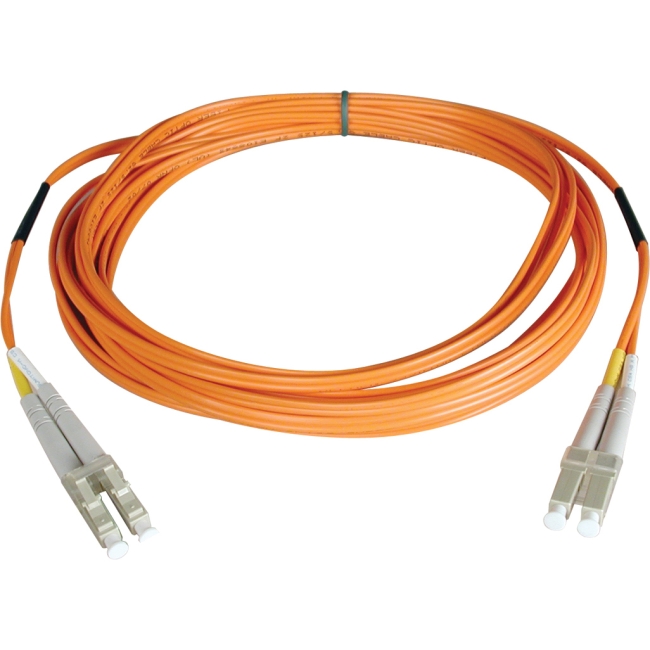

N520-100M Tripp Lite Duplex Multimode 50/125 Fiber Patch Cable

Tripp Lite's 100-meter multimode duplex Fibre Channel optic LC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 1, 2, 3, 5, 10, 15, 20, 25, 30, and 50 meter lengths. Enter "N520-" in the search field to bring up all lengths. For LC-SC cables, search "N516-" , and for SC-SC, search "N506-". Tripp Lite warrants this product to be free from defects in materials and workmanship for life.

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	N520100M
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	N520-100M
Product Name	Fiber Optic Duplex Patch Cable
Product Type	Network Cable
Technical Information
Cable Type	Fiber Optic
Cable Characteristic	Patch Cable
Fiber Optic Cable Core/Cladding Specification	50/125 µm
Cable Length	328.10 ft
Connector Type on First End	LC - Male
Connector on First End Details	2 x LC - Male
Connector Type on Second End	LC - Male
Connector on Second End Details	2 x LC - Male
Physical Characteristics
Color Family	Orange
Product Color	Orange
Jacket Material	Polyvinyl Chloride (PVC)
Shipping Height	12"
Shipping Width	12"
Shipping Weight (Approximate)	3.50 lb
Miscellaneous
Package Contents	Fiber Optic Duplex Patch Cable 100M Duplex MMF Cable LC/LC 50/125 Fiber
Additional Information	Use on fiber and fibre channel installations Backward compatible with 62.5 micron fiber Built-in headroom for future applications Number of fibers: 2 Fiber type: all glass graded index Primary coating diameter: 245+/-15 microns Primary coating material: acrylate Secondary coating diameter: 900+/-50 microns Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum Numeric apeture: .275 nominal Proof test level: 100,000 PSI Insertion loss testing performed on every connector (0.2db typical) and provided with cable Beveled edge on ends of glass makes insertion of plug a breeze
Certifications & Standards	FDDI OFNR
Country of Origin	China
Warranty
Limited Warranty	Lifetime

General Information
Mode	-
Port Type	-
Application	-
Connector End A	-
Connector End B	-
Cable Type	-
Fiber Diameter	-
Length	-
Number of Fibers	-
Ferrule Material	-

Tripp Lite's 100-meter multimode duplex fiber optic LC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. Duplex multimode fiber is most commonly used in fiber and fiber channel applications. It is backward compatible with 62.5-micron fiber and built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks. Tripp Lite warrants this product to be free from defects in materials and workmanship for life.

Network Cable Type	Patch cable
Technology	Fiber optic
Type of Fiber Optics	Multimode
Jacket Material	PVC
Fiber Qty	2
Core / Cladding Diameter	50 / 125 micron
Length	330 ft
Color	Orange
Connectivity
Connector(s)	2 x LC multi-mode - male
Connector(s) (Other Side)	2 x LC multi-mode - male
Manufacturer Warranty
Service & Support	Limited lifetime warranty
